With growing up in Multi-Touch technology, the PPC-1581 features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, The Manufacturer's iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.
Setting up a Panel PC can be a Puzzling experience. However,when purchased with an Operating System and Compact Flash, the VOX-150 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-150 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
PEX-090T is an ultra-compact platform for the present demanding embedded and productive applications.
Enclosed PPCs
| Product # | Video/ Touchscreen | CPU | Memory | Serial Ports | Disk Interfaces | Bus | Dims. | Other I/O |
|---|---|---|---|---|---|---|---|---|
HMI-043T |
4.3 " TFT, Color WQVGA LCD, 480 x 272, 4-Wire Analog Resistive | DMP Vortex86EXm 400 MHz | Up to 256 MB DDR3 RAM Onboard | 1x RS-232, 485 or CAN | SD Slot or up to 2GB eMMC NAND Flash Memory Onboard | N/A | 4.58" ×3.71" ×1.35" | Ethernet, POE, HF RFID/NFC, 1x USB 2.0 |
PDX-057T |
5.7" TFT Color LCD, 640 x 480, Analog Resistive | Vortex86DX Fanless CPU, 1 GHz | Up to 512MB RAM | 1x RS-232/422/485, 2x USB 2.0 | 1 IDE, Compact Flash Micro SD | Mini PCI | 6" ×4.4" ×1.2" | RDC 6040 10/100 Base-T Ethernet2x USB 2.0 |
PMX-057T |
5.7" TFT Color LCD, 640 x 480, Analog Resistive | Vortex86MX+ Fanless CPU 1GHz | Up to 1GB DDR2 onboard | 1x RS-232/422/485, 2x USB 2.0 1x RS232/422/485 | 1 IDE, Compact Flash Micro SD | Mini PCI | 6" ×4.4" ×1.2" | 10/100 Base-T Ethernet, 2x USB 2.0, Audio |
PDX2-057T |
5.7" TFT LCD with Resistive Touch Screen | DM&P Vortex86DX2 - 933MHz | Up to 2GB DDR2 Onboard | 1x RS-232/422/485, 2x USB 2.0 | CF Card or Micro SD slot | 5.98" ×4.41" ×1.3" | 1x HD Audio-Realtek ALC262 CODEC, 1x 10/100 Ethernet Integrated, 2x USB 2.0 Ports | |
PEX-057T |
5.7" VGA TFT LCD with Resistive Touch Screen | DM&P Vortex 86EX Onboard 400 MHz | 1 GB DDR3 Onboard | 1x RS-232/422/485 & 2x USB 2.0 | MicroSD Slot | 5.98" ×4.41" ×1.3" | 1x HD Audio-Realtek ALC262 CODEC, 1x 10/100 Ethernet Integrated, 2x USB 2.0 Ports | |
PDX3-057T |
5.7" VGA TFT LCD with Resistive Touch Screen | DM&P Vortex86DX3-Fanless Onboard 1GHz | Up to 2GB DDR3 Onboard | 1x RS-232/422/485, 2x USB 2.0 | CF Card or Micro SD slot | 5.98" ×4.41" ×1.3" | 1x 10/100 Ethernet Integrated, 2x USB 2.0 Ports, Audio HD Audio-Realtek ALC262 CODEC | |
PPC-080T |
8" TFT Color LCD, 800 x 600, Analog Resistive | Intel Processor N2807 (optional N2600) | 2 GB SODIMM DDR3L | 3 x RS232*, 1x USB3.0, 3x USB 2.0 | SATA SSD Hard Drive | 2x Mini PCI-E | 8.5" ×7.2" ×2.2" | 2 x GBit RJ45 ports |
PPC-080E |
8" LCD with Projected Capacitive 10-Point Multitouch | Allwinner A40 Cortex™ QuadCore Processor | 1GB DDR3 | 1x serial, 2x USB2, 1x USB OTG | 8GB NAND flash, SATA | Mini-PCIe expansion | 7.91" ×6.32" ×1.4" | Gigabit LAN, POE, Wi-Fi 802.11 b,g,n , HDMI, GPS, Bluetooth |

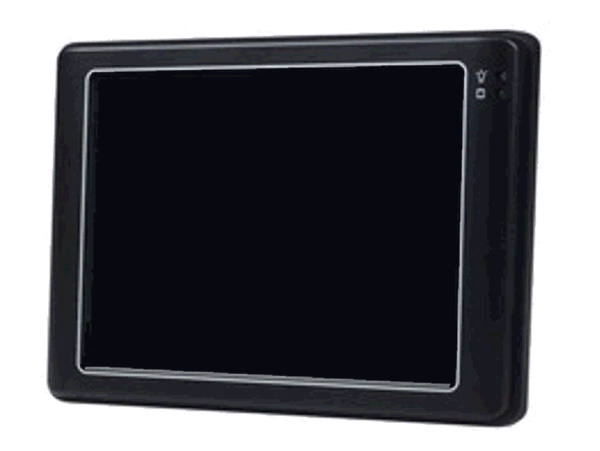

PDX-089T |
8.9" TFT Color LCD, 1024 x 600, Analog Resistive | Vortex86DX CPU | 512 MB DDR2 on-board | 1x RS-232/422/485, 2x USB 2.0 | 1 IDE, Compact Flash Micro SD | Mini PCI | 9.3" ×5.7146" ×1.3" | 10/100 Base-T Ethernet, 2x USB 2.0 |
PMX-089T |
8.9" TFT Color LCD, 1024 x 600, Analog Resistive | Vortex86MX+ Fanless CPU 1GHz | Up to 1GB DDR2 onboard | 1x RS232/422/485, 2x USB2.0 | 1 IDE, Compact Flash Micro SD | Mini PCI | 9.3" ×5.7" ×1.4" | 10/100 Base-T Ethernet |
PMX-090T |
9" TFT Color LCD, 1024 x 600, Analog Resistive | Vortex86MX+, 1 GHz | Up to 1GB DDR2 onboard | 1x RS-232/422/485, 2x USB 2.0 | 1 IDE, Compact Flash Micro SD | Mini PC | 9.31" ×5.75" ×1.38" | 10/100 Base-T Ethernet2x USB 2.0 |
|
PEX-090T |
9" VGA TFT LCD Analog Resistive Touch Screen | DM&P Vortex 86EX Onboard 400 MHz | 1 GB DDR3 Onboard | 1x RS-232/422/485 & 2x USB 2.0 | MicroSD Slot | 9.31" ×5.75" ×1.38" | 1x HD Audio-Realtek ALC262 CODEC, 1x 10/100 Ethernet Integrated, 2x USB 2.0 Ports | |
PDX2-090T |
9" VGA TFT LCD Analog Resistive Touch Screen | DM&P Vortex86DX2 933 MHz | Up to 2GB DDR2 Onboard | 1x RS-232/422/485, 2x USB 2.0 | CF Card or Micro SD slot | 9.31" ×5.75" ×1.38" | 1x 10/100 Ethernet Integrated, 2x USB 2.0 Ports, HD Audio-Realtek ALC262 CODEC | |
PDX3-090T |
9" VGA TFT LCD Analog Resistive Touch Screen | DM&P Vortex86DX3-Fanless Onboard 1GHz | Up to 2GB DDR3 Onboard | 1x RS-232/422/485, 2x USB 2.0 | CF Card & Micro SD slot | 9.31" ×5.75" ×1.38" | 1x 10/100 Ethernet Integrated, 2x USB 2.0 Ports, Audio HD Audio-Realtek ALC262 CODEC | |
PPC-090T |
9" WSVGA TFT LCD, 1024 x 600 | Vortex86DX2, 933 MHz | Up to 2GB DDR2 Onboard | 2x RS-232 / 422 / 485 | SATA Slim DOM | 9.68" ×6.26" ×1.76" | Integrated 10/100Mbps Ethernet, Giga Ethernet, Wi-Fi (Optional). 3x USB Ports (Version 2.0) , POE+ | |
PPC-104T |
10" TFT Color LCD, 800 x 600, Analog Resistive | DM&P Vortex86DX2 933 MHz or Vortex86DX3 1GHZ | up to 2 GB DDR3L onboard | 2 x RS232/422/485, 3x USB 2.0 | Compact Flash or SATA Slim SSD | Internal USB | 10.76" ×8.65" ×1.93" | 10/100 Mbps LAN (POE optional) / 10/100/1000 GbE (optional), 16x GPIO (optional), up to 7x RS232 |
UTC-510D |
10.1" 1280x800 Projected Capacitive. Glass Panel | Intel Bay Trail Atom / Celeron | Up to 8GB DDR3L SODIMM | 2x COM, 2x USB2, 1x USB3 | SATA & mSATA | 1x MiniPCIe, 1x mSATA | 10.45" ×7.18" ×1.56" | 1x GbE, 1xGbE with POE (optional) |
PPC-101E |
10.1" LCD with Projected Capacitive 10-Point Multitouch | Allwinner A40 Cortex™ QuadCore Processor | Up to 2GB DDR3 RAM onboard | 1x serial, 2x USB2, 1x USB OTG | 8GB NAND flash, SATA | Mini-PCIe expansion | 10.87" ×7.56" ×1.34" | Gigabit LAN, POE, Wi-Fi 802.11 b,g,n , HDMI, GPS, Bluetooth |
PPC-6712 |
11.6" LED Backlight, WXGA 1366x768, 4-Wire Analog Resistive Touch | Intel Celeron J1900 2.42 GHz | Up to 8GB DDR3L SODIMM | 1x COM, 1x USB 3.0, 2x USB 2.0 header | 2.5" SATA, mSATA | 1x half-size mini-PCIe &1x full size mini-PCIe x1 slot | 11.25" ×7.25" ×2.5" | Dual Gig-Lan, Audio line out, VGA, HDMI, |
PPC-3120S |
12.1" TFT XGA LED 5 wire- Resistive Touch Screen | Intel® Celeron N2930 1.83 GHz | up to 8 GB DDR3 SODIMM | 2x Serial, 1x USB3, 2x USB2 | 1x 2.5 Inch SATA HDD Bay (Internal), mSATA | 1x MINI PCI-e (Standard), 1x PCI / 1x PCI-e through riser (Optional) | 12.5" ×9.7" ×1.9" | 2x GbE, 2x USB 2.0 Ports, Audio, VGA |
PPC-IP15 |
15'' Color TFT LCD 1024 x 768 Analog resistive, Capacitive, and Infrared | Embedded Intel® ULV Celeron® M, 1 GHz | Up to 2 GB DDR2 SDRAM | 3x RS-232, 1x RS-232/422/485 | 80GB HD CompactFlash (optional) | One each Mini-PCI, PCI, and PCIe Socket | 9.2" ×7.2" ×1.65" | 10/100 Base-T Ethernet interface4x USB 2.0 (2 internal, 2 external) |
PPC-150T |
15" XGA TFT LCD, 1024x768, Analog Resistive or P-Capacitive | Vortex86DX2 or Vortex86DX3 933 MHz | Up to 2GB DDR2 onboard | 2x RS-232/422/485, 2x USB 2.0 | Compact Flash or SATA Slim DOM | 13.97" ×8.22" ×2.16" | 10/100 LAN, 10/100/1000 Gig LAN (optional), POE(Optional) 3x USB 2 Ports, 5x serial ports optional | |
|
PPC-1581 |
15.6 WXGA TFT LED LCD Multi-Touch Projected Capacitive Panel | Intel 4th Generation Core i3-4010U 1.7GHz | 4GB DDR3L SODIMM | 1x RS-232/422/485, 1x RS-232 | 2.5 Inch SATA SSD Slot, 1x CFast Slot, 1x mSATA (via Mini PCIe slot, can't be used simultaneously with iDoor) | 1x Full-size Mini PCI-E | 16.52" ×10.59" ×2.23" | 2x Gigabit LAN, 2x USB 3.0, 1x HDMI, Audio Line out, USB 2.0 x 1 (optional) Audio MIC x 1 (optional) |
PPC-2155 |
15.6” TFT LCD LED Expandable HMI with 5-Wireless Resistive Touch or P-CAP | Intel® Celeron® J1900 or N2807 | Up to 8GB DDR3L SODIMM | 1x RS-232/422/485 | 1x 2.5 Inch SATA 2.5 HDD Bay, 1x CFast™ | 2x Mini card (Full Size), OMNI expansion | 16.5" ×10.4" ×2.4" | 2x Gigabit LAN, 1x USB 3.0 Port, 3x USB 2.0 Ports, 2x Mini card (Full Size), 1x Audio Mic-in Line-out, 1x HDMI, 1x VGA |
PPC-1154 |
15” XGA HMI 5-wire Resistive Touch Panel PC | Intel® Celeron® J1900 ,2 GHz / N2807, 1.58 GHz | Up to 8GB DDR3L SODIMM | 2x RS-485/422/232, 2x RS-232 | 1x SATA 2.5 Inch HDD Bay / CFast Socket | 2x Mini card (Full Size / Half Size) | 16.02" ×12.22" ×2.3" | 2x Gigabit LAN, 1x USB 3.0 Port, 3x USB 2.0 Ports, 1x VGA |
PPC-2176 |
17” TFT LCD Interface with 5-wire Analog Resistive Touch Screen | Intel® Celeron® 827E or Core™ i7-2610UE 1.5 GHz | Up to 8 GB DDR3 SODIMM | 4x RS-232 | 1x 2.5 Inch SATA Hard Disk Drive/ CFast™ Slot (Internal) | 1x PCIe Mini-Card | 16.54" ×14.09" ×3.82" | 2x Gigabit LAN, 6x USB 2.0 Ports, 1x VGA, Audio |
PPC-215E |
21.5" LCD with Projected Capacitive 10-Point Multitouch | Allwinner A40 Cortex™ QuadCore Processor | up to 2 GB DDR3 | 1x serial, 2x USB2, 1x USB OTG | 8GB NAND flash, SATA | Mini-PCIe expansion | 20.79" ×12.76" ×165" | Gigabit LAN, POE, Wi-Fi 802.11 b,g,n , HDMI, GPS, Bluetooth |
PPC-215T |
21.5" LCD with Projected Capacitive 10-Point Multitouch, display port | Intel® Celeron™ QuadCore J1900 | Up to 4GB DDR3 SODIMM | 4x COM, 1x USB 3.0, 3x USB 2.0 ports | 64GB SATA SSD | 2x Mini-PCIe | 20.79" ×12.76" ×2.28" | 2x Gigabit LAN, POE, Wi-Fi 802.11 a,b,g,n , HDMI |
