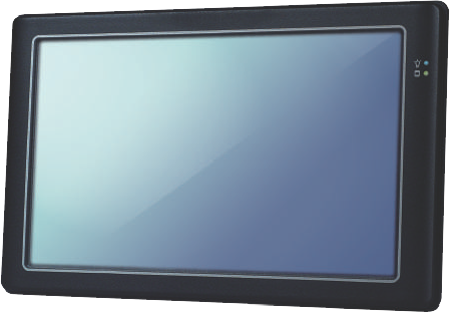

PDX2-090T
- 9” VGA TFT LCD with Analog Resistive Touch Screen
- DM&P Vortex86DX2 Onboard 933MHz
- 1GB/2GB DDR2 System Memory Onboard
- 1G / 2G Flash Memory onboard (Optional)
- Fanless & Low Power Consumption
- Metal Chassis with Compact Design
Receive consultation or quotes about this product from our sales staff.
Request a quotePDX2-090T is an ultra-compact platform for the present demanding embedded and productive applications. It has new DM&P Vortex86 DX2 onboard CPU which consumes only minimum power requirement when running at 933 MHz, and 1GB / 2GB DDR2 Onboard memory provides faster data transfer rate. By using 9" VGA TFT LCD analog resistive touch screen, PDX2-090T becomes the perfect choice for a limited budget.
Features
- 9" VGA TFT LCD Analog Resistive Touch Screen
- CPU: DM&P Vortex86DX2 933 MHz
- Cache L1: 16KB I-Cache, 16KB D-Cache / L2: 256KB Cache
- Memory: 1GB / 2GB DDR2 Memory Onboard
- LCD Resolution: (Pixel) 1024(W) x 600( H)
- LCD Colors: 262,144
- LCD View Angle: Vertical 120° / Horizontal 140°
- LCD Brightness: 300 cd/m2
- LCD Backlight Life: 18,000 hrs
- LCD Contrast Ratio: 500 : 1
- 2x Watchdog Timer: Software Programmable from 30.5u to 512 Seconds
- 1x RS-232/422/485 Serial Ports
- 2x USB 2.0 Ports
- 1x 10/100 Ethernet Integrated
- HD Audio-Realtek ALC262 CODEC
- Internal Drives: CompactFlash Card slot, Micro SD slot or Flash Memory onboard (CF default, others Build to order Option)
- Expansion Slot: None
- Power Requirement: Single Voltage +5VDC ( 5A )
- Multi Voltage: +8~+35VDC ( 8A )
- Power Consumption: 20W
- Operating Temperature: 0 ~ +50° C (32 ~ +122° F) / -20 ~ +60° C (-4 ~ +140° F) Optional & CPU down to 800MHz (-I)
- Storage Temperature: -30 ~ +70° C (14 ~ +158° F)
- Operating Humidity: 0% ~ 90% Relative Humidity, Non-Condensing
- Operating System: Linux, Win CE, Win XP, Win 7, Windows Embedded Standard
- Dimensions: 236.6x146x35mm (9.31x5.75x1.38 inches)
- Weight: 760g
- Certificate: CE / FCC / VCCI / Vibration / Shock / IP65 (Front Panel)
Overview
PDX2-090T is an ultra-compact platform for the present demanding embedded and productive applications. It has new DM&P Vortex86 DX2 onboard CPU which consumes only minimum power requirement when running at 933 MHz, and 1GB / 2GB DDR2 Onboard memory provides faster data transfer rate. By using 9" VGA TFT LCD analog resistive touch screen, PDX2-090T becomes the perfect choice for a limited budget. In additional, the integrated 10/100M Ethernet port supplies the communication capability which makes PDX2-090T can be more widely used when running with Linux, Windows Embedded environments to become the perfect solution for system integration.
| Manuals | |
|---|---|
| PDX2-090T_UM_v1r1A.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PDX2-090T-V1.2.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | DM&P Vortex86DX2 Onboard |
| Clock Speed | 933 MHz |
| Processor Misc. | Cache L1: 16KB I-Cache, 16KB D-Cache / L2: 256KB Cache Fanless & Low Power Consumption Metal Chassis with Compact Design |
| Memory | |
|---|---|
| RAM | up to 2GB DDR2 Onboard |
| RAM Type | DDR2 Onboard |
| Primary Flash | 1G / 2G Flash Memory onboard (Optional) |
| Primary IO | |
|---|---|
| Disk Interface | Compact Flash Type I / II slot or Micro SD slot (build Option) |
| Audio | HD Audio-Realtek ALC262 CODEC |
| Ethernet | 1x 10/100 Ethernet Integrated |
| USB | 2x USB 2.0 Ports |
| Serial Ports | 1x RS-232/422/485 |
| Primary I/O Misc. | 2x Watchdog Timer: Software Programmable from 30.5u to 512 Seconds |
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Touch | Analog Resistive Touch Screen |
| Display | |
|---|---|
| Display Type | 9" VGA TFT LCD Analog Resistive Touch Screen |
| Resolution | 1024 × 600 px |
| LCD Colors | 262,144 |
| Viewing Angle | 120° Vertical & 140° Horizontal |
| Luminance | 300 cd/m2 |
| LCD Misc. | Backlight Life: 18,000 hrs Contrast Ratio: 500 : 1 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7 |
| Misc. | Certificate: CE / FCC / VCCI / Vibration / Shock / IP65 (Front Panel) |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 9.31" ×5.75" ×1.38" (236mm × 146mm × 35mm) |
| Weight | 760 g (1 lbs) |
| Power Requirements | |
|---|---|
| Power Misc. | Power Requirement: Single Voltage +5VDC ( PDX2-090T-5A ) Multi Voltage: +8~+35VDC ( PDX2-090T-8A ) Power Consumption: 20W |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 50 C (122 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Operating Temperature: 0 ~ +50° C (32 ~ +122∘F) / -20~+60° C (-4 ~ +140° F) Optional & CPU down to 800MHz (-I) Storage Temperature: -30 ~ +70° C (14 ~ +158° F) Operating Humidity: 0% ~ 90% Relative Humidity, Non-Condensing |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PD2-090T-5A | PDX2-090T-5A, Vortex86DX2 933 MHz, 1GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 5V | $470.00 |
| PD2-090T-5A-2G | PDX2-090T-5A-2G, Vortex86DX2 933 MHz, 2GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 5V | $486.00 |
| PD2-090T-8A | PDx2-090T-8A, Vortex86DX2 933 MHz, 1GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 8~35V | $470.00 |
| PD2-090T-8A-2G | PDX2-090T-8A-2G, Vortex86DX2 933 MHz, 2GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 8~35V | $486.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the PDX2-090T with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FLS-00048-R | 4GB CompactFlash Card Standard (-25ºC to 85ºC) | Call |
| PER-USB-00006-R | USB WLAN WiFi Module Internal | $31.00 |
| Operating Systems | ||
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $125.00 |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $125.00 |
| SL050-XON-x | EMAC OE Linux 5.0 for x86 | Free |
