PPC-6712


  • Slim Fanless Design with Intel Celeron J1900 Processor
  • Built-in Standard 802.3at Power over Ethernet (PoE+)
  • Intel Gigabit Ethernet ports
  • 11.6” high brightness touch screen at 1366x 768 resolution
  • Front Facing 1.3 Megapixel Camera, Bezel Mounted Stereo Speakers
  • VGA or HDMI dual independent display

Receive consultation or quotes about this product from our sales staff.

Request a quote

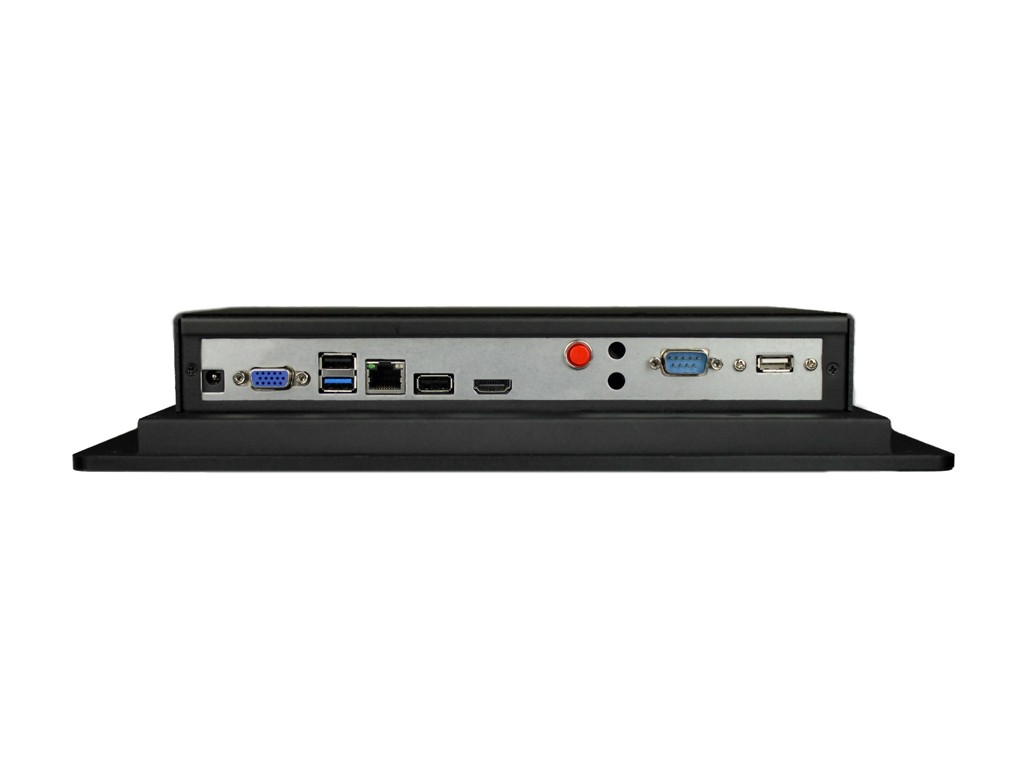

The Fanless Intel Celeron Panel PC with 11.6” Touch Screen, Built-in Power over Ethernet (PoE+)  and Dual Gigabit Ethernet Panel PC, the PPC-6712POE is equipped with the efficient Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) . The 11.6 inch widescreen (16:9) carries a 1.3 megapixel camera located on top of the monitor and its slim design with VESA mounts allow for flexible installation in  compact environments. Providing high I/O flexibility, the bottom panel includes 1 VGA, RJ45/POE, 1 USB 3.0, 2 USB 2.0, 1 Audio out, and 1 DC Jack.

Features


  • Slim Fanless Design with Intel Celeron J1900 Processor
  • Built-in Standard 802.3at Power over Ethernet (PoE+)
  • Intel Gigabit Ethernet ports
  • 11.6” high brightness touch screen at 1366x 768 resolution
  • Front Facing 1.3 Megapixel Camera, Bezel Mounted Stereo Speakers
  • Serial ports and GPIO expansion option
  • VGA or HDMI dual independent display

Overview

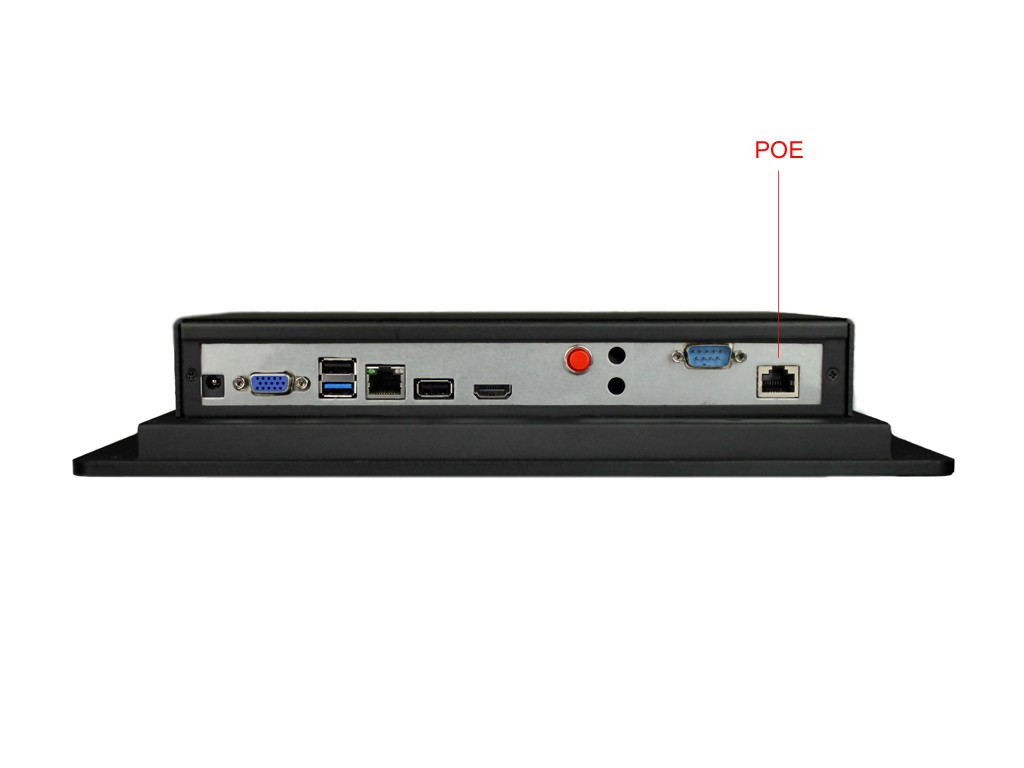

The Fanless Intel Celeron Panel PC with 11.6” Touch Screen, Built-in Power over Ethernet (PoE+)  and Dual Gigabit Ethernet Panel PC, the PPC-6712POE is equipped with the efficient Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) . The 11.6 inch widescreen (16:9) carries a 1.3 megapixel camera located on top of the monitor and its slim design with VESA mounts allow for flexible installation in  compact environments. Providing high I/O flexibility, the bottom panel includes 1 VGA, RJ45/POE, 1 USB 3.0, 2 USB 2.0, 1 Audio out, and 1 DC Jack. Unique for its serial connector on the bottom panel, the PPC-6712POE allows for home automation control and automatic control of peripheral devices suitable for applications from home theaters to digital signage from it’s Power-over-Ethernet port. The PPC-6712POE supports Windows 7/Embedded/POS and Linux operating systems and can be further customized for OEM orders.

Market Segments:

  • Digital Signage Solutions
  • Retail (POS & Mobility & Digital Signage)


Sample Application locations:

  • Indoor
  • Industrial
  • Temperature
  • Environment

Specifications


Processor
CPU
Intel Celeron J1900
Clock Speed
2.42 GHz
Memory
RAM
8 GB
RAM Type
2x DDR3L SODIMM Modules 1333
Primary Flash
1x 2.5 Inch SATA HDD & 1x mSATA
Secondary Flash
1x half size mSATA
BIOS/ Bootloader
AMI EFI
Primary IO
GPIO
8x GPIO
Disk Interface
SATA
Audio
1x Audio Line out
Video Out
VGA and HDMI
Ethernet
1x GbE Intel I211 1x GbE via POE module
USB
1x USB3.0, 2x USB2.0 header
Serial Ports
1x RS-232/422/485 internal header (non-POE version)
Secondary IO
Touch
4-wire Resistive
Display
Display Type
11.6 LED backlight
Resolution
1366 × 768 px
LCD Colors
16.2M
Luminance
350 cd/m2
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
11.25" ×7.25" ×2.5" (285mm × 184mm × 63mm)
Power Requirements
Voltage
12 V
Power Misc.
  • RJ45, 802.3at Power over Ethernet (PoE+)
  • 12V DC 2.5mm power jack
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
