PPC-3120S TFT XGA 12.1" Touch


  • 12.1" TFT XGA LCD 5 wire- Resistive Touch Screen
  • Embedded Intel® Celeron™ processor N2930 CPU
  • up to 8 GB DDR3 SODIMM

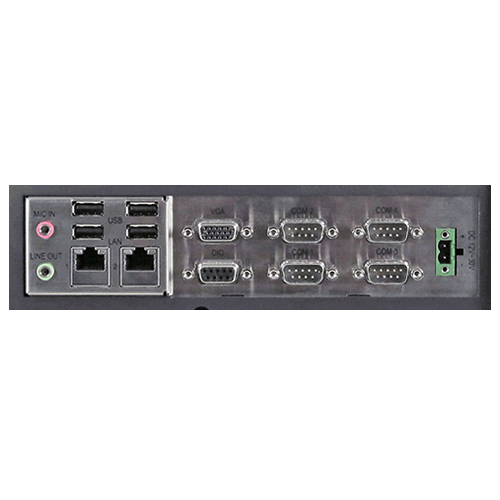

  • 2x Serial Ports
  • 1x USB 3.0 & 2x USB 2.0 Ports
  • 2x Gigabit Ethernet

The PPC-3100/3120 is an Intel Atom processor based panel PC with a 10.4" / 12.1" color LCD display. The powerful D2550 and Intel NM10 chipsets bring the most dynamic applications to life without sacrifices to any industrial reliability. The internal mini SATA card interface can serve as an alternative HDD solution for OS booting and the mini PCI interface can be used by many expansion cards (such as a wireless LAN card) to extend device mobility.In order to satisfy customers security concerns, PPC-3100/3120 also offers 2 Giga LAN configuration. What's more, 4 serial ports and 4 USB V2.0 ports give the PPC-3100/3120 advanced versatile applications.

Features


  • 12.1" TFT XGA LCD 5 wire- Resistive Touch Screen
  • IP65 compliant Front Panel
  • Embedded Intel® Celeron™ Quad Core processor N2930 at 1.83 GHz
  • up to 8 GB DDR3 1333 MHz SDRAM
  • 2x Serial Ports (1x RS-232/422/485, 1x RS232)
  • 1x USB 3.0 & 2x USB 2.0 Ports
  • 2x Gigabit Ethernet
  • 1x 2.5 Inch SATA HDD Bay (Internal), mSATA
  • 1x MINI PCI-e (Standard), 1x PCI / 1x PCI-e through riser (Optional)
  • 1x VGA port
  • 1x 8-Pin Programmable GPIO Port
  • 1x Line-out, 1x Mic-in, 2x (1x W speaker) Internal
  • Watchdog Timer
  • Display Type: 12.1" TFT LCD (LED Backlight)
  • Max. Resolution: 1024 x 768
  • Colors: 16.2M
  • Dot Size: 0.24 x 0.24mm
  • Viewing Angle: 80 (left), 80 (right), 70 (up), 70 (down)
  • Luminance: 600 cd/m2
  • Brightness Control: Yes
  • Backlight Lifetime: 50,000 hrs (typical)
  • Touch Screen Type: 5-wire Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: 81+/-3%
  • Controller: RS-232 interface
  • Software Driver Support: Windows 7, XP, CE
  • Durability Touches: 36 million
  • Power Requirements: DC 12 ~ 30 V
  • Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
  • Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
  • Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
  • Weight 3.3 kg (7.27 lb)
  • Dimensions: (W x H x D) 325 x 253.8 x 58.4 mm (12.79" x 10" x 2.3")

Overview


The PPC-3100/3120 is an Intel Atom processor based panel PC with a 10.4" / 12.1" color LCD display. The powerful D2550 and Intel NM10 chipsets bring the most dynamic applications to life without sacrifices to any industrial reliability. The internal mini SATA card interface can serve as an alternative HDD solution for OS booting and the mini PCI interface can be used by many expansion cards (such as a wireless LAN card) to extend device mobility.In order to satisfy customers security concerns, PPC-3100/3120 also offers 2 Giga LAN configuration. What's more, 4 serial ports and 4 USB V2.0 ports give the PPC-3100/3120 advanced versatile applications.

Manuals
Data Sheets

Specifications


Processor
CPU
Embedded Intel® Celeron® Quad Core N2930 Processor
Clock Speed
1.83 GHz
Memory
RAM
up to 8 GB DDR3 1333 SDRAM
Primary Flash
mSATA
Secondary Flash
1x 2.5 inch SATA HDD/SSD or DOM
BIOS/ Bootloader
AMI BIOS
Primary IO
GPIO
1x 8-Pin Programmable GPIO Port
Disk Interface
1x 2.5 Inch SATA HDD Bay (Internal) & mSATA
Audio
1x Line-out
Video Out
1x VGA port
Ethernet
2 x Gigabit Ethernet Intel i211
USB
1x USB 3.0 & 2x USB 2.0 Ports
Serial Ports
2x Serial Ports (1x RS-232/422/485, 1x RS232)
Secondary IO
Touch
12.1
Display
Display Type
12.1" TFT LCD (LED Backlight)
Resolution
1024 × 768 px
LCD Colors
16.2M
Viewing Angle
80 (left), 80 (right), 70 (up), 70 (down)
Luminance
500 cd/m2
LCD Misc.
  • Max. Resolution: 1024 x 768
  • Dot Size: 0.24 x 0.24mm
  • Brightness Control: Yes
  • Backlight Lifetime: 30,000 hrs (minimum)
  • Touch Screen Type: 5-wire Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: 81+/-3%
  • Controller: RS-232 interface
  • Durability Touches: 35 million Activations
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental


Dimensions
Size
12.5" ×9.7" ×1.9" (317mm × 246mm × 48mm)
Weight
2.1 kg
Dimensions Misc.

Dimensions: (W x H x D) 325 x 253.8 x 58.4 mm (12.79" x 10" x 2.3")

Power Requirements
Power Misc.

Power Requirements: DC 15~ 24 Vdc 18W

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Upper Operating Humidity
95%
Environmental Misc.

Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-3120-EXPE CIRCUIT MODULE PCI/PCIe Expansion Kit for PPC-3120 $95.00
PPC-3120S-RAE PPC-3120S-RAE, Celeron N2930 4x1.83Ghz, 12.1" XGA, Touch, 2x COM, 1x USB3, 2x USB2, 2x GbE, without memory $950.00

Peripheral Options


Product # Description Price
Peripherals
PER-3120-USBE CIRCUIT MODULE Kit to install internal USB dongle for PPC-3120 $10.00
