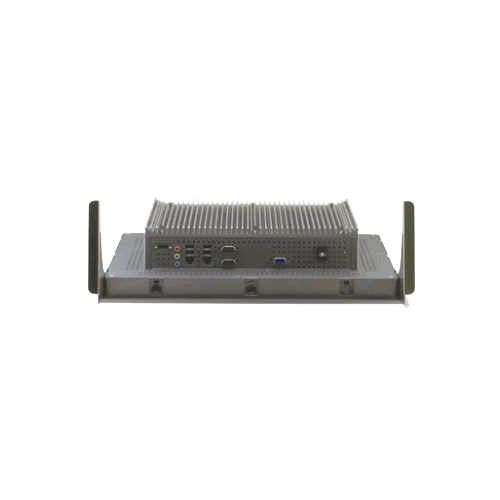

PPC-2176 Rugged 17" Panel PC


  • Intel® Celeron® 827E or Core™ i7-2610UE
  • 17” TFT LCD Interface
  • Up to 8 GB DDR3
  • 4x RS-232
  • 1x 2.5 Inch SATA Hard Disk Drive/ CFast™ Slot (Internal)
  • 6x USB 2.0 Ports (2x Easy Access Front USB Ports)
  • 2x Gigabit Ethernet

The PPC-2176 operator panel is an onboard Intel® Celeron® 827E 1.4GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 17" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the PPC-2176 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be Panel / VESA / Wallmounted.

Features


  • Intel® Celeron® 827E 1.4 GHz / Core™ i7-2610UE 1.5 GHz
  • 17” TFT LCD Interface
  • IP65 Aluminum Die Cast Front Bezel
  • Up to 8 GB DDR3
  • 4x RS-232
  • 1x 2.5 Inch SATA Hard Disk Drive/ CFast™ Slot (Internal)
  • 6x USB 2.0 Ports (2x Easy Access Front USB Ports)
  • 2x 10/100/1000 Base-T with RJ-45
  • 1x PCIe Mini-Card
  • 1x VGA
  • Audio with Line out, Line in and Microphone
  • 5-wire Analog Resistive Touch Screen (2048 x 2048)
  • Max. Resolution: 1280x1024
  • Max. Colors: 16.7M colors
  • Luminance: 350 cd/m2
  • Viewing Angle: 170°(H)/160°(V)
  • Back Light LED
  • Back Light MTBF 50,000 Hours
  • Light Transmission: > 80%
  • Life Times: 10 Million Touch
  • IP65 Aluminum Die Cast Front Bezel
  • Watchdog
  • AMI BIOS
  • Power Requirments: 9~30V DC input, w/3-pin terminal block: over-voltage protection; low-voltage protection; reverse protection, surge protection
  • Operating Temperature: -4°F ~ 140°F (-20°C ~ 60°C) w/o Airflow,
  • -4°F ~ 131°F (-20°C ~ 55°C) with Core™ i7, w/o Airflow
  • Operating Humidity: 5% to 95%@ 40oC, non-condensin
  • Dimensions: 16.54” x 14.09” x 3.82” (420mm x 358mm x 97mm)

Overview


The PPC-2176 operator panel is an onboard Intel® Celeron® 827E 1.4GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 17" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the PPC-2176 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be Panel / VESA / Wallmounted.

For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.

Manuals
AHP-2176 Manual.pdf
Data Sheets
AHP-2176.pdf

Specifications


Processor
CPU
Intel® Celeron® 827E 1.4 GHz / Core™ i7-2610UE 1.5 GHz
Clock Speed
1.5 GHz
Processor Misc.
  • Onboard Intel®
  • Celeron® 827E, 1.4 GHz
  • Core™ i7-2610UE, 1.5 GHz
Memory
RAM
Up to 8 GB DDR3 SODIMM
Primary Flash
CFAST
Secondary Flash
1x 2.5 inch SATA HDD/SSD or DOM
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
1x 2.5 Inch SATA Hard Disk Drive/ CFast™ Slot (Internal)
Audio
1x Line-out
Video Out
1x VGA
Ethernet
2x 10/100/1000 Base-T with RJ-45
USB
6x USB 2.0 Ports
Serial Ports
4x RS-232
Secondary IO
Touch
5-wire Analog Resistive Touch Screen (2048 x 2048)
Secondary I/O Misc.
Light Transmission: > 80%
Life Times: 10 Million Touch
Display
Display Type
17” TFT LCD Interface
Resolution
1280 × 1024 px
LCD Colors
16.7M
Viewing Angle
170°(H)/160°(V)
Luminance
350 cd/m2
LCD Misc.
Max. Resolution: 1280x1024
Back Light LED
Back Light MTBF (hours) 50,000
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental


Dimensions
Size
16.54" ×14.09" ×3.82" (420mm × 357mm × 97mm)
Weight
23.1 lb
Dimensions Misc.
16.54” x 14.09” x 3.82” (420mm x 358mm x 97mm)
Power Requirements
Power Misc.
9~30V DC input, w/3-pin terminal block: over-voltage protection; low-voltage protection; reverse protection, surge protection
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
Environmental Misc.
Operating Temperature
-4°F ~ 140°F (-20°C ~ 60°C) w/o Airflow
-4°F ~ 131°F (-20°C ~ 55°C) with Core™ i7, w/o Airflow
Operating Humidity
5% to 95%@ 40oC, non-condensin



Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-2176HTT-A1-1011 17" Rugged fanless.Touch Panel.Computer w/ Intel i7-2610UE.onboard 2G RAM $1968.67
PPC-2176HTT-A2-1011 17" Rugged Fanless.Touch Panel.Computer w/Intel 827E Onboard, 2G RAM $1521.69
