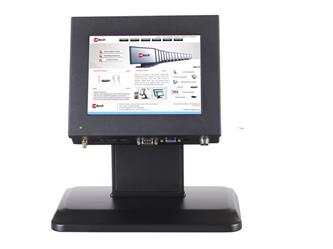

The PPC-080T-N2600 is a Intel Atom N2600 processor based Touch Panel PC. This 8" Panel PC is suitable for use in harsh work environments such as industrial automation or point of sale.
The Embedded Touchscreen Series is the cost effective solution for machine control, automation, IOT Monitoring and digital signage.
PPC-080T
- High quality, sturdy aluminum housing
- Out of the box working X86 architecture,Linux operating system pre-installed
- Consumer and industrial interfaces (USB 3.0, USB 2.0, RS232)
- Resistive Capacitive touchscreen options for productive working
- Audio amplifier with 2x2W speakers
21Ppi71132 The PPC-080T-N2600 is a Intel Atom N2600 processor based Touch Panel PC. This 8" Panel PC is suitable for use in harsh work environments such as industrial automation or point of sale. This unit has s a robust aluminum housing
Features
CPU: Intel® Celeron™ processor N2807 (optional N2600)
RAM: 2GB SODIMM DDR3L 1333 MHz (SODIMM accepts up to 4GB)
SSD: 64 GB
GPIO: 1x 8-bit digital I/O Connector
AUDIO: REALTEK 887 8 Channel High Definition Audio Codec, Audio Amplifier EUA 2012A, 5.1 Channel High Definition Audio Codec
Ethernet: 2 x GBit RJ45 Ports
USB: 1x USB 3.0, 3xUSB 2.0 external, 2x USB 2.0 internal headers.
Serial Ports: 3 x RS232 (on Capacitive model, 1x on Resistive)
1 x Display Port
2 x 10/100/1000MBIT RJ45 Ports
Audio In/ Audio Out
2 x W-LAN-Antenna Connectors
Integrated Wi-Fi (Intel 533AN)
Includes Antenna
Power On/Off Button
2 x 12v DC-in _ (1x Screwable)
Overview
The PPC-080T-N2600 is a Intel Atom N2600 processor based Touch Panel PC. This 8" Panel PC is suitable for use in harsh work environments such as industrial automation or point of sale. This unit has s a robust aluminum housing
| Manuals | |
|---|---|
| Touch PC Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PPC-080T_datasheet.pdf | Download (PDF) |
| PPC-080C_datasheet.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel Processor N2807 |
| Clock Speed | 2.16 GHz |
| Memory | |
|---|---|
| RAM Type | SODIMM DDR3L 1333 MHz |
| Primary Flash | 64GB SSD |
| Primary IO | |
|---|---|
| GPIO | 1x 8-bit digital I/O connector |
| Audio | REALTEK 887 8 Channel High Definition Audio Codec |
| Video Out | Display port |
| Ethernet | 2 x GBit RJ45 ports |
| Wireless | Integrated Wi-Fi (Intel 533AN) |
| USB | 1x USB 3.0, 3x USB 2.0 ports externa, 4x USB 2.0 ports internal |
| Serial Ports | 3 x RS232 (or 1x external on resistive touchscreen) |
| Primary I/O Misc. | 1 x 12V DC power connector Includes WiFi antenna. |
| Secondary IO | |
|---|---|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 8.5" ×7.2" ×2.2" (215mm × 182mm × 55mm) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | -10 C (14 F) |
| High Operating Temperature | 60 C (140 F) |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PPC-08T-2807 | 8" resistive touchscreen, Celeron N2807 2x 2.16GHz, 2GB RAM, 64GB SATA SSD, 1x RS232, 1x USB3, 3x USB2, 2x GbE LAN, Displayport, (-10°C ~ +60°C) | $675.00 |
