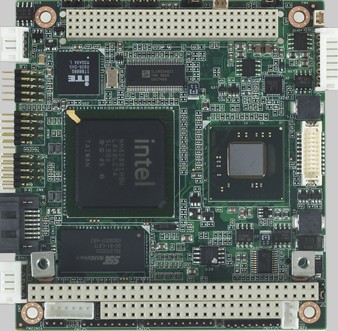

PCM-3362
15ppi511PP33 The PCM-3362 is centered on the low power Intel® Atom Single Core N450 processor which supports enhanced Intel “SpeedStep” technology and uses Intel’s N450 chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.
Features
- Embedded Intel® Atom Fanless N450 Processor
- Supports DDR2 memory
- Supports Dual Independet Display
- Supports Gig Ethernets
- Supports 3 Serial ports
- Supports 4 USB 2.0 ports
- Supports 1 SATA supporting 2 drives
- Supports PC/104+ Expansion
- Supports +5 V and +12 V power; or single +5 V power
- Wide Temperature Version Available
- OS can be booted from 2GB Resident on-board Flash
Overview
The PCM-3362 is centered on the low power Intel® Atom Single Core N450 processor which supports enhanced Intel “SpeedStep” technology and uses Intel’s N450 chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.
The PCM-3362's design is based on the PC/104+ form factor and provides expansion support via ISA & PCI Busses. The PCM-3362 gives developers a low power, low cost and scalable platform that can fit into the tightest places. PC/104+, PCI/104 and PC/104 expansion allows features to be quickly added using any one of EMAC’s many PC/104, PC/104+, or PCI/104 expansion modules. The PCM-3362 is perfect for applications such as data acquisition and industrial automation where low power in a limited space is required.
On-board features include: three serial ports, four USB (Universal Serial Bus) 1.1/2.0 ports, a Gig Ethernet port, an Audio port and a PS/2 keyboard/mouse interface. The built-in high-speed SATA Hard Driver controller supports a maximum transfer rate of 300MB per second. For more rugged applications the 2GB of on-board Flash can be utilized in place of the hard drive.
| Manuals | |
|---|---|
| PCM-3362_user_manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PCM-3362_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Embedded Intel Atom N450 |
| Clock Speed | 1.66 GHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | Up to 1GB RAM |
| Primary Flash | 2GB of Resident on-board Flash memory |
| BIOS/ Bootloader | AMI 16 Mbit |
| Primary IO | |
|---|---|
| GPIO | 1x 8-bit GPIO |
| Audio | HD Audio requires optional CODEC module. |
| Video Out | Intel Dual Display CRT/LCD up to 224 MB shared |
| Ethernet | Intel 82567V 802.3u 10/100/1000 Base-T with a RJ45 connector |
| USB | 4x USB 2.0 |
| Serial Ports | 2x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Display | |
|---|---|
| Display Type | Flat Panel and CRT displays |
| Chipset | Intel N450 |
| Resolution | Up to 1400 x 1050 @ 60 Hz |
| LVDS Interface | Supports 1 channel (18-bit) 1366 x 768 LVDS LCD Panel |
| Multi-Display | CRT + LVDS |
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.8" ×3.5" (96mm × 88mm) |
| Weight | 162 g (0 lbs) |
| Power Requirements | |
|---|---|
| Typical Voltage | 5 V |
| Typical Current | 5 mA |
| Power Misc. |
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Environmental Misc. |
|
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-3362N | ATOM 1.6GHZ N450 Fanless SBC W/ No RAM | Call |
| PCM-3362Z | ATOM 1.6GHZ N450 -20 TO 80C SBC W/ 1GB RAM (NCNR) | Call |
| PCM-3362Z2 | ATOM 1.6GHZ N450 -40 TO 85C SBC W/ 1GB RAM (NCNR) | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SL013-AMN-00060 | Xenomai Real-Time Extensions (one-time charge) | Call |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
