MIO-5271
- Haswell 4th Gen Intel® Core™ U-series (i5/Celeron®)
- 1 x DDR3L-1600/1333 SO-DIMM support up to 8 GB
- DirectX11.1, OpenGL4.0, OpenCL1.2, 3 independent display: VGA + LVDS + HDMI/Displayport*
- Optimized thermal design with fanless solution for wide temperature
- Flexible design using integrated multiple I/O: MIOe

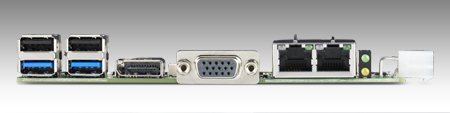

- Rich I/O interface with: 2x GbE LAN, HD Audio, 4x COM, 2x SATA, SMBus/I2C, 8x GPIO, Half-size Mini PCIe, Full-size Mini PCIe w/ mSATA & 2x USB 3.0
32Mpi11143

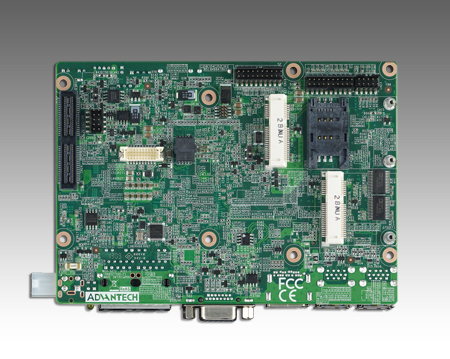

32Mpi11143
32Mpi41141
32Mpi11143 Features
- Haswell 4th Gen Intel® Core™ U-series (i5/Celeron®)
- 1 x DDR3L-1600/1333 SO-DIMM support up to 8 GB
- DirectX11.1, OpenGL4.0, OpenCL1.2, 3 independent display: VGA + LVDS + HDMI/Displayport*
- Optimized thermal design with fanless solution for wide temperature
- Flexible design using integrated multiple I/O: MIOe
- 2x GbE support
- HD Audio
- 4x COM
- 2x SATA
- SMBus/I2C
- 8x GPIO
- Half-size Mini PCIe
- Full-size Mini PCIe w/ mSATA
- 2x USB 3.0
- 2x USB 2.0
Overview

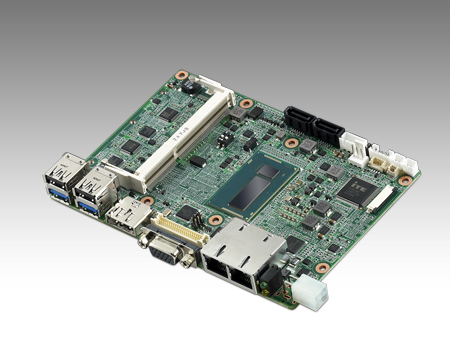

MIO-5271 is designed using MI/O Extension form factor (compact series, 146 x 102 mm) and powered by the latest generation of Intel® Core™ U series processors which have low power features but also high performance computing and multimedia capabilities. Based on numerous demands from embedded applications, developed was an optimized thermal solution for MIO-5271. This makes the possibility of fanless design on this kind of high performance platform. MIO-5271 also embeds iManager and SUSIAccess to monitor and control system operation effectively and remotely. These tools offer greater system reliability and a smarter software framework for embedded customers and helps them speed up development times.
MIO-5271 adopts the latest 64-bit, multi-core processors built on 22nm process technology for improvements in CPU processing, graphics, security and I/O flexibility. Upgrading to Intel® AVX 2.0, brings a big enhancement on integer/matrix-based calculations, with Intel® AES-NI allowing security algorithms which speed up hardware
accelerated data encryption and decryption.
MIO-5271 is equipped with the latest generation graphics core (Intel® HD Graphics 4400) with DXVA (full AVC/VC1/MPEG2 Hardware Acceleration), OpenGL 4.0 and DirectX 11 which increases more possibilities for multimedia application development. MIO-5271 supports various display interface including HDMI and DisplayPort, legacy VGA interface, 48-bit LVDS and next generation embedded interface: eDP.
Triple independent displays including 48-bit LVDS, VGA, and HDMI/DP1 are also available for creative applications.
| Manuals | |
|---|---|
| MIO-5271_USER_NOTE_CORRECTION.PDF | Download (PDF) |
| MIO-5271_USER_MANUAL.PDF | Download (PDF) |
| MIO-5271_STARTUP_MANUAL.PDF | Download (PDF) |
| Data Sheets | |
|---|---|
| MIO-5271_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | 4th Gen Intel Core U-series i5 or Celeron |
| Clock Speed | 1.9 GHz |
| Processor Misc. | Intel® Haswell Family i5 and Celeron® Series SoC Processor
|
| Memory | |
|---|---|
| RAM | DDR3L SODIMM |
| Primary Flash | mSATA |
| Secondary Flash | SATA |
| BIOS/ Bootloader | AMI UEFI 128 Mbit |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | 2x SATA |
| Audio | High Definition Audio (HD) |
| Video Out | VGA LVDS, HDMI/DP |
| Ethernet | 2x GbE: GbE1: Intel i218 - GbE2: Intel i210 |
| USB | 1x USB 3.0 & 2x USB 2.0 Ports |
| Serial Ports | 2x 232 & 2x 232/422/485 |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | Intel HD Graphics 4400 / Intel HD Graphics (Celeron) |
| CRT-VGA Interface | 1x VGA |
| LVDS Interface | 1x LVDS dual channel 24-bit connector |
| HDMI/DVI Interface | 1x HDMI 1.4 or DP |
| Multi-Display | VGA + HDMI/DP* + LVDS |
| Expansion | |
|---|---|
| Bus Expansion | MIOe and 1x Mini-PCIe |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.7" ×4" (144mm × 101mm) |
| Weight | 0.84 kg |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Power Misc. | Power Consumption (Typical) Power Consumption(Max) |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | Standard Operating temperature 0°C~60°C Extended -20°C~80°C and industrial -40°C~85°C options aviliable. |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| MIO-5271U-S6 | MIO-5271U-S6A1E, 2980U 2x1.6GHz, SODIMM, mSATA, 2x SATA, 4x COM, 2x USB3, 2x USB3, 2x GbE, VGA, LVDS, HDMI 0 ~ 60° C | $573.00 |
| MIO-5271U-S9 | MIO-5271U-S9A1E, i5-4300U 2x1.9GHz, SODIMM, mSATA, 2x SATA, 4x COM, 2x USB3, 2x USB3, 2x GbE, VGA, LVDS, HDMI 0 ~ 60° C | $966.00 |
| MIO-5271Z-4GS9 | MIO-5271Z-4GS9A1E, i5-4300U 2x1.9GHz, 4GB DDR3L, mSATA, 2x SATA, 4x COM, 2x USB3, 2x USB3, 2x GbE, VGA, LVDS, HDMI -20 ~ 80° C | $1390.00 |
| MIO-5271Z2-4GS9 | MIO-5271Z2-4GS9A1E, i5-4300U 2x1.9GHz, 4GB DDR3L, mSATA, 2x SATA, 4x COM, 2x USB3, 2x USB3, 2x GbE, VGA, LVDS, HDMI -40 ~ 85° C | $1442.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the MIO-5271 with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| ACK-A004E-03 | ACK-A004 Chassis for MIO-5271 or MIO-5272 (4xCOM, 2xLAN, 4xUSB, Audio, internal mount for 2.5" SATA drive.) ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | $88.00 |
| PER-FLS-00091-R | mSATA Flash module 32GB MLC Std | Call |
| PER-FLS-00102-R | mSATA Flash module 32GB MLC (-40 to 85°C) | Call |
| Memory | ||
| PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
| PER-RAM-00165 | 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
