PC/104 Modules
The most common method for expanding an embedded x86 system is through the use of PC/104 modules. EMAC has Data Acquisition & Control, Communications, and Expansion modules allowing the customer to enhance their systems. When using EMAC's Data Acquisiton and Control modules be sure to reference our SBC Interfacing Guidelines white paper for helpful interfacing information.
The most common method for expanding an embedded x86 system is through the use of PC/104 modules. EMAC has Data Acquisition & Control, Communications, and Expansion modules allowing the customer to enhance their systems. When using EMAC's Data Acquisiton and Control modules be sure to reference our SBC Interfacing Guidelines white paper for helpful interfacing information.
PC/104 Daughter Cards
| Product # | Short Description |
|---|---|

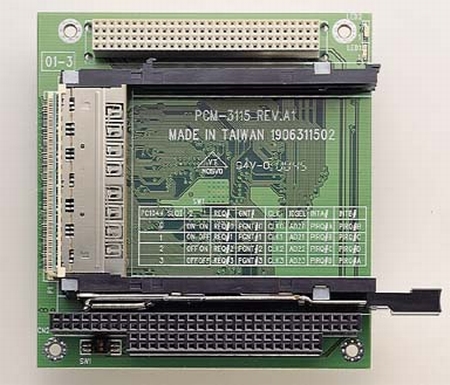

PCM-3115 |
PCMCIA/Cardbus (32-bit) PC/104+ Module with 2 Slots |
PCM-3835 |
IDE Flash / CompactFlash Card Module |
HE104 |
PC/104 Power Supply (+5,+12V) |
PCM-3112 |
PCMCIA PC/104 (16-bit) Module with 2 Slots |
| Product # | Short Description |
|---|---|

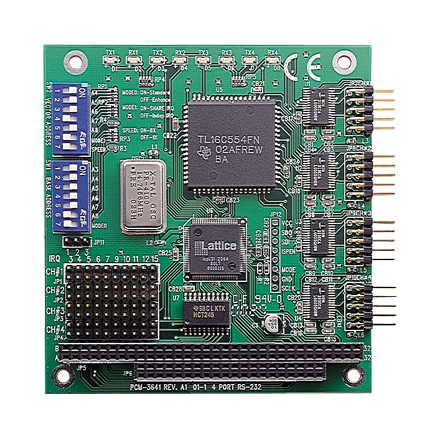

PCM-3641 |
4 Port High-Speed RS-232 PC/104 Module |

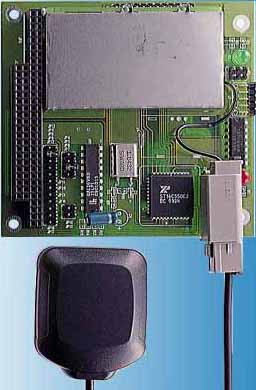

PCM-3292 |
12 Channel GPS Module |
PCM-36E06 |
Advanced Communication Module (GSM/GPRS, GPS, Modem, Serial) |
PCM-3610 |
Isolated RS232/422/485 Dual Port Serial Module |
PCM-3640 |
Four Port RS-232 Serial Module |
PCM-3663 |
Dual 10/100 BaseT PC/104+ Module |
PCM-3680 |
CAN Bus Interface Module |
| Product # | Short Description |
|---|---|

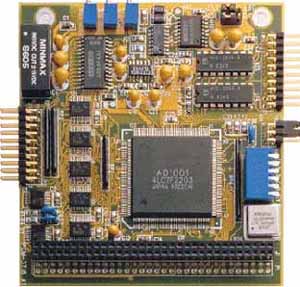

PCM-3718 |
16 Channel, 12 Bit, 100 kHz A/D Module with 2 Digital Ports |

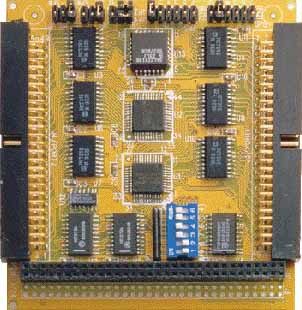

PCM-3724 |
48 Channel Digital I/O Module |

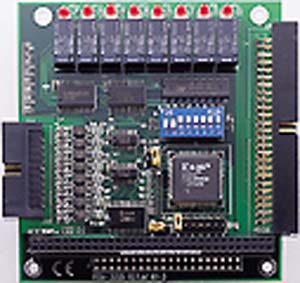

PCM-3725 |
8 Channel Isolated Digital Input & 8 Channel Relay Output Module |

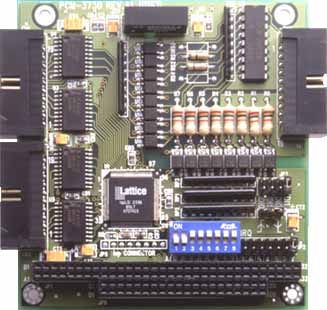

PCM-3730 |
8 Channel Isolated Digital Input & 8 Channel Isolated Output Module |
PCI-104 Daughter Cards
| Product # | Short Description |
|---|---|

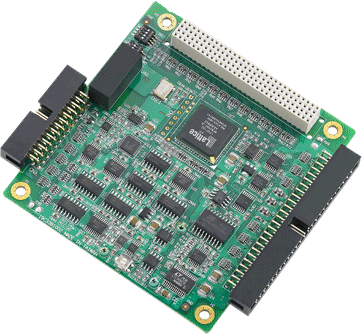

PCM-3810I |
16 Channel Multifunction Module |

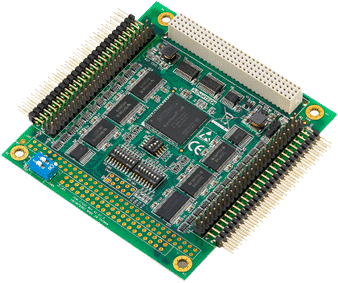

PCM-3753I |
96 Channel Digital I/O Module |

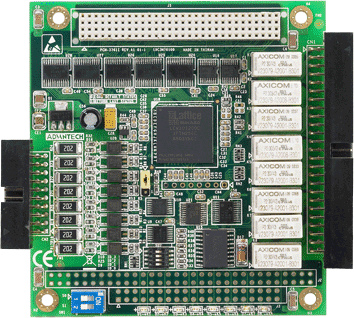

PCM-3761I |
8 Channel Isolated Digital Input & 8 Channel Relay Output Module |

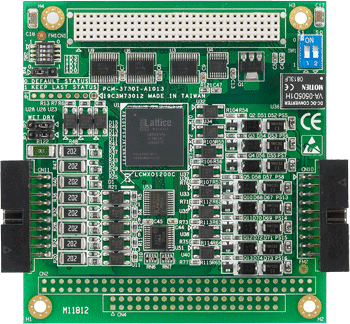

PCM-3730I |
16 Channel Isolated Digital Input & 16 Channel Isolated Output Module |
PCM-3813I |
32 Channel Isolated Analog Input Module |
| Product # | Short Description |
|---|---|

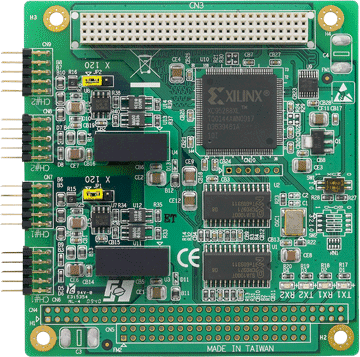

PCM-3680I |
CAN Bus Interface Module |
PCM-361xI |
4 or 8 Port PCI-104 RS-232/422/485 Module |
PCM-364xI |
4 or 8 Port PCI-104 RS-232 Module |
EOL PC/104 & PCI-104 Daughter Cards
| Product # | Short Description |
|---|---|
PCM-37E12 |
32 Channel Digital I/O, 24 Channel A/D Input, 4 Channel D/A Output, 1 RS-232, 1 RS-232/485, 1 CAN port, Keypad Interface, LCD Interface |

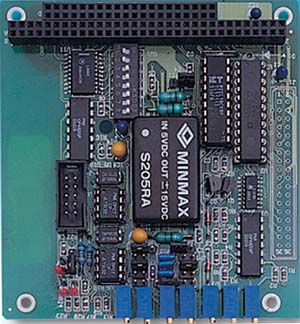

PCM-3712 |
2-CH. PC/104 Analog Output Module |
| Product # | Short Description |
|---|---|

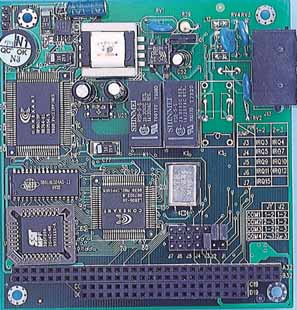

PCM-3601 |
56K Fax/Modem Module |
PCM-3643 |
4/8 Port RS-232 Module |
PCM-3665 |
Dual 10/100/1000 BaseT PC/104+ Module |
| Product # | Short Description |
|---|---|
PCM-2811 |
Advanced Flat-Panel/CRT SVGA Module |

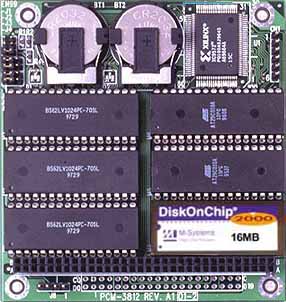

PCM-3810 |
Solid State Flash/EPROM/RAM Disk Module (EOL) |
PCM-3840 |
DiskOnChip 2000 Flash Disk Module |
PCM-P50 |
PC/104 Power Supply (+5,+12V) - *** Minimum Order Quantity is 25 *** |
