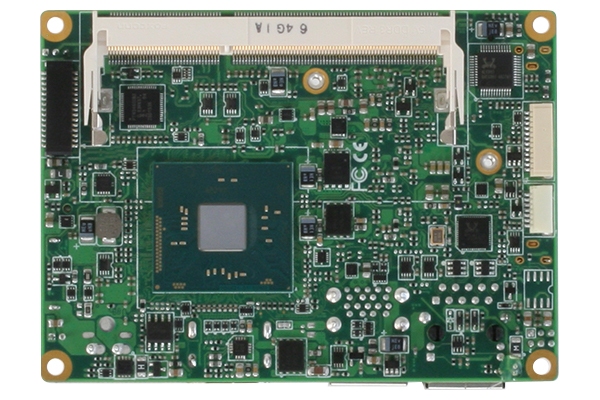

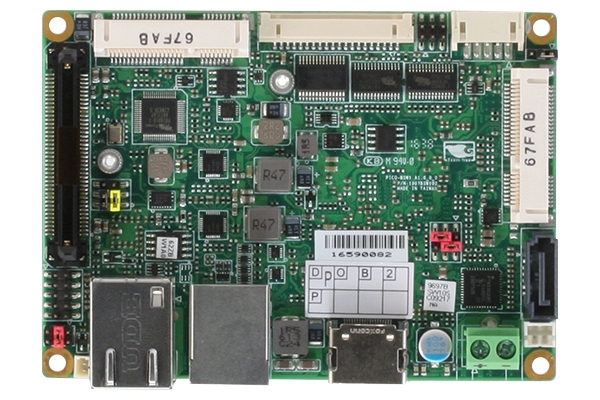

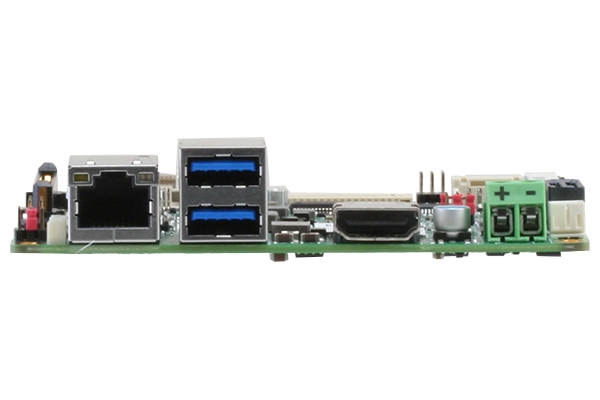

PICO-BSW1

  • Onboard Intel Celeron N3000 or ATOM X5-E8000 Series Processor SoC
  • DDR3L 1600/1066 SODIMM x 1, Up to 8 GB
  • Support Triple Display (Optional)
  • HDMI Up to 3840 x 2160 (4K) Resolution

PICO-BSW1 is small yet technically highly advanced in visual display capabilities. 4K standard is supported through HDMI, and with BIO Board expansion, Independent Triple Display is also supported. Even Dual Channel LVDS is supported to feature high performance data transfer applications. Special IOT support is featured as part of this board's design. You can choose to pair it with the Intel X5-E8000 Embedded CPU providing long embedded life. With this board, you can experience the hottest IOT or robotics applications today.

Features

  • Onboard IntelR PentiumR/CeleronR N3000 or X5-E8000 Series Processor SoC
  • DDR3L 1600/1066 SODIMM x 1, Up to 8 GB
  • LVDS up to 48-bit (2CH)
  • Support Triple Display (Optional)
  • HDMI Up to 3840 x 2160 (4K) Resolution
  • SATA 3.0 x 1, mSATA (Full Size) x 1 or MiniCard x 1 (optional)
  • Gigabit Ethernet x 1, RJ-45 x 1
  • USB 3.0 x 2
  • RS-232 x 1, RS-232/422/485 x 1
  • Mini-Card x 1 (Half-Size)
  • Digital I/O 4-bit
  • BIO Connector for Daughter Board (Optional)

Overview

PICO-BSW1 is small yet technically highly advanced in visual display capabilities. 4K standard is supported through HDMI, and with BIO Board expansion, Independent Triple Display is also supported. Even Dual Channel LVDS is supported to feature high performance data transfer applications. Special IOT support is featured as part of this board's design. You can choose to pair it with the Intel X5-E8000 Embedded CPU providing long embedded life. With this board, you can experience the hottest IOT or robotics applications today. The PICO-BSW1 offers a unique BIO (board-to-board I/O) to connect a Daughter Board for additional I/O port expansion, allowing users to implement their desired features without investing heavily in R&D. With the ability to run Windows 10 IoT, Embedded Linux or Realtime Linux Such as Xenomi, this powerful board is ready to connect your IIoT projects to the EDGE using USB, DIO, RS-232/422/485, I2C or SMBUS connectivity to monitor sensors. The alterneative is adding Wifi, bluetooth, Cell Modem or MESH wireless module to extend the PICO-BSW1 board's support further into modern IIoT connectivity.

Manuals
PICO-BSW1-Manual.pdf
Download (PDF)
Data Sheets
PICO-BSW1.pdf
Download (PDF)

Specifications

Processor
CPU
Intel Celeron N3000 or Atom X5-E8000
Clock Speed
1.6 GHz
Processor Misc.
  • E3160: Quad-Core 1.6 Ghz up to 2.24 GHz/ 6W
  • x5-E8000: Quad-Core 1.06 GHz up to 2.00 GHz/ 5W</li>
Memory
RAM
1x DDR3L SODIMM
Primary Flash
1x SATA HDD & 1x mSATA
BIOS/ Bootloader
AMI/SPI
Memory Misc.
  • Requires DDR3L 1600/1066 SODIMM Up to 8 GB
Primary IO
GPIO
4x DIO
Disk Interface
SATA III
Audio
1x Line Out
Video Out
HDMI & LVDS
Ethernet
1x Realtek RTL 8111E 10/100/1000Base-TX RJ-45
USB
2x USB 3.0
Serial Ports
COM1: RS-232, COM2: RS-232/422/485
Primary I/O Misc.

DIO 4-bit (2-in, 2-out)
Secondary IO
Display
Display Type
HDMI up to 3840 x 2160 (4K)
Chipset
Built into CPU
LVDS Interface
LVDS (18/24bit 2CH) 1920 x 1200
Multi-Display
HDMI & LVDS
Expansion
Bus Expansion
BIO Connector, Mini-PCIe half-Sized
Bus Misc.

BIO expansion on PICO-BSW1-A10-0001
Misc
Operating Systems
EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) , WES 7 - Windows Embedded Standard 7

Mechanical and Environmental

Dimensions
Size
3.94" ×2.84" (100mm × 72mm)
Weight
200 g (0 lbs)
Power Requirements
Voltage
12 V
Typical Current
0.91 A
Power Misc.

Intel® Pentium® N3160@ DDR3L-1600MHz 8GB, 0.91A@+12V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Environmental Misc.

Heat-spreader;

Requires Heat-sink or Active Cooler (optional)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PICO-BSW1-A10-1 PICO-BSW1-A10-0001, N3160 4x1.6GHz, SODIMM, SATA & mSATA, 2x COM, 2x USB3, 1x GbE LAN, 1xBIO, HDMI, LVDS 0 ~ 60° C (heat spreader provided, requires heatsink) $193.00
PICO-BSW1-A10-2 PICO-BSW1-A10-0002, X5-E8000 4x1.06GHz, SODIMM, SATA & mSATA, 2x COM, 2x USB3, 1x GbE LAN, HDMI, LVDS 0 ~ 60° C (heat spreader provided, requires heatsink) $157.00
Build-to-order

EMAC can build the PICO-BSW1 with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.

Call for pricing

Peripheral Options

Product # Description Price
Peripherals
PER-FLS-00091-R mSATA Flash module 32GB MLC Std Call
BIO-ST01-C4M1 BIO Board, 4x COM, 1x Mini-PCIe Card, 1x SIM socket, for PICO-ITX BIO expansion (*Note- Requires Custom BIOS) $55.00
BIO-ST01-L1U2 BIO Board.LAN, 2W Audio Amp, 2USB, SMbus, for PICO-ITX BIO expansion $55.00
BIO-ST01-M1U1 BIO Board, 1x Mini-PCIe Card, 1x SIM, 2W Audio Amp. for PICO-ITX BIO Expansion $55.00
PER-FAN-00131 17592BSW10 Cooler for PICO-BSW1 Board $23.00
PER-FAN-00132 M16BSW1000 - Heatsink for PICO-BSW1 $23.00
PER-PCI-00039 EWM-W157H01E, mPCIe-H, WIFI&BT4.0, 802.11 a/b/g/n/ac,RTL8821AE,with BT4.0 $17.00
PER-MIS-0005PR 2.4 GHz WiFi Antenna & 20cm IPEX to SMA Cable, Panel Mount SMA $19.00
Memory
PER-RAM-00161 4GB DDR3L 1.35V SODIMM Call
Operating Systems
SL050-XON-x EMAC OE Linux 5.0 for x86 (Free installation at time of purchase of SBC & media) Free
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00
