22vpi511VV11 VAB-600 Pico-ITX Board
Featuring an 800MHz ARM Cortex-A9 processor, the VAB-600 combines rich multimedia capabilities and flexible I/O connectivity with a wide operating temperature range and low power consumption to provide a versatile and reliable solution for a wide range of HMI, industrial automation, home automation, and other IoT and M2M applications.
Features
- Powered by WM8950 Cortex A9 Single-Core 800MHz processor
- Integrated graphics processing (GPU) for 3D/2D graphics acceleration
- Compatible with Android 4.0 and Linux Kernel 3.0.8 operating system
- Small form factor and low power design
- Fanless and ultra low power consumption
- Accept wide range of DC power input (12V ~ 24V)
- 4GB onboard eMMC Flash memory
- Onboard DVO (Digital Video Output) for TTL or LVDS display
- Support 4-wire resistive touch screen interface connector
- Support Mini Card expansion slot for USB connectivity 3G module
- Support SIM card slot for 3G SIM card (used for 3G module without built-in SIM card slot)
- Support Micro SD Card slot for expandable storage
- Support RJ-45 LAN (Fast Ethernet), Mini HDMI and Mini USB 2.0 ports
- Optional Bluetooth BLE and Wifi 802.11
Overview
VAB-600 Pico-ITX Board
Featuring an 800MHz ARM Cortex-A9 processor, the VAB-600 combines rich multimedia capabilities and flexible I/O connectivity with a wide operating temperature range and low power consumption to provide a versatile and reliable solution for a wide range of HMI, industrial automation, home automation, and other IoT and M2M applications.

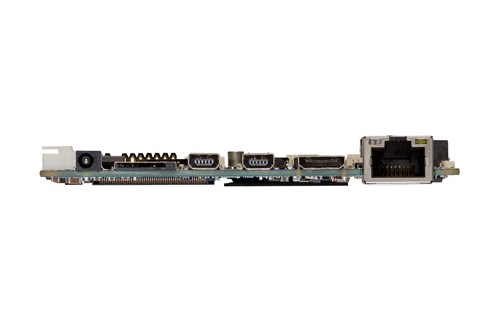

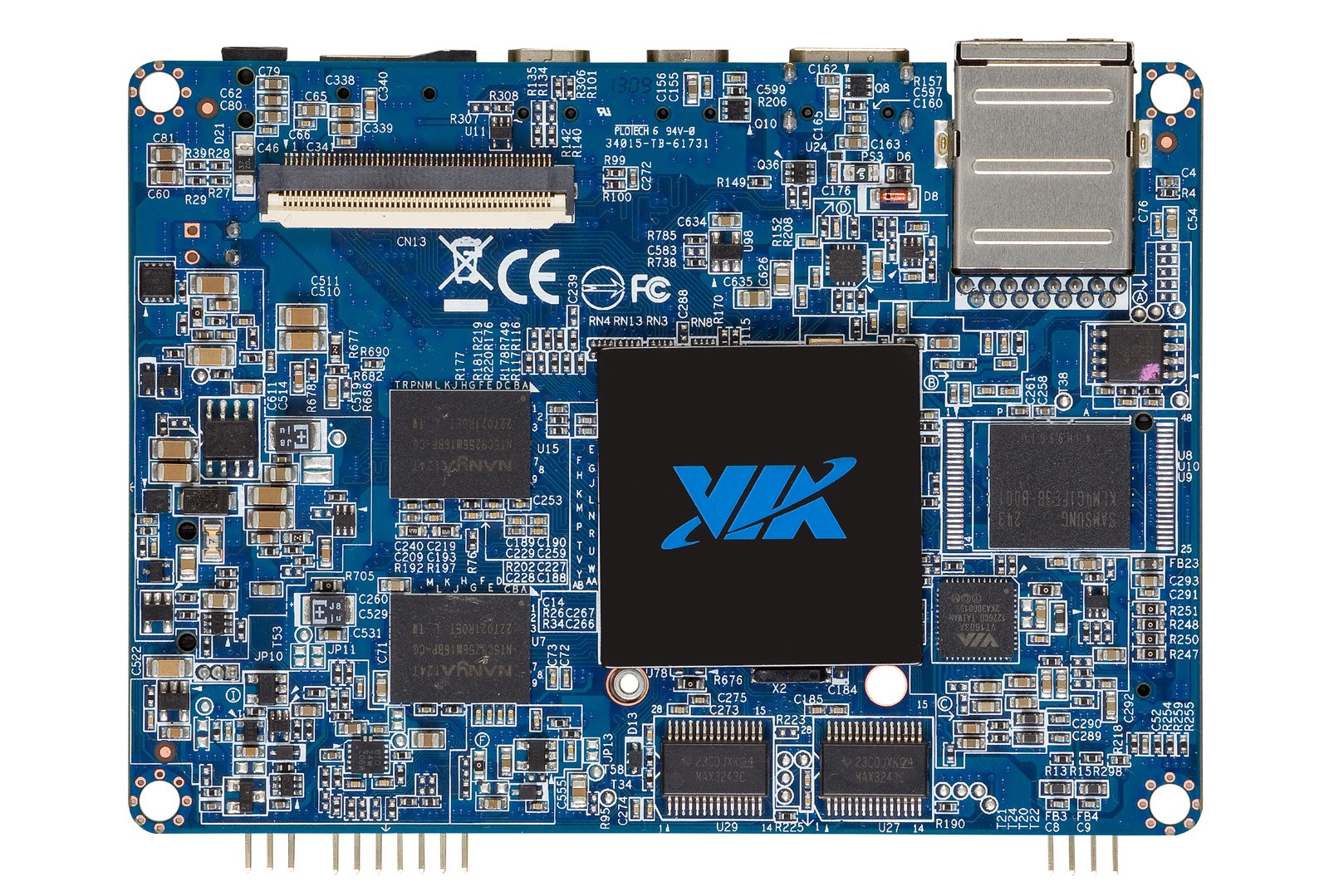

VAB-600 is an ultra compact Pico-ITX and highly integrated ARM based board measuring 10 cm x 7.2 cm. Powered by 800MHz WonderMedia WM8950 Cortex-A9 single-core processor, with built-in 3D/2D graphics engine and video multistandard decoder. It is also compatible with Android 4.0 and Linux Kernel 3.0.8 operating systems, and provides an impressive rear and onboard I/O in a compact form factor.
The ultra compact VAB-600 mainboard is optimized for both performance and power to meet the high end demands of advanced industrial, in-vehicle and multimedia applications while offering extremely low power consumption. It suits with various domain applications such as Tablet PC, Industrial PC, Digital Signage, Thin Client and etc.
| Manuals | |
|---|---|
| UM_VAB-600.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| VIA_VAB-600_datasheet.pdf | Download (PDF) |
| QG_VAB-600-D_102.pdf | Download (PDF) |
| QG_VAB-600-C_100.pdf | Download (PDF) |
| QG_VAB-600-B_100.pdf | Download (PDF) |
| QG_VAB-600-A_103.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | WonderMedia WM8950 Cortex-A9 SoC |
| Clock Speed | 800 MHz |
| Memory | |
|---|---|
| RAM | 1 GB DDR3 onboard |
| Primary Flash | 4GB eMMC onboard |
| Secondary Flash | Micro-SD card |
| BIOS/ Bootloader | 512KB SPI Flash ROM |
| Primary IO | |
|---|---|
| GPIO | 8 GPIO (4 GPI +4 GPO) |
| SDIO | 1x SDIO |
| Disk Interface | Micro SD card slot |
| Audio | Line-In |
| Video Out | Mini HDMI port, DVO |
| Ethernet | VIA VT6113 10/100 base-TX PHY chip |
| USB | 3x USB 2.0 |
| Serial Ports | 2x COM ports |
| Primary I/O Misc. | Mali-400 SP GPU 2 integrated, independent 3D/2D graphics processing units Graphics engine supporting OpenGL® ES 2.0 hardware acceleration Supports MPEG-2, VC-1and H.264 video decoding up to 1080p. DVO connector for TTL or LVDS display (corresponding daughter card required) |
| Secondary IO | |
|---|---|
| Touch | 4-wire resistive touch screen FPC connector (through VT1603A) |
| Secondary I/O Misc. | Wifi 802.11 (optional) Bluetooth BLE (optional) |
| Expansion | |
|---|---|
| Bus Expansion | 1x mini-PCIe slot (supports USB 2.0 connectivity for optional 3G module) |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, Android |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.9" ×2.8" (99mm × 71mm) |
| Dimensions Misc. | Pico-ITX (10cm x 7.2cm, 3.9" x 2.8") |
| Power Requirements | |
|---|---|
| Power Misc. | Power Supply 12V ~ 24V DC-in |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| VAB-600 | VAB-600, 10GAU082000A0, 1GB RAM, 4GB eMMC, 2x COM, 1x USB2, LAN, HDMI, DVO | $98.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||

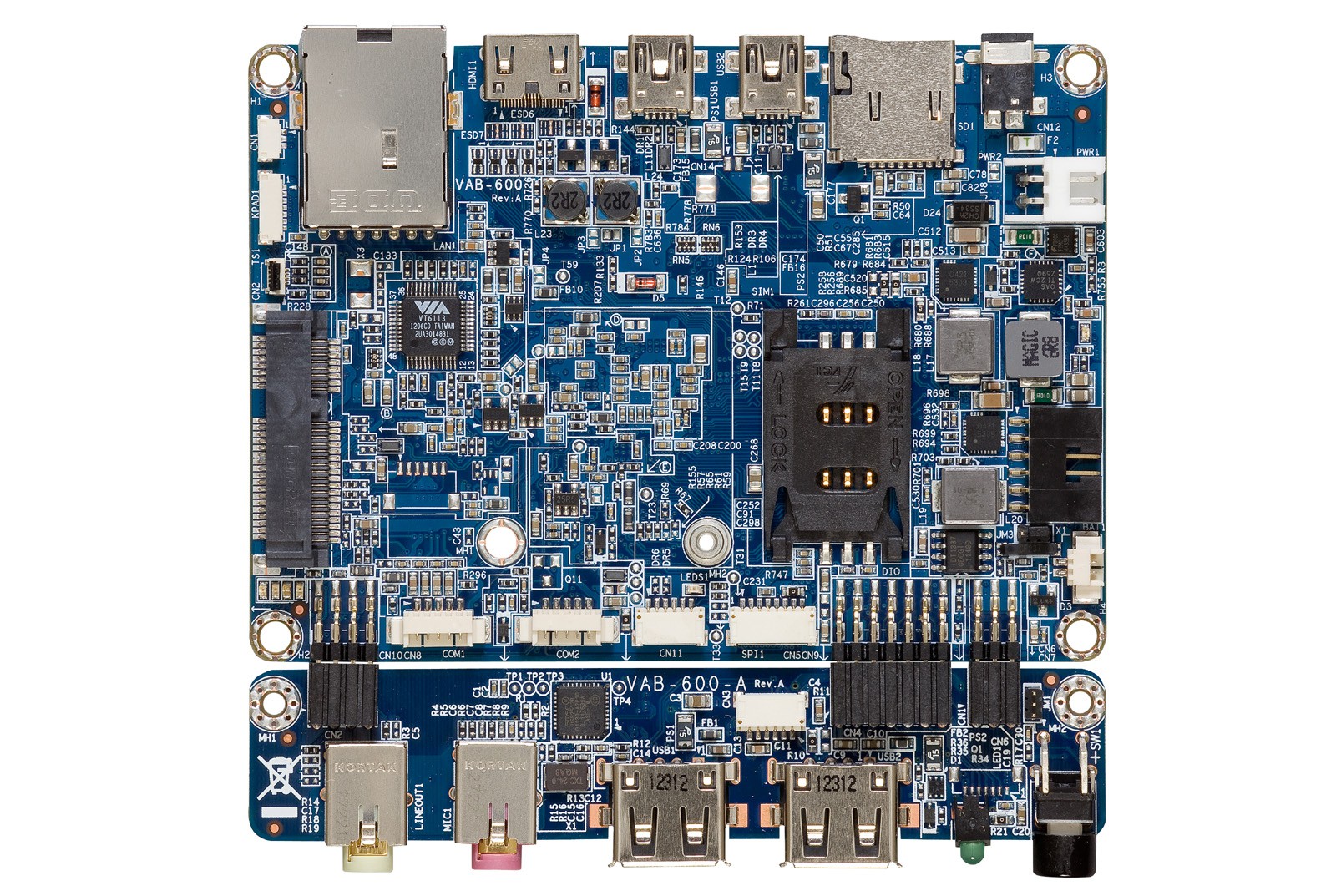

| VAB-600-A | VAB-600-A, 10GAX00000020 Front panel I/O Board, 2x USB 2, Audio, power button | $15.00 |
| VAB-600-B | VAB-600-B, 10GAZ00000020 Serial I/O card for 4x RS232 ports on mini-PCIe card, for USB mini-PCIe socket | $22.00 |
| VAB-600-C | VAB-600-C, 10GBC00000020 DVO to TTL LCD converter | $7.00 |
| VAB-600-D | VAB-600-D, 10GBD00000020 DVO to LVDS LCD converter | $17.50 |
