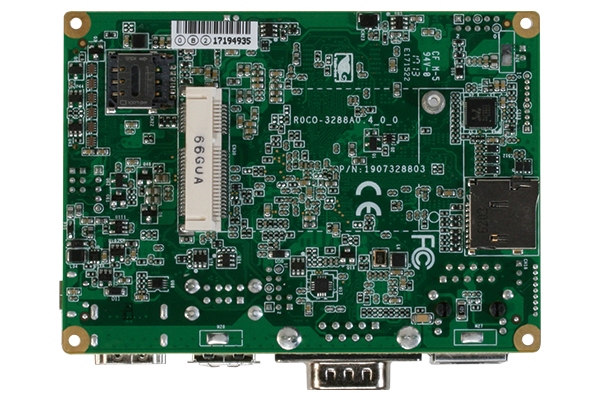

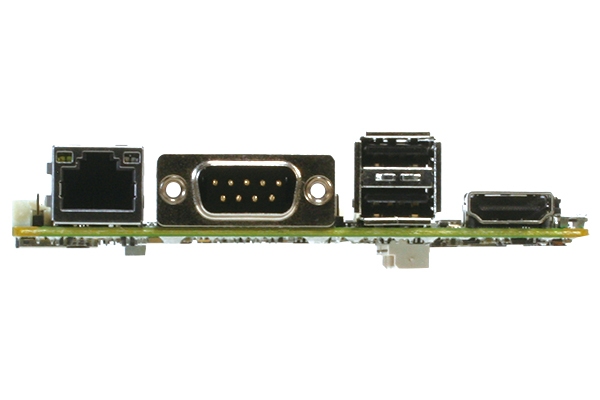

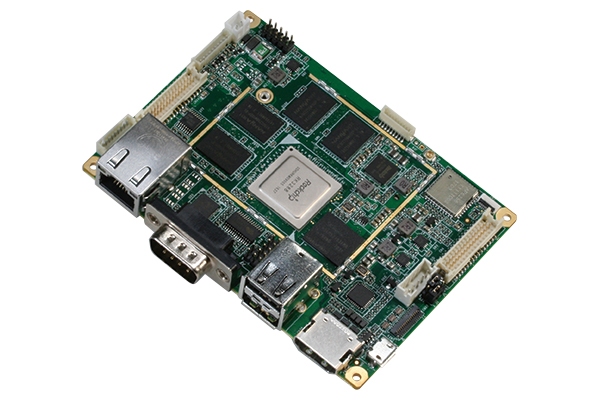

RICO-3288
- Rockchip RK3288 ARM Cortex™-A17 Quad-core 1.6GHz
- 2GB DDR3L Memory & 16GB eMMC Flash Onboard
- 18/24-bit Dual-Channel LVDS, eDP and HDMI
- 2x COM Port, 3x USB2.0
- Optional 7.4V Battery Power Input
- Optional high accuracy GPS module
The RICO-3288 single board computer featuring a compact and slim design, fanless operation, a wide thermal operating envelope with impressive I/O. Designed around the Rackchip RK3288 ARM A17 quad-core processor, the RICO-3288 is a turnkey solution, with incredible energy efficiency and outstanding low power consumption that demonstrates impressive performance. Micro USB OTG, 4G LTE, SD expansion slots, in conjunction with an onboard IO connection for daughter boards enable a huge range of expansion opportunities.
Features
- Rockchip RK3288 ARM Cortex™-A17 Quad-core 1.6GHz
- Onboard DDR3L Memory 2 GB
- Onboard eMMC 16 GB
- MicroSD Slot up to 64 GB
- Gigabit Ethernet RJ45
- 18/24-bit Dual-Channel LVDS, eDP and HDMI
- 1x RS-232, 1x RS-232/422/485
- 3x USB2.0, 1x USB OTG
- 1x Mini-PCIe (for 3G/4G module)
- Optional 7.4V Battery Power Input
- Optional high accuracy GPS module
Overview
The RICO-3288 single board computer featuring a compact and slim design, fanless operation, a wide thermal operating envelope with impressive I/O. Designed around the Rackchip RK3288 ARM A17 quad-core processor, the RICO-3288 is a turnkey solution, with incredible energy efficiency and outstanding low power consumption that demonstrates impressive performance. Micro USB OTG, 4G LTE, SD expansion slots, in conjunction with an onboard IO connection for daughter boards enable a huge range of expansion opportunities. The RICO-3288 is available preloaded with Android 6.0 with any customizations as required enabling rapid APP development for faster time-to-market.
Manuals |
---|
Data Sheets | |
---|---|
RICO-3288_DS.pdf | Download (PDF) |
Specifications
Processor | |
---|---|
CPU | Rockchip RK3288 |
Clock Speed | 1.6 GHz |
Processor Misc. | Rockchip RK3288 ARM Cortex™-A17 Quad-core 1.6GHz (up to 1.8GHz) |
Memory | |
---|---|
RAM | 2GB DDR3L Onboard |
Primary Flash | 16GB eMMC onboard |
Secondary Flash | Micro-SD card |
Primary IO | |
---|---|
GPIO | 8x GPIO (4x in & 4x Out) |
SDIO | 1x microSD card slot & 1x for WiFi |
Audio | 2.5W (by 4Ω) Speaker/ Microphone/ Earphone |
Video Out | HDMI(2.0), LVDS, eDP |
Ethernet | 1x Gigabit Ethernet |
Wireless | 802.11ac (Optional) |
Bluetooth | Bluetooth 4.0 (Optional) |
USB | 3x USB 2.0, 1x Micro-USB OTG |
Serial Ports | 1x RS-232/422/485, 1x RS-232 Pin header (optional) |
Secondary IO | |
---|---|
CAN | 1x CAN (Optional) |
Touch | 1x I2C interface |
Display | |
---|---|
Display Type | eDP up to 2560 x 1400 @60Hz |
LVDS Interface | LVDS (18/24-bit) up to 1400 x 900 @60Hz |
HDMI/DVI Interface | HDMI(2.0) up to 4k x 2k @60Hz |
Expansion | |
---|---|
Bus Expansion | Mini-PCIe Slot (Optional) |
Misc | |
---|---|
Operating Systems | EMAC OE Linux, Android |
Mechanical and Environmental
Dimensions | |
---|---|
Size | 3.94" ×2.84" (100mm × 72mm) |
Weight | 0.4 kg |
Power Requirements | |
---|---|
Voltage | 12 V |
Constant Busy Loop Current | 600 mA |
Power Misc. | Optional 7.4V battery |
Environmental | |
---|---|
Low Operating Temperature | 0 C (32 F) |
High Operating Temperature | 60 C (140 F) |
Upper Operating Humidity | 90% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
Product # | Description | Price |
---|---|---|
RICO-3288-001 | RICO-3288-A11-0001, RK3288 4x1.6GHz, 2GB DDR3L, 16GB eMMC, MicroSD, 2x COM, 3x USB2, 1x USB OTG, 1x GbE, 1xWIFI 802.11ac, Mini-PCIe, HDMI, LVDS | $155.00 |
Build to Order | ||
RICO-3288B-001 | RICO-3288B-A10-0001, RK3288 4x1.6GHz, 2GB DDR3L, 16GB eMMC, MicroSD, 2x COM, 3x USB2, 1x USB OTG, 1x GbE, HDMI, LVDS(*** Build to order option MOQ 50, without Wireless) | Call |
Peripheral Options
Product # | Description | Price |
---|---|---|
Peripherals | ||
PER-MIS-0005PR | 2.4 GHz WiFi Antenna & 20cm IPEX to SMA Cable, Panel Mount SMA | $19.00 |
