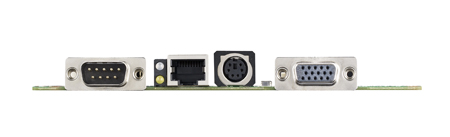

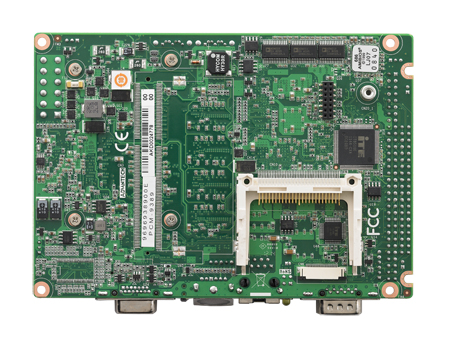

PCM-9389
263pi11143
26Bpi11143
26Fpi11143

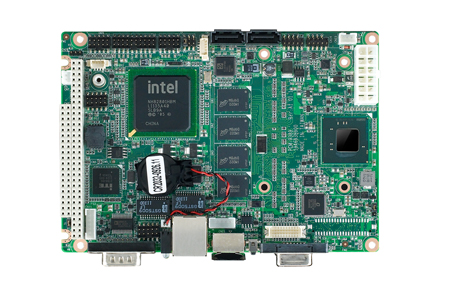

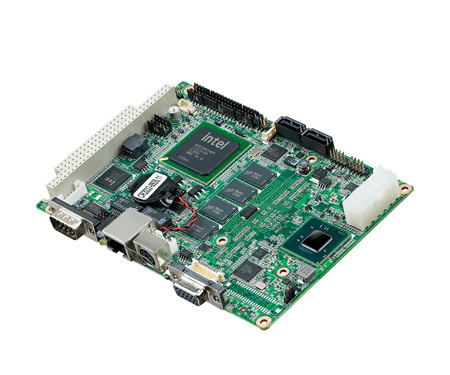

26Ipi31141 PCM-9389 is a 3.5" SBC (Single Board Computer) with Embedded Intel Atom N455 1.66 GHz / D525 1.8 GHz processor. The PCM-9389 can support DDR3 SODIMM up to 4GB or 1 GB SDRAM on-board, PC/104 and LPC (Low Pin Count) expansion, VGA, 18/24-bit LVDS, 2 GbE, CF, 2 SATA, 3 RS-232 COM ports, 1 RS-232/422/485 COM port, 4 USB 2.0, SMBus or I2C, 8-bit GPIO.
Features
- Intel® AtomTM N455 Single Core/ D525 Dual Core processor + ICH8M, DDR3 on-board memory or SO-DIMM support
- Intel Gen 3.5 DX9, MPEG2 Hardware Decoder, dual independent display: 18/24-bit LVDS, VGA
- Intel Dual GbE supported; Rich I/O interface with 4 COM , 2 SATA, 4 USB and GPIO connectors
- Integrates internal LPC connector to support four extra COM ports via PCA-COM232 or PCA-COM485
- Supports iManager, SUSIAccess and Embedded Software APIs
Overview
PCM-9389 is a 3.5" SBC (Single Board Computer) with Embedded Intel Atom N455 1.66 GHz / D525 1.8 GHz processor. The PCM-9389 can support DDR3 SODIMM up to 4GB or 1 GB SDRAM on-board, PC/104 and LPC (Low Pin Count) expansion, VGA, 18/24-bit LVDS, 2 GbE, CF, 2 SATA, 3 RS-232 COM ports, 1 RS-232/422/485 COM port, 4 USB 2.0, SMBus or I2C, 8-bit GPIO.
| Manuals | |
|---|---|
| PCM-9389_user_manual_Ed-1_FINAL.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PCM-9389_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel Atom N455 or D525 dual core |
| Clock Speed | 1.8 GHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | SDRAM on-board: N455 with 1 GB DDR3 |
| Primary Flash | 1x CompactFlash™ card Type I/II |
| BIOS/ Bootloader | AMI 16 Mbit Flash BIOS |
| Memory Misc. | Optional RAM (D525): DDR3 800 MHz
|
| Primary IO | |
|---|---|
| GPIO | 1x 8-bit GPIO |
| Disk Interface | 2x SATA II |
| Audio | Realtek ALC892 High Definition Audio (HD) (Line-in/Line out /Mic-in) |
| Video Out | VGA |
| Ethernet | 10/100/1000 Intel 82567V RJ-45/Intel 82583V internal |
| USB | 4x USB 2.0 |
| Serial Ports | 2x RS-232, 2x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Keypad | Yes
|
| PS/2 | Yes
|
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.7" ×4" (144mm × 101mm) |
| Weight | 0.64 kg |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Power Misc. | PCM-9389N: 1.63 A @ 5 V (8.15 W) |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-9389D-S8A1E | CPU Atom D525, L2 Cache 1MB, Memory SODIMM, Active Thermal Solution | $295.00 |
| PCM-9389N-1GS6A1E | CPU Atom N455, L2 Cache 512 KB, Memory 1GB onboard | $325.00 |
| PCM-9389N-S6A1E | CPU Atom N455,L2 Cache 512 KB, SODIMM memory | $285.00 |
| PCM-9389NZ-1GOBA1E | CPU Atom N455, L2 Cache 512 KB,Memory 1GB onboard, Wide Temp -20 ~ 80 C | $471.00 |
| PCM-9389NZ-2GDMA1E | CPU Atom N455, L2 Cache 512 KB, Memory 2GB bundled, Wide temp -20 ~ 85 C | $487.00 |
| PCM-9389NZ21GOBA1E | CPU Atom N455, L2 Cache 512 KB, Memory 1GB onboard, Wide temp -40 ~ 85 C | $513.00 |
| PCM-9389NZ22GDMA1E | CPU Atom N455, L2 Cache 512 KB, Memory 2GB bundled, Wide temp -40~85 C | $542.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SD622-000-0010 | MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. | Call |
| SD622-000-0005 | ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $35.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
