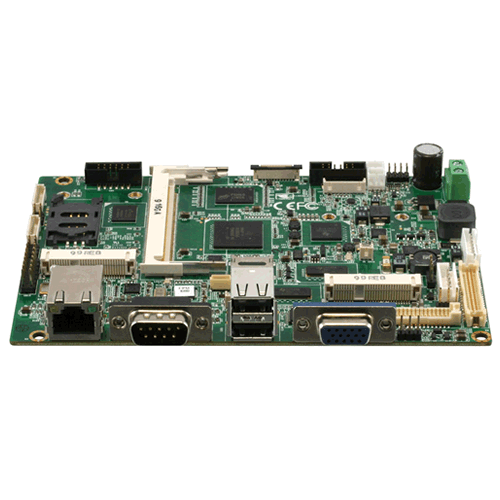

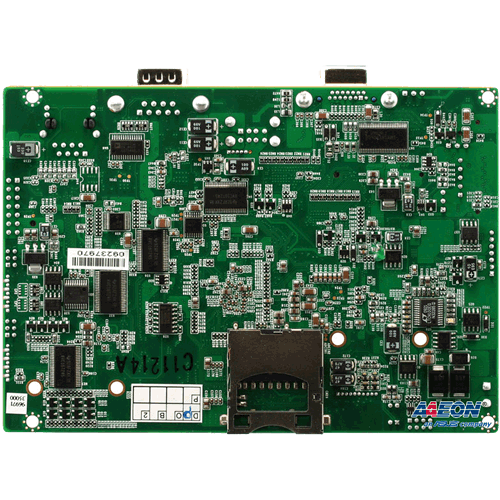

GENE-1350 adopts TI OMAP 3503/3530 Processor. This RISC CPU module features low power consumption and cost-efficiency, to fulfill the requirements of hardy and more cost-focusing applications.
Features
- TI OMAP™ 3503/3530 600 MHz
- Onboard 128/256 MB (Optional) LP DDR RAM
- Onboard NAND Flash, SD, MicroSD
- 1x RS-232, 1x RS-232/422/485 (auto flow), 1x TTL UART
- 2x USB 2.0 Host, 1x USB 2.0 Client
- 1x 10/100Base-TX with RJ-45 LAN
- TTL/LVDS/LCD
- Up to 1280 x 768 for LCD, Up to 1024 x 768 for CR
- Up to 24-bit single channel TTL and 18-bit single channel LVDS LCD
- Onboard 4-wire Resistive Touch Screen Controller
- 2x Mini-Card (with USB interface only), 1x Proprietary Expansion Slot
- 8-bit GPIO
- Audio: Line-In, Line-out, Mic-in, Speaker-out (1W Amplifier)
- Chipset: TI OMAP™ 3
- Power Requirement +9V to +24V DC
- Operating Temperature: 32°F ~ 158°F (0°C ~ 70°C)
- Operating Humidity: 0% ~ 90% relative humidity, non-condensing
- Dimensions: 5.75"(L) x 4"(W) (146mm x 101.6mm)
Overview
GENE-1350 adopts TI OMAP 3503/3530 Processor. This RISC CPU module features low power consumption and cost-efficiency, to fulfill the requirements of hardy and more cost-focusing applications.
The module has 2COM ports (1 RS-232, 1 RS-232/485), 2 USB2.0 host, 1 USB2.0 Client, Digital I/O, etc., to connect and control the peripheral devices. Two Mini Card (with USB interface only) and one Proprietary Expansion Slot make the implementation of external expansion. The CPU frequency is up to 600 MHz and shows a better performance. In addition, the GENE-1350 companies with TI OMAP 3 Display Companion Chipset, the 3D Graphics & Video Accelerator support with 3530 processor.
The power-saving contribution helps GENE-1350 to run rich multimedia applications and perform excellently. For targeting at the vehicle PC and mobile device markets, the GENE-1350 is no doubt the best solution.
Manuals | |
---|---|
GENE-1350_Manual_RevA_1st_Ed.pdf | Download (PDF) |
Data Sheets | |
---|---|
GENE-1350.pdf | Download (PDF) |
Specifications
Processor | |
---|---|
CPU | TI OMAP™ 3503/3530 600 MHz |
Clock Speed | 600 MHz |
Memory | |
---|---|
RAM | Onboard 128/256 MB (Optional) LP DDR RAM |
Primary Flash | Onboard NAND Flash & SD & MicroSD |
Primary IO | |
---|---|
GPIO | 8-bit GPIO |
Disk Interface | Onboard NAND Flash, SD, MicroSD |
Audio | Line-In |
Video Out | TTL/LVDS/LCD |
Ethernet | 1x 10/100Base-TX with RJ-45 |
USB | 2x USB 2.0 Host, 1x USB 2.0 Client |
Serial Ports | 1x RS-232, 1x RS-232/422/485 (auto flow), 1x TTL UART |
Secondary IO | |
---|---|
Touch | Supports 4-wire resistive touch screen |
Display | |
---|---|
Chipset | TI OMAP™ 3 |
Resolution | Up to 1280 x 768 for LCD & Up to 1024 x 768 for CRT |
LVDS Interface | Up to 18-bit single channel TTL/LVDS LCD |
Multi-Display | Up to 24-bit single channel TTL and 18-bit single channel LVDS LCD |
Expansion | |
---|---|
Bus Expansion | 2x Mini-Card (with USB interface only), 1x Proprietary Expansion Slot |
Mechanical and Environmental
Dimensions | |
---|---|
Size | 5.75" ×4" (146mm × 101mm) |
Weight | 0.88 lb |
Dimensions Misc. | 5.75"(L) x 4"(W) (146mm x 101.6mm) |
Power Requirements | |
---|---|
Power Misc. | Power Requirement: +9V to +24V DC
Power Consumption TI OMAP 3530, 128MB LP DDR, 0.24A @ +12V
|
Environmental | |
---|---|
Low Operating Temperature | 0 C (32 F) |
High Operating Temperature | 70 C (158 F) |
Upper Operating Humidity | 90% |
Environmental Misc. | 0% ~ 90% relative humidity, non-condensing
|
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
Product # | Description | Price |
---|---|---|
GENE-1350-A10 | 3.5" SBC, GENE-1350, OMAP3530, 128MB RAM, 256MB Flash, 2xCOM, 2xUSB2, 1xLAN, Audio | $358.00 |
GENE-1350W1-A10 | 3.5" SBC, GENE-1350-ET, OMAP3530, 128MB RAM, 256MB Flash, 2xCOM, 2xUSB2, 1xLAN, Audio (-20-70C) | $461.00 |
Peripheral Options
Product # | Description | Price |
---|---|---|
Operating Systems | ||
SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
