MIO-5251
- Intel® Celeron J1900 & Atom™ E3825/E3845
- SODIMM up to 8GB DDR3L
- multi-display: VGA, LVDS & HDMI/DP*
- Flexible design using integrated multiple I/O: MIOe to approach vertical
- applications & keep domain knowhow
- 2x GbE, 4x COM, SATA, USB3.0, SMBus/I2C, GPIO
- full-size Mini PCIe w/ SIM holder, full-size mSATA or SD card
32Mpi11143
32Mpi11143

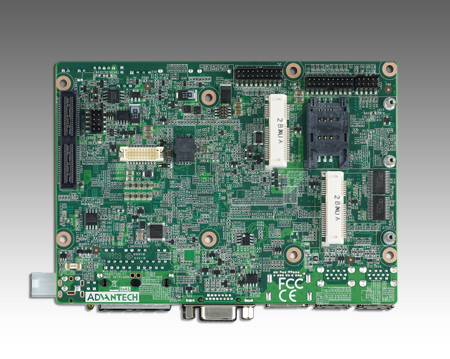

32Mpi41141 MIO-5251 is designed using MI/O Extension form factor (compact series, 146 x 102 mm) and powered by the latest generation of Intel® Celeron® J1900 and Atom™ E3825 processors which have low power features but also good performance computing, especially for multimedia capabilities compared to earlier generations. Meanwhile, MIO-5251 offers flexible expansion possibilities: two full-size mini PCIe, 2nd LVDS through MIOe-230, SD card, SIM holder, MIOe with PCIex1, SMBus, 3xUSB 2.0, LPC, line out, DisplayPort, and power interface.
Features
- Intel® Celeron J1900 & Atom™ E3825/E3845
- SODIMM up to 8GB DDR3L
- multi-display: VGA, LVDS & HDMI/DP*
- Flexible design using integrated multiple I/O: MIOe to approach vertical
- applications & keep domain knowhow
- 2x Intel i210 GbE
- 4x COM ( 2x RS232 & 2x RS232/422/485
- 1x SATA
- 1x USB3.0
- 4x USB2.0
- SMBus
- I2C
- 8x GPIO
- full-size Mini PCIe w/ SIM holder, full-size mSATA or SD card
- Intel Gen7 graphic engine
Overview
MIO-5251 is designed using MI/O Extension form factor (compact series, 146 x 102 mm) and powered by the latest generation of Intel® Celeron® J1900 and Atom™ E3825 processors which have low power features but also good performance computing, especially for multimedia capabilities compared to earlier generations. Meanwhile, MIO-5251 offers flexible expansion possibilities: two full-size mini PCIe, 2nd LVDS through MIOe-230, SD card, SIM holder, MIOe with PCIex1, SMBus, 3xUSB 2.0, LPC, line out, DisplayPort, and power interface.

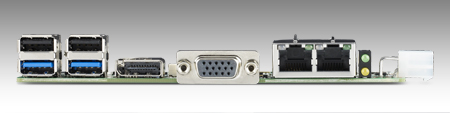

MIO-5251 supports various display interfaces including HDMI/DisplayPort, VGA, 48-bit LVDS/eDP, and rich I/O: 2 x GbE, SATA, mSATA/SD card, 4xSerial Ports, USB 3.0 and 4 x USB 2.0.
| Manuals | |
|---|---|
| MIO-5251_USER_MANUAL.PDF | Download (PDF) |
| Data Sheets | |
|---|---|
| MIO-5251_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel Baytrail ATOM E3800 series or Celeron J1900 |
| Clock Speed | 2 GHz |
| Processor Misc. | Intel® Atom™ E3800 Product Family/Celeron® J1900 Series SoC Processor
|
| Memory | |
|---|---|
| RAM | 1x 204-pin SO-DIMM socket supports DDR3L SDRAM (Non-ECC up to 8GB) |
| Primary Flash | 1x mSATA |
| Secondary Flash | 1 x SATA |
| BIOS/ Bootloader | AMI UEFI BIOS at 64 Mb |
| Memory Misc. | *SD Slot optional, build to order option replaces mSATA |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| SDIO | 1x SDIO 3.0 (optional) |
| Disk Interface | 1x SATA & 1x mSATA |
| Audio | Realtek ALC888S |
| Video Out | 1xVGA, 1x LVDS, 1x HDMI |
| Ethernet | 2x 10/100/1000 Mbps Intel i210 |
| USB | 1x USB 3.0, 4x USB 2.0 |
| Serial Ports | 4x COM (2x RS232, 2x 232/422/485) |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | Intel Gen7 graphic engine |
| Resolution | 2560 x 1600 at 60Hz |
| LVDS Interface | 48-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports 3.3/5/12V for VDD power |
| HDMI/DVI Interface | 1x HDMI |
| Multi-Display | VGA/HDMI/LVDS |
| Expansion | |
|---|---|
| Bus Expansion | MIOe & Mini-PCIe |
| Bus Misc. | MIOe- SMBus, 3 x USB2.0, LPC, 1 x PCIe x1, line out, DisplayPort*, +5 Vsb/+12 Vsb power, Power On, Rest 1x mini-PCIe (second mini-PCIe optional) |
| Misc | |
|---|---|
| Operating Systems | EMAC OE, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.7" ×4" (144mm × 101mm) |
| Weight | 0.5 kg |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Power Misc. | Power Consumption (Typical) Power Consumption (Max, test in HCT) |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | Standard Operating temperature 0°C~60°C Extended -20°C~80°C and industrial -40°C~85°C options aviliable. |
