PPC-L156T

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

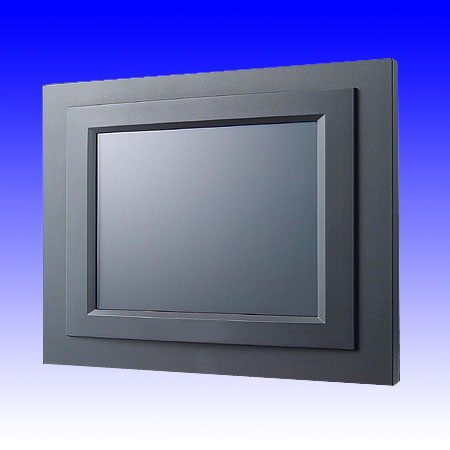

The PPC-L156T is a 15" fanless panel computer which is the ideal solution for low noise operating environments and clean room applications. PPC-L156T has two power sources; an optional battery pack and AC power supply. The battery charges when the PPC-L156T is connected to the AC power adapter. The optional rechargeable battery pack has more than 60 minutes battery life and can be used as an UPS during expected loss of power. The PPC-L156T meets the VESA standard for mounting holes so it can be used in many different kinds of installations.

Features

  • 15" TFT XGA LCD
  • Embedded Intel ULV Celeron M 1.0GHz / Pentium M 1.1GHz
  • System memory 256 MB expandable up to 2 GB of DDR
  • Compact Flash ® Type I II socket
  • 10/100Base-T
  • Fanless and ultra-low power consumption
  • Mini PCI Socket and optional PCI expansion kit
  • Removable front bezel
  • Automatic data flow control over RS-485

Overview

The PPC-L156T is a 15" fanless panel computer which is the ideal solution for low noise operating environments and clean room applications. PPC-L156T has two power sources; an optional battery pack and AC power supply. The battery charges when the PPC-L156T is connected to the AC power adapter. The optional rechargeable battery pack has more than 60 minutes battery life and can be used as an UPS during expected loss of power. The PPC-L156T meets the VESA standard for mounting holes so it can be used in many different kinds of installations. The front bezel can be removed to make maintenance of the LCD and touchscreen easier and quicker.

Manuals
ppc-l106t.pdf
Download (PDF)
Data Sheets

Specifications

Processor
CPU
Embedded Intel® ULV Celeron® M
Clock Speed
1 GHz
Processor Misc.

Optional Processor: Pentium® M 1.1 GHz
Memory
RAM Type
2x 200 pin SODIMM socket DDR 256 MB built-in
Memory Misc.
  • HDD: One internal 2.5" IDE Interface
  • SSD: Supports internal Type I/II CompactFlash™ socket
Primary IO
Audio
Built-in Mic-in / Line-out jacks
Video Out
15
Ethernet
10/100 Base-T Ethernet interface
USB
4x USB 2.0 (2 internal, 2 external)
Serial Ports
3x RS-232, 1x RS-232/422/485
Primary I/O Misc.

Additional I/O: 1 parallel port, external VGA port, 2x Type II PCMCIA ports

Touchscreen

(Optional)

  • Type: Analog resistive, Capacitive, Infrared
  • Light Transmission: 80% ~ 90%
  • Controller: RS-232 interface (COM 4)
  • Software Driver: Supports DOS and Windows XP, CE
  • Lifetime: 35 million touches
Secondary IO
PS/2
Yes
Display
Display Type
15" Color TFT LCD
Resolution
1024 × 768 mm
Pixel Pitch
0.297 × 0.297 mm
LCD Colors
262K
Viewing Angle
60° (horizontal), 40 °(up), 60 °(down)
Luminance
350 cd/m2
LCD Misc.
  • Simultaneous Mode: Yes
  • Backlight MBTF: 50,000 hrs.

Mechanical and Environmental

Dimensions
Size
16.3" ×13.1" ×3" (414mm × 332mm × 76mm)
Weight
6 kg
Power Requirements
Power Misc.
  • Output Rating : 65 Watts
  • Input Voltage: 100-240VAC @50/60 Hz autoranging
  • Output Voltage: +5V @ 3.5A, +12V @ 4A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature45 C (113 F)
Environmental Misc.
  • Relative Humidity: 10 ~ 95% @ 40° C (non-condensing)
  • Shock (Operating): 10 G peak acceleration (11 ms. duration)
  • EMC: CE, FCC Class B approved, BSMI
  • Front Panel Protection: Front panel meets NEMA 4 / IP 65

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-L156T-R80-X 600MHZ CELRON M PPC W/ RESISTIVE T/S Call
PPC-L156T-R81-XE 1.1GHZ CELRON M PPC W/ RESISTIVE T/S Call
PPC-L156T-R82-XE 800MHZ CELRON M PPC W/ RESISTIVE T/S Call
PPC-L156T-V80-X 600MHZ CELRON M PPC W/ VANDAL PROOF IR T/S Call
PPC-L156T-c81-XE .1GHZ CELRON M PPC W/ CAPACITIVE T/S Call
PPC-L156T-v81-XE 1.1GHZ CELRON M PPC W/ VANDAL PROOF IR T/S Call

Peripheral Options

Product # Description Price
Peripherals
PPC-S15X-STAND-BLK Stand Kit $77.00
PPC-ARM-A01 Swing Arm Kit $145.00
PPC-174-Wl-MT Wall Mount Kit $58.00
