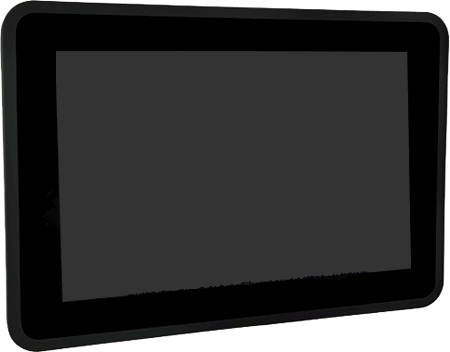

PPC-101E

  • Allwinner A40 Cortex™ QuadCore Processor
  • 10.1" LCD with 1280 x 800 Resolution
  • 1 GB DDR3 RAM; 8 GB NAND FLASH
  • Projected Capacitive 10-Point Multitouch Touchscreen
  • Optional Bluetooth & GPS

The Embedded Touchscreen Series is the cost effective solution for machine control, automation, IOT Monitoring and digital signage. By including pre-installed Android or Linux, a powerful Allwinner A20 Dual Core CPU, numerous interfaces such as USB, serial, network(wired Gigabit LAN with POE, and 802.11 b/g/n Wifi), TTL / UART, Mini-PCIe, HDMI, VGA, GPIO, LVDS and Wide voltage DC–IN. With optional Bluetooth Cellular Modem or GPS connectivity aviliable. Each panel comes with LED backlighting and is backed by warranty for pixel accuracy.

Features

  • Allwinner A40 Cortex™ QuadCore Processor
  • Cortex™ A7 Chipset
  • 1 GB DDR3 RAM; 8 GB NAND FLASH
  • 10.1" LCD with 1280 x 800 Resolution
  • Projected Capacitive 10-Point Multitouch Touchscreen
  • Optional Bluetooth & GPS
  • Android 4.2, 4.4 & Linux Support, WinCE BSP aviliable (based on project)

Internal Connectors

    • 2x Serial
    • 4x TTL UART
    • 2x USB 2.0
    • 18/24Bit LVDS
    • 24x GPIO
    • 1x Line-In
    • 1x Line-Out
    • 1x Amplifier for 2x 6W loudspeaker
    • 1x SATA-Port
    • 1x RTC

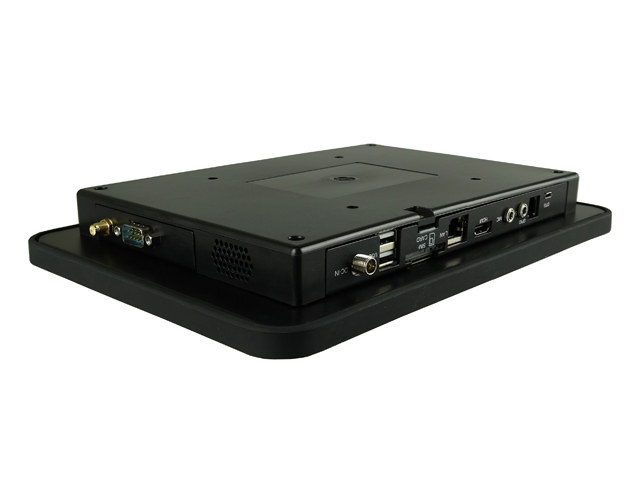

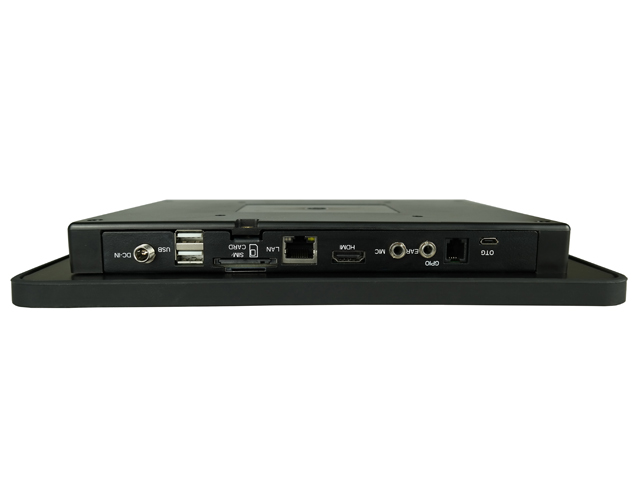

External Connectors

    • 8-18V DC-IN, screwable
    • 2x USB 2.0
    • 1x USB OTG
    • 1x Serial
    • 1x— 10/100/1000Mbit RJ45 Ports with connector for POE
    • 1x Audio-In
    • 1x Audio-Out
    • 1x SD-card
    • 1x SIM-card
    • 1x W-LAN-connector (802.11 b/g/n wi-fi adapter onboard)
    • 1x HDMI

Expansion Slots

    • 1x MiniPCIe

Overview

The Embedded Touchscreen Series is the cost effective solution for machine control, automation, IOT Monitoring and digital signage. By including pre-installed Android or Linux, a powerful Allwinner A20 Dual Core CPU, numerous interfaces such as USB, serial, network(wired Gigabit LAN with POE, and 802.11 b/g/n Wifi), TTL / UART, Mini-PCIe, HDMI, VGA, GPIO, LVDS and Wide voltage DC–IN. With optional Bluetooth Cellular Modem or GPS connectivity aviliable. Each panel comes with LED backlighting and is backed by warranty for pixel accuracy.
The design of the Embedded Touchscreen series follows the application: flat easy to integrate IP65 front and stable rear housing with VESA-75/100 mounting for fixing / integration.
A really cool new Embedded Touchscreen Series is our most cost-effective solution for intelligent machine control, and like all reliably touch devices built for precision and durability.

Manuals
Data Sheets
PPC-101E_DS.pdf
Download (PDF)

Specifications

Processor
CPU
Allwinner A40 Cortex™ A7 Quad-Core
Clock Speed
1 GHz
Processor Misc.

Optional Processor Allwinner A20 Cortex™ A7 Dual-Core
Memory
RAM
Up to 2GB DDR3 RAM onboard
Primary Flash
8GB Nand Flash
Secondary Flash
SD card
Memory Misc.

Optional memory options (Built to Order options):

  • 2G RAM, 1G Standard
  • 4G to 16G Flash, 8G Standard
Primary IO
SDIO
1 x SDIO SD Port
Disk Interface
SD CARD
Audio
Integrated HI-FI 100dB Audio Codec
Video Out
HDMI
Ethernet
1x 10/100/1000 BaseT Gigabit Ethernet port (supporting POE)
USB
2x USB 2.0
Serial Ports
1x serial
Primary I/O Misc.

External IO connectors:

2x USB 2.0
1x USB OTG
1x Serial
1x—10/100/1000Mbit RJ45 Ports with connector for POE
1x Audio-In
1x Audio-Out
1x SD-card
1x SIM-card
1x W-LAN-Antenna connector (802.11 b/g/n wi-fi adapter onboard)
1x HDMI
Secondary IO
Secondary I/O Misc.

Internal IO (not externally accessable, without modifications)

2x Serial
4x TTL UART
2x USB 2.0
18/24Bit LVDS
24x GPIO
1x Amplifier for 2x 6W loudspeaker
1x SATA-Port
1x RTC
Display
Display Type
LED backlit 10.1" LCD
Resolution
1280 × 800 px
LCD Colors
262K
Viewing Angle
178/178
Luminance
400
LCD Misc.

IP Rated Front Panel IP65
Screen diagonal (Inch/cm): 10.1/25.65
Display active screen size: 21.70x—13.60
Aspect ratio: 16:10
Physical resolution: 1280x—800
Maximum showable resolution (TPCs: external): 1920x—1200
Colours displayed: 262K
Brightness (cd/m2): 400
Contrast: 800:1
Typical reaction time Tr/ Tf (ms): 15/15
Visual Angle horizontal/vertical (°): 178/178
Backlight / Backlight Lifetime (hours): LED / 15,000
Expansion
Bus Misc.

Optional Expansion: (build to order options)

  • Bluetooth 4.0 adaptor
  • GPS-module
Misc
Operating Systems
EMAC OE Linux, Android

Mechanical and Environmental

Dimensions
Size
10.87" ×7.56" ×1.34" (276mm × 192mm × 34mm)
Weight
2 kg
Power Requirements
Power Misc.

Working Power 8~18V or POE+
Power Consumption 18W
Stand-By Consumption  <0.5W
Environmental
Low Operating Temperature-25 C (-13 F)
High Operating Temperature75 C (167 F)
Upper Operating Humidity
90%

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-100E 10" AllWinner 1GHz Dual-Core, 1GB RAM, 8GB NAND Flash, 1x COM, 2x USB2, 1x GbE(POE), WIFI, HDMI, Android (-20 to 70*C) $373.00
PPC-101E-0 10.1" AllWinner 1GHz Dual-Core, 1GB RAM, 8GB NAND Flash, 1x COM, 2x USB2, 1x GbE(POE), WIFI, HDMI, Android (-20 to 70*C) $404.00

Additional Options
