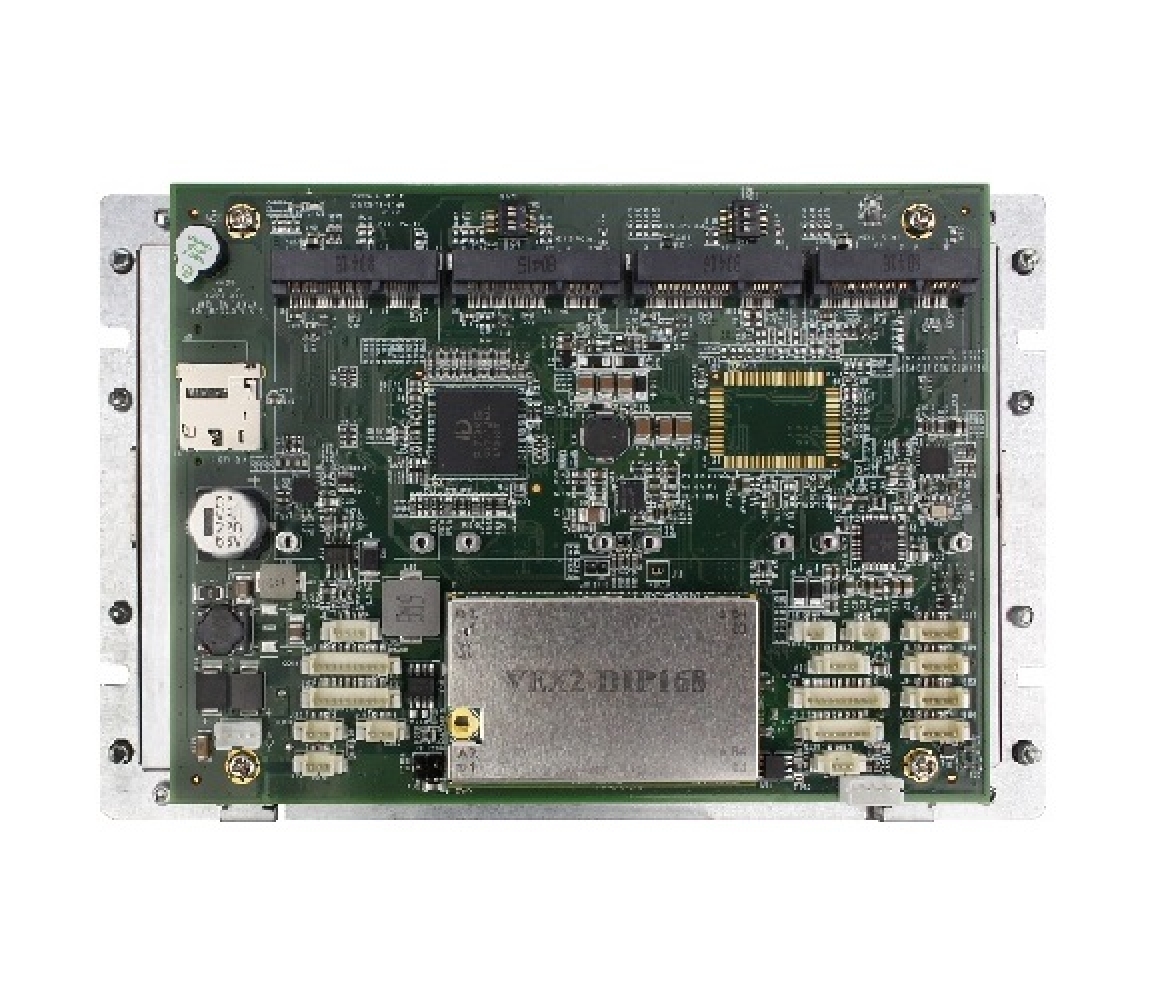

VOX-070T-EX2

  • DM&P Vortex86EX2 Master CPU 600MHz (Optional Slave CPU 400MHz)
  • 4x Mini-PCIe slots
  • 5x Serial ports, CAN 2.0A or 2.0B, 10/100 LAN

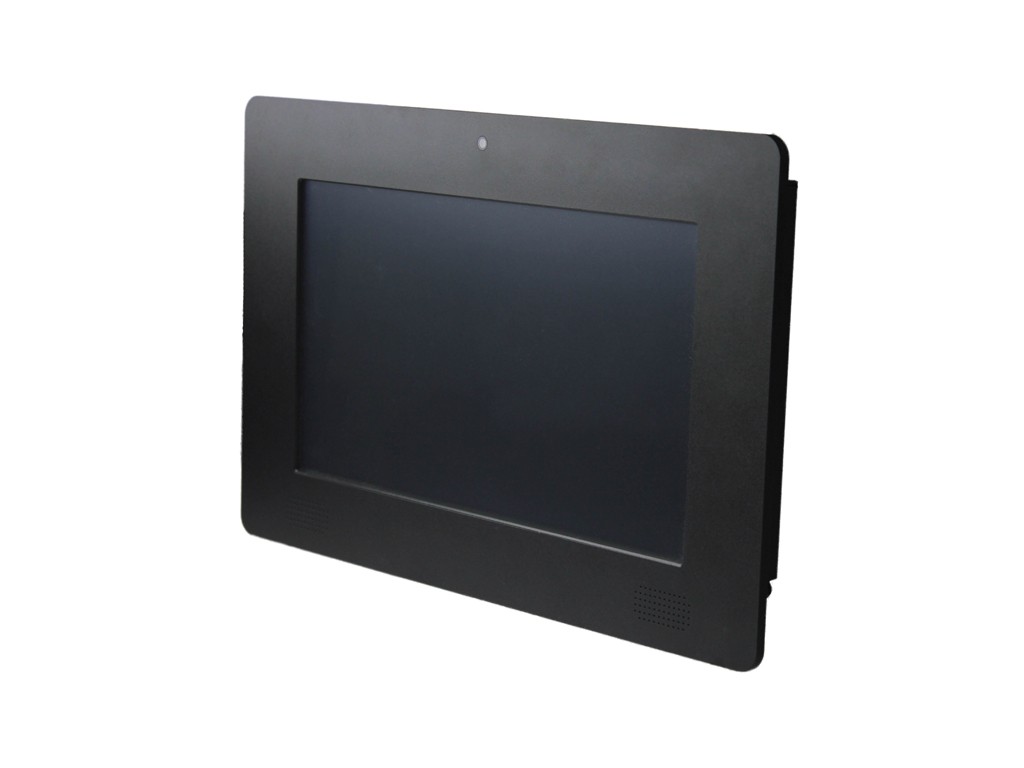

We are proudly offering a brand new embedded Panel PC, which offers fanless design and low power consumption, and IP65 front panel. The VOX-070-TS-EX2 series are powered by DMP’s latest Vortex86EX2, the 3rd generation SoCs of Vortex86 family, and dual-channel 1GB / 2GB DDRIII chipset that handles processing more efficiently and provides faster performance. The resistive touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments.

Features

  • DM&P Vortex86EX2 Master CPU 600MHz (Optional Slave CPU 400MHz)
  • 4x Mini-PCIe slots
  • 5x Serial ports, CAN 2.0A or 2.0B, 10/100 LAN
  • DM&P SoC Vortex86EX2- 600MHz
  • 1GB / 2GB DDR3 onboard
  • 4U/5S/CAN/GPIO/LAN/4 MiniPCIe/Audio/SD Card
  • 7 inch TFT 800x480 Resolution LCD with resistive touch screen
  • Operation Temperature: 0 ~ +50°C / -20 ~ +60°C (Optional) / -30°C to +80°C (Option)
  • Optional: GPU-A9160
  • Optional: 4GB eMMC

Overview

We are proudly offering a brand new embedded Panel PC, which offers fanless design and low power consumption, and IP65 front panel. The VOX-070-TS-EX2 series are powered by DMP’s latest Vortex86EX2, the 3rd generation SoCs of Vortex86 family, and dual-channel 1GB / 2GB DDRIII chipset that handles processing more efficiently and provides faster performance. The resistive touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications. The embedded VOX-070-TS-EX2 is ready to be the HMI for your IIoT devices

The new VOX-070-TS-EX2 includes the versatile I/O ports, 10/100Mps Ethernet, and support WLAN, etc. can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption and fanless design. The expandable customize I/O ports by MiniPCIe slots can be accommodated connectivity requirements to industrial machine platforms and industrial automation equipment’s needs.

The VOX-070-TS-EX2 supports Windows Embedded CE 6.0, Windows Embedded Compact 7, Windows Embedded Standard 2009 and Linux to meet ready-to-market demand and provide competitive advantages for customers

Specifications

Processor
CPU
DM&P SoC Vortex86EX2 Master CPU
Clock Speed
600 MHz
Memory
RAM
up to 2GB
RAM Type
DDR3 Onboard
Primary Flash
4GB eMMC onboard
Secondary Flash
SD Card (optional)
BIOS/ Bootloader
Coreboot BIOS

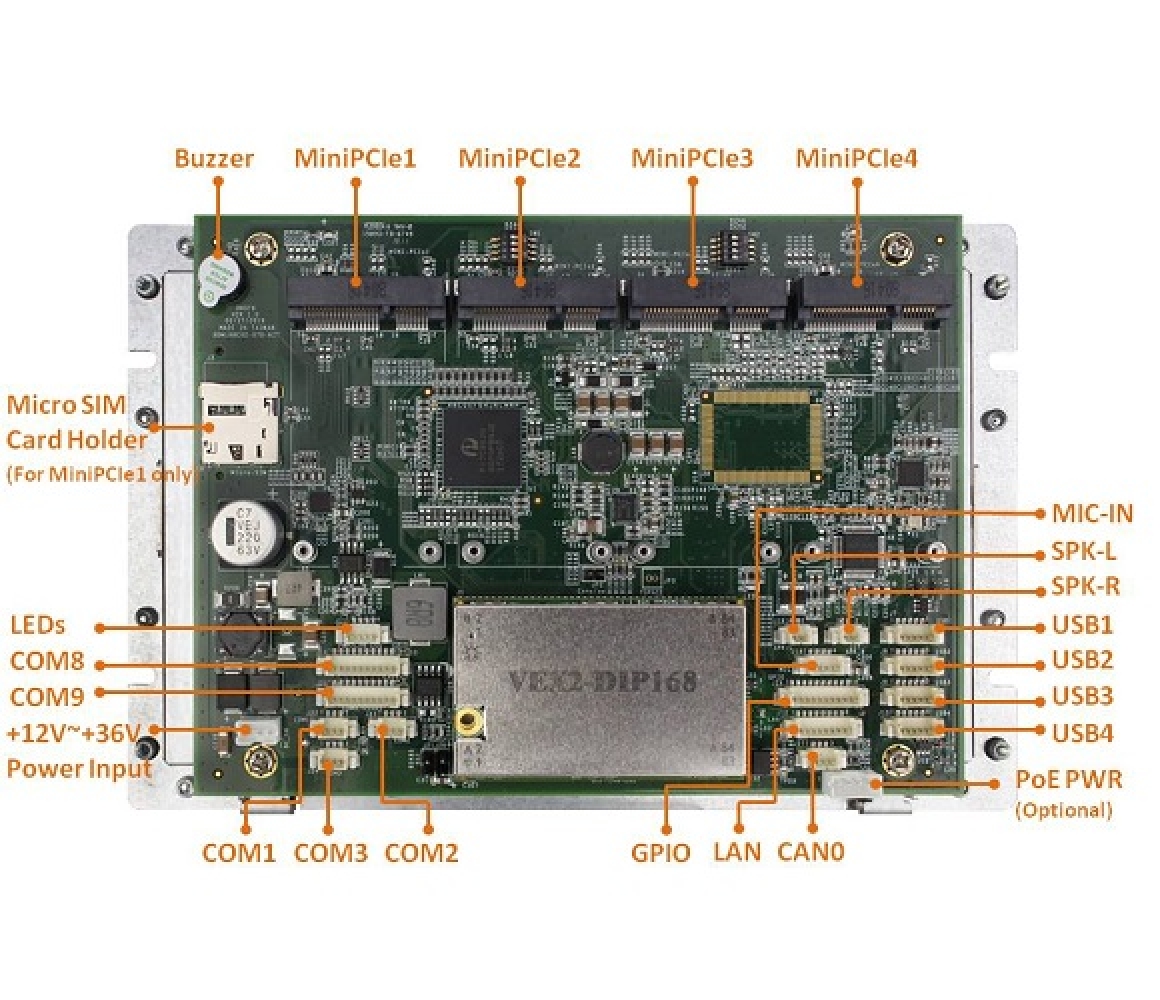

Primary IO
GPIO
8x GPIO
Disk Interface
SD CARD
Audio
Stereo speaker outputs
Ethernet
10/100 LAN
USB
4x USB 2.0
Serial Ports
5x Serial Ports
Secondary IO
CAN
1x CAN 2.0B Port
Touch
4 wire analog resistive Touchscreen
Display
Display Type
7" WVGA TFT LCD
Resolution
800 × 480 px
Luminance
400 nit
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental

Dimensions
Size
7.323" ×4.764" ×1.13" (186mm × 121mm × 28mm)
Weight
485 g (1 lbs)
Power Requirements
Power Misc.

+12 to +36VDC Power Input

7 Watts typical power draw
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Environmental Misc.

0°C to +50°C
-20°C to +60°C (Option)
-30°C to +80°C (Option)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price

Additional Options
