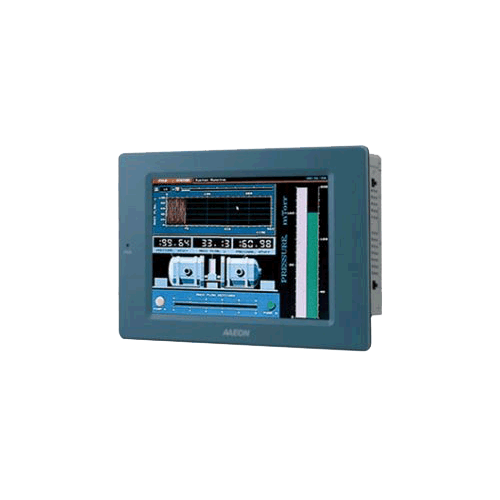

22Ppi111 55 The PPC-1083 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 8.4" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast socket, the PPC-1083 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be VESA 75 mounted or Panel mounted.

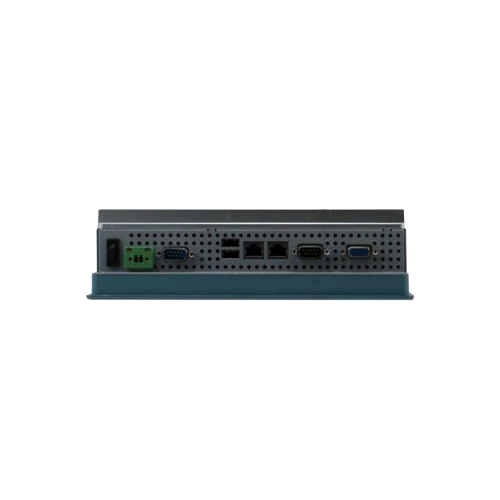

Features
- 8.4 ” SVGA HMI Touch Panel PC
- Intel® Atom™ D2550, 1.86 GHz
- Up to 4 GB DDR3 8000/1066 MHz RAM
- 1x RS-232, 1x RS-232/422/485
- 2x 10/100/1000 Base-TX with RJ-45
- 2x USB 2.0 Ports
- 2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal)
- 1x Mini-Card
- IP65 Front bezel
- Display Type: 8.4" TFT-LCD
- Max. Resolution: 800 x 600
- Max. Colors: 262K
- Luminance: 450 cd/m2
- Viewing Angle: 160°(H) 140°(V)
- Back Light: LED
- Back Light MTBF Hours: 50,000
- Touchscreen Type: 5-wire Analog Resistive
- Light Transmission: >80%
- Life Time: 10 Million Times Activations
- 1x VGA
- 1x Power Input
- 1x Power Button
- Power Requirements: DC 12V w/ 2-pin terminal block
- Operating Temperature: 32°F ~ 131°F (0°C ~ 55°C) w/ Airflow & 32°F ~ 122°F (0°C ~ 50°C) w/o Airflow
- Weight: 4.4 lb (2Kg)
- Dimension 9.65” x 7.2” x 2.67” (245mm x 183mm x 67.9mm)
Overview
The PPC-1083 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 8.4" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast socket, the PPC-1083 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be VESA 75 mounted or Panel mounted.
For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.
| Manuals | |
|---|---|
| AHP-1083 Manual 2nd Ed.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| AHP-1083.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ D2550 |
| Clock Speed | 1.86 GHz |
| Memory | |
|---|---|
| RAM | Up to 4 GB DDR3 800/1066 MHz |
| Primary Flash | CFAST |
| Secondary Flash | 1 x 2.5 Inch SATA |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| Disk Interface | 2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal) |
| Video Out | 1x VGA |
| Ethernet | 2x 10/100/1000 Base-TX with RJ-45 |
| USB | 2x USB 2.0 Ports |
| Serial Ports | 1x RS-232 & 1x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Touch | 5-wire Analog Resistive Touch Screen |
| Display | |
|---|---|
| Display Type | 8.4" TFT-LCD |
| Resolution | 800 × 600 px |
| LCD Colors | 262K |
| Viewing Angle | 160°(H), 140°(V) |
| Luminance | 450 cd/m2 |
| LCD Misc. | Max. Resolution: 800 x 600 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 9.65" ×7.2" ×2.67" (245mm × 182mm × 67mm) |
| Weight | 4.4 lb |
| Dimensions Misc. | Dimensions: 9.65” x 7.2” x 2.67” (245mm x 183mm x 67.9mm) |
| Power Requirements | |
|---|---|
| Power Misc. | Power Requirements: DC 12V w/ 2-pin terminal block |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 55 C (131 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Operating Temperature: 32°F ~ 131°F (0°C ~ 55°C) w/ Airflow & 32°F ~ 122°F (0°C ~ 50°C) w/o Airflow
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C) Storage Humidity 5%~90% @40°C, non-condensing
|
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PPC-1083HTT-A1-1010 | HMI PPC ATOM D2550 1.8GHz.8.4" LCD with 450 nits Luminance, 12V, 5-wire Resistive Touch, 2G RAM | $931.33 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-AON-xx | EMAC OE Linux 5.x for ARM (Free installation at time of purchase of SBC & media) | Free |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
