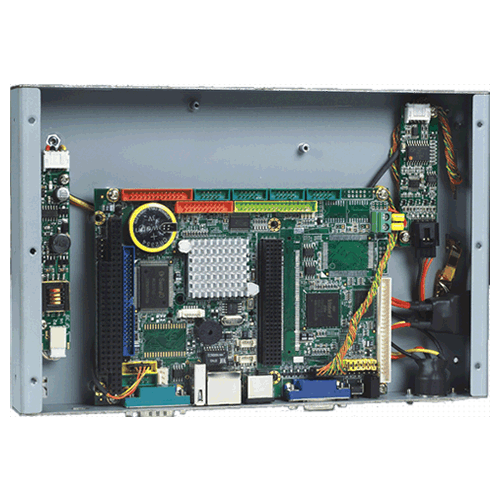

VOX-084 TFT LCD 8.4" Touch PC
- 8.4" Modular Open-Frame Design
- DM&P Vortex86DX2 800MHz or Vortex86DX3 1GHz processor
- Up to 1GB on-board DDR2 SDRAM
- 4x Serial Ports, 3x USB 2.0 Ports
- 4-Wire Resistive Touch Screen
22Vpi711VV55
22Vpi911VV55 Setting up a Panel PC can be a Puzzling experience. However, when purchased with an Operating System and Compact Flash, the VOX-084 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-084 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
Features
- Fanless DM&P Vortex86DX2 800MHz or Vortex86DX3 1GHz processor.
- Based on the VDX3-6726 or VDX2-6526
- Inexpensive Open-Frame Design
- 10/100BaseT Ethernet
- 4x Serial ports with handshake
- 3x USB 2.0 Host ports (one USB taken by Touchscreen)
- Up to 1 GB of On-Board SDRAM
- Audio with Mic-In/Line-In/Line-Out
- 8" Graphic LCD Interface
- SVGA (800 x 600) LCD Resolution
- Touchscreen Interface
- 47 Watt Power Supply Included
- EMAC OE embedded operating system with Desktop. (web browser in Kiosk Mode available.)
- Windows Embedded Standard Build Image available
- Windows CE 6.0 BSP and SDK available
- Windows Embedded Compact 7 BSP and SDK available
- Can be utilized with other SBCs.
Overview
Setting up a Panel PC can be a Puzzling experience. However, when purchased with an Operating System and Compact Flash, the VOX-084 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-084 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
| Manuals | |
|---|---|
| vox-084.pdf | Download (PDF) |
| VMXP-6427_UM.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| VOX-084-TS-D2-D3_V2.0.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | DM&P Vortex86DX2 or Vortex86DX3 |
| Clock Speed | 800 MHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | Up to 2GB DDR3 Onboard |
| RAM Type | 512 MB or 1 GB DDR2 Onboard |
| Primary Flash | SATA DOM |
| BIOS/ Bootloader | AMI BIOS |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| GPIO | 16x GPIO Lines |
| Disk Interface | 1x SATA |
| Audio | ALC 262 (HD Audio) with Mic-In/Line-In/Line-Out |
| Video Out | VGA, TFT or LVDS ouput with 16MB or 32MB of Video Memory |
| Ethernet | 1x 10/100 Base-T Ethernet with on-Board RJ-45 connector 2x 10/100/1000 LAN headers |
| USB | 3x USB 2.0 Ports |
| Serial Ports | 4x RS232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| LPT Port | Yes
|
| PS/2 | Yes
|
| Touch | 1x 4-wire Resistive Touch Screen Interface |
| Display | |
|---|---|
| Display Type | 8.4 " TFT Color LCD |
| Resolution | 800 × 600 mm |
| Pixel Pitch | 0.213 × 0.213 mm |
| LCD Colors | 256K |
| Viewing Angle | 80/80/80/60 |
| Luminance | 250 cd/m2 |
| LCD Misc. |
Touchscreen
|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
| Operating Systems Compatibility |
|
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 9" ×5.9" ×1.1" (228mm × 149mm × 27mm) |
| Dimensions Misc. | 230.4mm x 150mm x 29mm (9" x 5.9" x 1.1") |
| Power Requirements | |
|---|---|
| Power Misc. |
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 50 C (122 F) |
| Environmental Misc. | Wide temperature options aviliable |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| VOX-084-0200 | 8.4" OPEN FRAME PPC W/TOUCHSCREEN 512MB RAM & PS | $667.00 |
| VOX-084-0300 | 8.4" OPEN FRAME PPC W/TOUCHSCREEN 1GB RAM & PS | $711.25 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| EMAC OE Linux 4.0 PPC x86 | EMAC OE Linux 4.0 PPC x86 (old version, may have install fee at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
