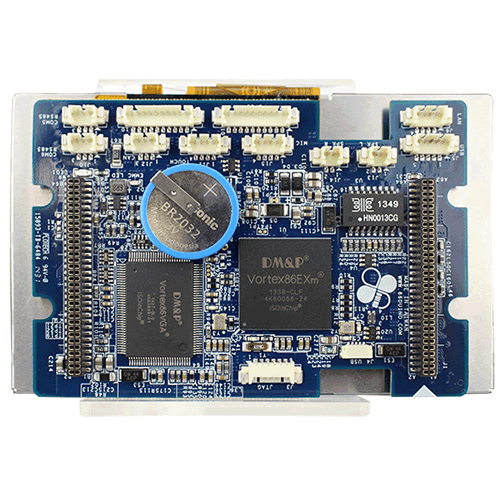

HMI-043T Open Frame
- 4.3” TFT LCD with Resistive Touch Screen
- DMP x86 Processor 400MHz Onboard
- 128/256MB System Memory Onboard
- eMMC Flash Memory Onboard (Optional)
- RS-232/485/CAN/LAN/USB/GPIO Support
- Expansion I/O bus Support
- Open Frame system to integrate into your own housing
- Fanless and low power consumption
22Ppi611PP55
22Hpi111PP55 The 4.3″ WQVGA (480×272) PPC-043T is the smallest and most budget friendly in EMAC’s x86 Panel PC product offerings, this one has all the benefits of an x86 architecture platform in an industrial package. The PPC-043T is enclosed in a front IP65 bezel, but also available with an closed frame version available for companies wanting to integrate with their own branding/style. The PPC-043T offers a flexible solution suited for BMS, heating control, environmental monitoring – literally any application where the power of a PC is beneficial, but costs previously dictated the Panel PC route wasn’t an option.
Features
- 4.3” TFT LCD with Resistive Touch Screen
- DMP x86 Processor 400MHz Onboard
- 128/256MB System Memory Onboard
- eMMC Flash Memory Onboard (Optional)
- RS-232/485/CAN/LAN/USB/GPIO Support
- Expansion I/O bus Support
- Open Frame system to integrate into your own housing
- Fanless and low power consumption
- LCD Colors: 16.7M
- Vertical 120°, Horizontal 140°
- Resolution (Pixel): 480(W) x 272(H)
- Touch Screen: 4-wire Analog Resistive
- Surface Properties: 3H / Anti-Glare
- Surface Properties: 3H / Anti-Glare
- Contrast Ratio: 500:1
- 1x 10/100Mbps Ethernet, 1x 8-bit GPIO
- 1x CAN Bus
- 1x 8-bit GPIO
- 2x USB 2.0 Ports
- HD Audio-Realtek ALC262 CODEC, 1x MIC-in, 1x SPK-L, SPK-R (connector)
- EMAC OE Linux
- Power Requirement: 5V
- Typical Running Current Consumption 1A
- Operating Temperature: -20°- 60°
- Upper Operating Humidity: 90%
- Dimentions: 105.5 x 67.2 x 13.6mm (4.15 x 2.65 x 0.54 inches)
Overview
The 4.3″ WQVGA (480×272) PPC-043T is the smallest and most budget friendly in EMAC’s x86 Panel PC product offerings, this one has all the benefits of an x86 architecture platform in an industrial package. The PPC-043T is enclosed in a front IP65 bezel, but also available with an closed frame version available for companies wanting to integrate with their own branding/style. The PPC-043T offers a flexible solution suited for BMS, heating control, environmental monitoring – literally any application where the power of a PC is beneficial, but costs previously dictated the Panel PC route wasn’t an option.
| Manuals | |
|---|---|
| HMI-043T-OP_UM_v1r5A.pdf | Download (PDF) |
| HMI-043T-OP_UM_v1r0A.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| HMI-043T-OP_DS_V2.0.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | DMP Vortex86EXm |
| Clock Speed | 400 MHz |
| Memory | |
|---|---|
| RAM | Up to 256MB DDR3 onboard |
| RAM Type | 128 / 256MB DDR3 On-board |
| Primary Flash | 512MB/1GB/2GB NAND Flash (Optional) |
| Secondary Flash | 8MB eMMC Flash On-Board (Optional) |
| Primary IO | |
|---|---|
| GPIO | 1x 8-bit GPIO |
| Audio | HD Audio-Realtek ALC262 CODEC |
| Ethernet | 10/100Mbps Ethernet |
| USB | 2x USB 2.0 Ports |
| Serial Ports | 1x RS-232, 2x RS-485 |
| Secondary IO | |
|---|---|
| CAN | 1x CAN Bus |
| Display | |
|---|---|
| Display Type | 4.3” WQVGA TFT LCD |
| LCD Colors | 16.7M |
| Viewing Angle | Vertical 120°, Horizontal 140° |
| Luminance | 350 cd/m² |
| LCD Misc. | Resolution (Pixel): 480(W) x 272(H)
Touch Screen: 4-wire Analog Resistive
Surface Properties: 3H / Anti-Glare
Surface Properties: 3H / Anti-Glare
Contrast Ratio: 500:1
|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, FreeRTOS |
| Operating Systems Compatibility | Windows CE 6.0 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.15" ×2.65" ×0.54" (105mm × 67mm × 13mm) |
| Dimensions Misc. | 105.5 x 67.2 x 13.6mm (4.15 x 2.65 x 0.54 inches)
|
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Current | 1 A |
| Environmental | |
|---|---|
| Low Operating Temperature | -20 C (-4 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| HMI-043T-41B-O | HMI-043T-EM41B-O, 4.3" HMI-043T open frame, Vortex86EX CPU, 128MB RAM, 512MB eMMC Flash, 1x Serial, 1x CAN, 2x USB2, 1x 10/100 LAN, 8x GPIO, DC7-24V | $137.00 |
| HMI-043T-EM41N-O | HMI-043T-EM41N-O, 4.3" HMI-043T open frame, Vortex86EX CPU, 128MB RAM, 1x Serial, 1x CAN, 2x USB2, 1x 10/100 LAN, 8x GPIO, DC7-24V | $124.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| CAB-90-001-R | HMI-043T Open Frame Series cable set | $17.00 |
| Operating Systems | ||
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
