PPC-150T
- 15” TFT LCD with Resistive or Capacitive Touchscreen
- DMP Vortex86 DX CPU Onboard
- 512MB / 1GB / 2GB Memory Onboard
- Compact Flash or SATA
- Fanless and Low Power Consumption
- Metal Chassis with Compact Design
22Ppi411 55

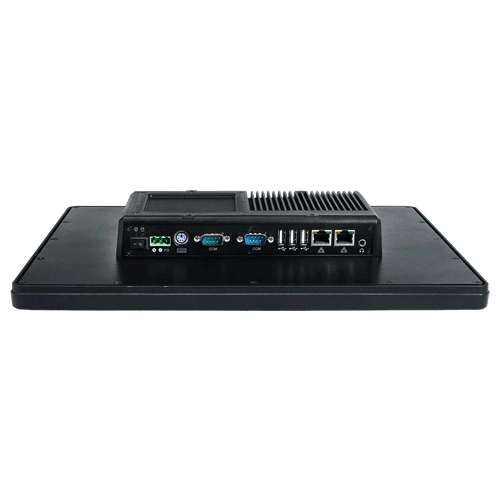

22Ppi211 55 15" Panel PC- PPC-150T, comes with 15" industrial LCD and touchscreen(Analog Resistive or Capacitive), IP65 standard front panel, waterproof and dustproof, and wide operating temperature range from 0°C to 50°C (32°F to 122°F) or optional -20°C to 60°C (-4°F to 140°F), metal chassis with compact design.
Features
- Processor
- DMP Vortex86DX3 1 GHz
- DMP Vortex86DX2 933 MHz
- 512MB / 1GB / 2GB DDRII RAM Onboard
- 2x Serial Ports (RS-232/422/485)
- 5x RS232 Serial ports (optional)
- 3x USB 2.0 Ports
- Integrated 10/100Mbps Ethernet
- 10/100/1000 BaseT Gig Ethernet(optional)
- HD Audio-Realtek ALC262 CODEC
- SATA Slim DOM
- Compact Flash Type I/II slot or SD slot(optional, removes compact flash)
- 15" XGA TFT LCD, 1024x768, Analog Resistive
- Touch Screen
- Analog resistive
- Capacitive (up to 10 points)
- Wi-Fi (Optional)
- DOS, Linux, Windows XP, Windows Embedded Standard 2009 or Windows Embedded Standard 7
- Voltage: +12VDC to +24VDC
- Operating Temperature: -0° - 50° C
- Optional wide operating Temperature: -20°C to 60°C
- 0% ~ 90% Relative Humidity, Non-Condensing
- Weight: 3.8 kg
- Dimensions: 354.85 x 208.85 x 55 mm (13.97 x 11.06 x 2.16 inches)
Overview
15" Panel PC- PPC-150T, comes with 15" industrial LCD and touchscreen(Analog Resistive or Capacitive), IP65 standard front panel, waterproof and dustproof, and wide operating temperature range from 0°C to 50°C (32°F to 122°F) or optional -20°C to 60°C (-4°F to 140°F), metal chassis with compact design.
| Manuals | |
|---|---|
| PPC-150T_UM_v1r0A.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PPC-150T-D2-D3_DS.pdf | Download (PDF) |
| PPC-150P-D2-D3_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Vortex86DX3 |
| Clock Speed | 1 GHz |
| Processor Misc. | Processor:
|
| Memory | |
|---|---|
| RAM | up to 2GB DDR2 Onboard |
| RAM Type | DDR2 Onboard |
| Primary Flash | Compact Flash or SATA DOM |
| Memory Misc. | SD slot (Optional) |
| Primary IO | |
|---|---|
| Disk Interface | CompactFlash Type II socket, SD socket, or SATA Slim DOM |
| Audio | HD Audio-Realtek ALC262 CODEC |
| Ethernet | Integrated 10/100Mbps Ethernet |
| Wireless | internal WLAN (Optional) |
| USB | USB Ports (Version 2.0) x 3 |
| Serial Ports | 2x RS-232 / 422 / 485 (5x RS232 optional) |
| Primary I/O Misc. | Ethernet-
WIFI (Optional) |
| Secondary IO | |
|---|---|
| Touch | Analog Resistive |
| Display | |
|---|---|
| Display Type | XGA TFT LCD |
| Resolution | 230 × 306 mm |
| LCD Colors | 262,144 |
| Viewing Angle | Angle Vertical 140° / Horizontal 160° |
| Luminance | 250 cd/m2 / 350 cd/m2 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) , WES 7 - Windows Embedded Standard 7 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 13.97" ×8.22" ×2.16" (354mm × 208mm × 54mm) |
| Weight | 4 kg |
| Power Requirements | |
|---|---|
| Power Misc. | Voltage: +12VDC / +24VDC |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 50 C (122 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Optional Wide temp: -20°C to 70°C |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PPC-150T-D2N4N | 15” Panel PC w/1GB Memory / 3USB / AUDIO / LAN / 2COM / DC12~24V / 0° to 50° | $878.00 |
| PPC-150T-D2W4N | 15” Panel PC w/1GB Memory / 3USB / AUDIO / LAN / 2COM / DC12~24V / -20° to 60° | $928.00 |
| PPC-150T-D2W5N-GE | 15” Panel PC w/2GB Memory / 3USB / AUDIO / LAN / GigaLAN /2COM / DC12~24V / -20° to 60° | $953.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-USB-00006-R | USB WLAN WiFi Module Internal | $31.00 |
| PER-FLS-00053-R | 8GB CompactFlash Card Standard (-25°C to 85°C) | Call |
| Operating Systems | ||
| SL05x-AON-xx | EMAC OE Linux 5.x for ARM (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
