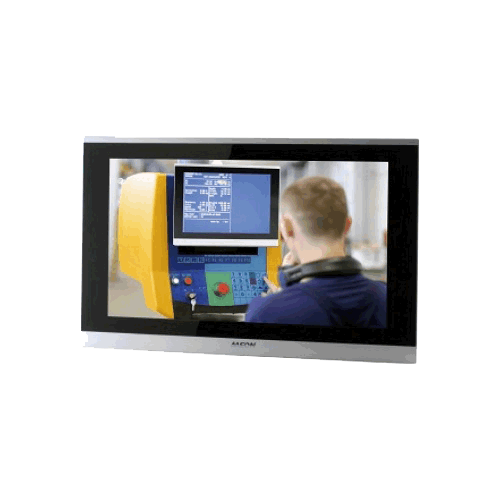

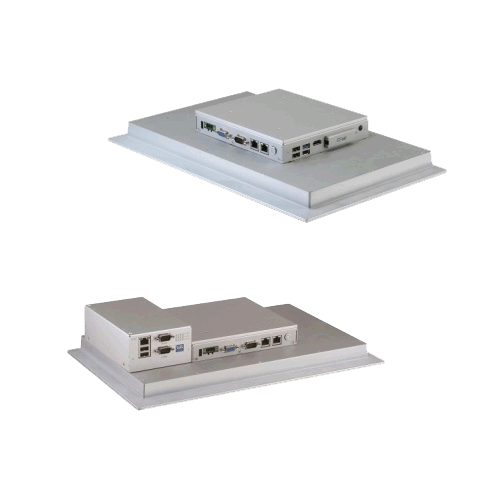

PPC-2155 TFT LCD LED 15.6" HMI Touch

  • 15.6” TFT LCD LED Expandable HMI Touch Panel
  • Intel® Celeron® J1900 or N2807
  • Up to 8GB DDR3L Memory
  • 1x Serial Port
  • 1x USB 3.0 & 3x USB 2.0 Ports
  • 1x HDMI, 1x VGA
  • 2x Gigabit Ethernet

With growing up in Multi-Touch technology, the PPC-1581 features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, The Manufacturer's iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.

Features

  • 15.6” TFT LCD LED Expandable HMI Touch Panel
  • Intel® Celeron® J1900 2 GHz / N2807 1.58 GHz
  • Up to 8GB DDR3L 1333MHz (J1900) /  Up to 4GB (N2807)
  • 1x RS-232/422/485
  • 1x USB 3.0 Port, 3x USB 2.0 Ports
  • 1x HDMI, 1x VGA
  • 2x 10/100/1000Base-TX with RJ-45
  • 1x 2.5 Inch SATA 2.5 HDD Bay, 1x CFast™
  • 2x Mini card (Full Size)
  • 15.6” TFT LCD LED Expandable HMI with 5-Wireless Resistive Touch
  • LCD Display type: 15.6" TFT-LCD, LED backlight
  • Max Resolution: 1366 x 768
  • Max. Colors: 16.7M colors (8-bit for R,G,B)
  • Luminance: 400 cd/m2
  • Viewing Angle: 160°(H), 140°(V)
  • Back Light MTBF Hours: 50,000
  • Touchscreen Type: P-CAP / 5-Wireless resistive
  • 1x Audio Mic-in Line-out
  • AMI BIOS
  • Watchdog Timer
  • Operating Temperature: -20°C~60°C with industrial grade device (with 0.5 m/s air flow, according to IEC68-2-14, CPU: N2807)
  • -20°C~55°C with industrial grade device (with 0.5 m/s air flow, according to IEC68-2-14, CPU: J1900)
  • Storage Temperature: -20 ~ 70°C (-4 ~ -158°F)
  • Operating Humidity: 90% @ 40°C, non-condensing
  • Power Requirement: DC 9 ~ 30 V
  • Gross Weight: 3 kg (6.6 lb)
  • Dimensions: (W x H x D): 420 x 265 x 60 mm (16.5 x 10.4 x 2.4”)

Overview

With growing up in Multi-Touch technology, the PPC-1581 features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, The Manufacturer's iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.

Manuals
OMNI-2155 manual.pdf
Download (PDF)
Data Sheets
OMNI-2155.pdf
Download (PDF)

Specifications

Processor
CPU
Intel® Celeron® J1900 2 GHz / N2807 1.58 GHz
Clock Speed
2 GHz
Processor Misc.
  • Intel® Celeron® J1900 2 GHz
  • Intel® Celeron® N2807 1.58 GHz
Memory
RAM
up to 8GB DDR3L Sodimm
RAM Type
Up to 8GB DDR3L 1333MHz (J1900) / Up to 4GB (N2807)
Primary Flash
CFAST
Secondary Flash
1x 2.5 inch SATA HDD/SSD or DOM
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
1x 2.5 Inch SATA 2.5 HDD Bay, 1x CFast™
Audio
1x Audio Mic-in Line-out
Video Out
1x HDMI, 1x VGA
Ethernet
2x 10/100/1000Base-TX with RJ-45
USB
1x USB 3.0 Port, 3x USB 2.0 Ports
Serial Ports
1x RS-232/422/485
Secondary IO
Touch
15.6” TFT LCD LED with 5-Wireless Resistive Touch
Display
Display Type
15.6" TFT-LCD, LED backlight
Resolution
1366 × 768 px
LCD Colors
16.7M colors (8-bit for R,G,B)
Viewing Angle
160°(H), 140°(V)
Luminance
400 cd/m2
LCD Misc.
  • Max Resolution: 1366 x 768
  • Back Light MTBF Hours: 50,000
  • Touchscreen Type: P-CAP or 5-Wireless resistive
Expansion
Bus Misc.

OMNI Slot for OMNI expansion Modules
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental

Dimensions
Size
16.5" ×10.4" ×2.4" (419mm × 264mm × 60mm)
Weight
6.6 lb
Dimensions Misc.

Dimension (mm) 420 mm x 265 mm x 60 mm
Power Requirements
Power Misc.
  • Power Requirement: DC 9 ~ 30 V
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Environmental Misc.
  • Operating Temperature: -20°C~60°C with industrial grade device (with 0.5 m/s air flow, according to IEC68-2-14, CPU: N2807)
  • -20°C~55°C with industrial grade device (with 0.5 m/s air flow, according to IEC68-2-14, CPU: J1900)
  • Storage Temperature: -20 ~ 70°C (-4 ~ -158°F)
  • Operating Humidity: 90% @ 40°C, non-condensing
