The PPC-04-3354, an ultra compact Panel PC with a 4.3 inch WQVGA (480 x 272) TFT color LCD and a resistive touch screen.
The 4.3″ WQVGA (480×272) PPC-043T is the smallest and most budget friendly in EMAC’s x86 Panel PC product offerings, this one has all the benefits of an x86 architecture platform in an industrial package. The PPC-043T is enclosed in a front IP65 bezel, but also available with an closed frame version available for companies wanting to integrate with their own branding/style. The PPC-043T offers a flexible solution suited for BMS, heating control, environmental monitoring – literally any application where the power of a PC is beneficial, but costs previously dictated the Panel PC route wasn’t an option.
The DEV-SOM36, an ultra compact Panel PC designed with the TI DP83640 IEEE 1588 PTP PHYTER onboard, including a 4.3 inch WQVGA (480 x 272) TFT color LCD and a resistive touch screen. The dimensions of the DEV-SOM36 are 4.8” by 3.0”, about the same dimensions as that of popular touch cell phones. The DEV-SOM36 is small enough to fit in a 2U rack space or on the end of a 2U enclosure.

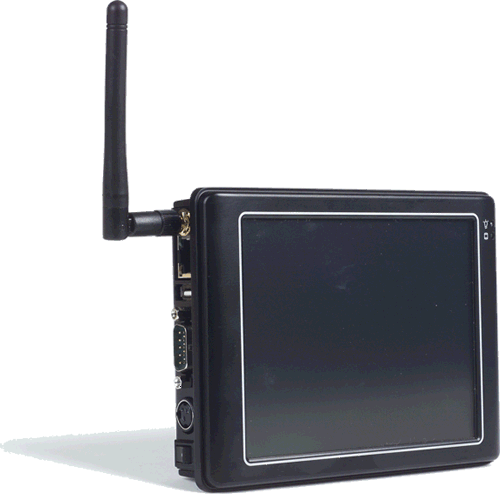

PDX3-057T
- 5.7” VGA TFT LCD with Resistive Touch Screen
- DM&P Vortex86DX3 Onboard 1GHz
- 1GB / 2GB DDR3 System Memory Onboard
- 1GB / 2GB Flash Onboard (Optional)
- Fanless & Low Power Consumption
- Metal Chassis with Compact Design
32Ppi511PP54 PDX3-057T is an ultra-compact platform for the present demanding embedded and productive applications. It has new Vortex86 DX3 fanless onboard CPU which consumes only minimum power requirement when running at 1 GHz, and 1 GB DDR3 onboard memory provides faster data transfer rate. By using 5.7” TFT LCD analog resistive touch screen, PDX3-057T becomes the perfect choice for a limited budget.
Features
- 5.7” VGA TFT LCD with Resistive Touch Screen
- DM&P Vortex86DX3 Onboard 1GHz
- 1GB / 2GB DDR3 System Memory Onboard
- Internal Drives: CompactFlash Card slot, Micro SD slot or Flash Memory onboard (CF default, others Build to order Option)
- Fanless & Low Power Consumption
- Metal Chassis with Compact Design
- Resolution: (Pixel) 640(W) x 480 (H)
- Colors: 262,144
- View Angle: Vertical 100° / Horizontal 140°
- Brightness: 500 cd/m2
- Backlight Life: 50,000 hours
- Contrast Ratio: 300 : 1
- Cache L1: 16KB I-Cache, 16KB D- Cache / L 2: 512KB Cache
- Watchdog Timer Software Programmable from 30.5u to 512 Seconds x 2 Sets
- 1x RS-232/422/485 Serial Port
- 2x USB 2.0 Ports
- 1x 10/100 Ethernet Integrated
- Audio HD Audio-Realtek ALC262 CODEC
- Touch Screen: Analog Resistive
- Expansion Slot: None
- Power Requirement: Single Voltage +5VDC ( 5A )/ Multi Voltage +8~+35VDC ( 8A )
- Power Consumption: 20W (Ma x.)
- Operating Temperature: 0~+50∘C (32~+122∘F) / -20~+60∘C (-4~+140 ∘F) Optional (-I)
- Storage Temperature: -30~ +70∘C (14 ~+158∘F)
- Operating Humidity: 0% ~ 90% Relative Humidity, Non-Condensing
- Operating System: Linux, Win CE, Win XP, Win 7, Windows Embedded Standard
- Dimensions: 152x112x33mm (5.98x4.41x1.3 inches)
- Weight: 500g
- Certificate: CE / FCC / VCCI / Vibration / Shock
Overview
PDX3-057T is an ultra-compact platform for the present demanding embedded and productive applications. It has new Vortex86 DX3 fanless onboard CPU which consumes only minimum power requirement when running at 1 GHz, and 1 GB DDR3 onboard memory provides faster data transfer rate. By using 5.7” TFT LCD analog resistive touch screen, PDX3-057T becomes the perfect choice for a limited budget. In additional, the integrated 10/100M Ethernet port supplies the communication capability which makes PDX3-057T can be more widely used when running with Linux, Windows CE, Windows XP, Windows 7, Windows Embedded environments to become the perfect solution for system integration.
| Manuals | |
|---|---|
| PDX3-057T_UM_v1r1A.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PDX3-057T-V1.3.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | DM&P Vortex86DX3-Fanless Onboard |
| Clock Speed | 1 GHz |
| Processor Misc. | Cashe L1: 16KB I-Cache, 16KB D- Cache / L 2: 512KB Cache Fanless and Low Power Consumption Metal Chassis with Compact Design |
| Memory | |
|---|---|
| RAM | Up to 2GB DDR3 Onboard |
| RAM Type | DDR3 Memory Onboard |
| Primary Flash | 1G / 2G Flash Memory onboard (Optional) |
| Secondary Flash | CF Card and Micro SD slot (Optional) |
| Primary IO | |
|---|---|
| Disk Interface | Compact Flash Type I / II slot or Micro SD slot (build Option) |
| Audio | HD Audio-Realtek ALC262 CODEC |
| Ethernet | 1x 10/100 Ethernet Integrated |
| USB | 2x USB 2.0 Ports |
| Serial Ports | 1x 232/422/485 Ports |
| Primary I/O Misc. | Watchdog Timer: Software Programmable from 30.5u to 512 Seconds x 2 Sets |
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Display | |
|---|---|
| Display Type | 5.7" VGA TFT LCD with Resistive Touch Screen |
| Resolution | 640 × 480 px |
| LCD Colors | 262,144 |
| Viewing Angle | 100° Vertical / 140° Horizontal |
| Luminance | 500 cd/m2 |
| LCD Misc. | Backlight Life: 50,000 hrs Contrast Ratio: 300 : 1 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) |
| Misc. | Certificate: CE / FCC / VCCI / Vibration / Shock |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.98" ×4.41" ×1.3" (151mm × 112mm × 33mm) |
| Weight | 500 g (1 lbs) |
| Power Requirements | |
|---|---|
| Power Misc. | Power Requirement:
Power Consumption: 20W (Max.)
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 50 C (122 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Operating Temperature: 0~+50° C (32~+122° F) / -20~+60° C (-4~+140° F) Optional (-I) Storage Temperature: -30~ +70° C (14 ~+158° F) Operating Humidity: 0% ~ 90% Relative Humidity, Non-Condensing -30~ +70° C (14 ~+158° F) Operating Humidity: 0% ~ 90% Relative Humidity, Non-Condensing |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PD3-057T-5A | PDX3-057T-5A, Vortex86DX3 1GHz, 1GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 5V | $484.00 |
| PD3-057T-5A-2G | PDX3-057T-5A-2G, Vortex86DX3 1GHz, 2GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 5V | $498.00 |
| PD3-057T-8A | PDX3-057T-8A, Vortex86DX3 1GHz, 1GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 8~35V | $484.00 |
| PD3-057T-8A-2G | PDX3-057T-8A-2G, Vortex86DX3 1GHz, 2GB RAM, Compact flash socket, 1x COM, 2x USB2, 1x LAN, 1x Audio, 8~35V | $498.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the PDX3-057T with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FLS-00053-R | 8GB CompactFlash Card Standard (-25°C to 85°C) | Call |
| PER-USB-00006-R | USB WLAN WiFi Module Internal | $31.00 |
| Operating Systems | ||
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SL050-XON-x | EMAC OE Linux 5.0 for x86 (Free installation at time of purchase of SBC & media) | Free |
