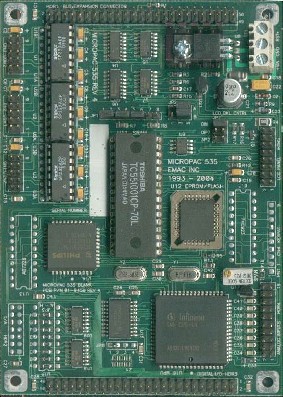

µPac-535

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The MICROPAC series of Single Board Computers feature micro size with micro power consumption at a micro price. The MICROPAC 535 has dimensions of 5.375" by 3.675" with a power requirement of 45 ma. typical and 80 ma. with the upgrade option installed. The MICROPAC 535 is ideally suited for controller applications requiring an on board Liquid Crystal Display (LCD) and/or keypad interface circuitry.

Features

  • CPU: Infineon CMOS 80C535 with 11.0592 MHz. crystal speed.
  • DIGITAL I/O: 18 TTL level, bit programmable I/O lines, with an additional 3 input and 3 output lines available with the purchase of the upgrade option. The 24 I/O lines, 8 of which can be optionally configured as high drive outputs, terminate to a standard 50 pin I/O rack header connector.
  • ANALOG INPUTS: Fast 8 channel, 8 bit analog to digital converter with an 18 microsecond conversion rate. The A/D has user programmable references allowing 10 bit resolution through software.
  • ANALOG OUTPUTS: The optional D/A has 4 channels with 8 bit resolution.
  • COUNTER/TIMERS/PWM: Three, 16 bit counter/timers are included standard. One of these has four I/O lines which can be used as compare outputs, or capture inputs (for Pulse Width Modulation/Demodulation). A watchdog timer is also provided. An additional 16 bit counter/timer is included with purchase of the upgrade option.
  • COMMUNICATION: A total of 3 RS232 serial ports, 1 of which is standard and 2 of which are provided with purchase of the upgrade option. Conversion of any port from RS232 to RS422/485 is available optionally.
  • INTERFACES: A Backlit LCD interface is provided, standard, with an optional 20 key, keypad interface available. Also included is a 50 pin bus expansion header.
  • PERIPHERAL EXPANSION: The address bus, data bus, reset and interrupt lines are available on a 50 pin bus expansion header for connecting to external peripherals from EMAC, or to peripherals of your own design.
  • MEMORY: Memory space for up to 128K of EPROM/FLASH and up to 128K of RAM. Total memory capacity is 256K bytes.
  • DISTRIBUTION CD: A CD is included with a demo program in assembly language and both assembly and C drivers for the on-board peripherals.
  • THIRD PARTY SOFTWARE: The 80C535 is supported by Keil Software's C-compiler and their RTOS. A more economical DDS ANSI C subset compiler is also available as an alternative. There are C drivers for the on-board peripherals.

Overview

The MICROPAC series of Single Board Computers feature micro size with micro power consumption at a micro price. The MICROPAC 535 has dimensions of 5.375" by 3.675" with a power requirement of 45 ma. typical and 80 ma. with the upgrade option installed. The MICROPAC 535 is ideally suited for controller applications requiring an on board Liquid Crystal Display (LCD) and/or keypad interface circuitry.

The MICROPAC 535 Single Board Computer utilizes the Infineon 80C535 microprocessor. This high integration processor features an enhanced 8051 instruction set, programmable I/O ports, Boolean processor, interrupt controller, watchdog timer, A/D converter, Pulse Width Modulation, and timer/counters. You can think of this processor as being a next generation 8051.

EMAC integrated this powerful processor onto a board that contains up to 24 digital I/O lines, 3 serial RS-232/485 ports, EEPROM, LCD interface, keypad interface, 8 channels of A/D, and 4 channels of D/A.

The MICROPAC 535 comes complete with an 8051 assembler and complete driver source code written in assembly language on a PC compatible CD. A Monitor/Debugger EPROM that allows you to upload HEX files into RAM as well as a Flash Bootloader are optionally available. If you do not desire to program it in assembler, an optional EPROM containing BASIC 52 with high level drivers can be purchased as well as third party C compilers.

The MICROPAC 535 is ideal for low cost data acquisition and control applications that require a display and keypad entry. The 8 channels of A/D allow the board to be connected to temperature sensors, pressure sensors, strain gauges, and LVDTs. Conditioned signals from these sensors can be used to make decisions in controlling motors, lights, heaters, etc. Try this board in your application for 30 days risk free.

Manuals
Data Sheets

Specifications

Processor
CPU
Infineon 80C535 (8051) 8-Bit
Clock Speed
11.0592 MHz
Processor Misc.

CPU: Infineon CMOS 80C535 with 11.0592 MHz. crystal speed.


Memory
RAM
Up to 128K ROM 128K RAM 256 EEPROM 256 Internal RAM
BIOS/ Bootloader
OPTION AVAILABLE
Memory Misc.

MEMORY: Memory space for up to 128 K of EPROM/FLASH and up to 128 K of RAM. Total memory capacity is 256K bytes. The 535 directly accesses 128 K of memory (64 K EPROM and 64 K RAM) with the 64 K balance being Banked Selected memory. A 32 K ROM Monitor and a 32 K RAM is included. In addition to the EPROM/RAM memory is a 1K bit serial EEPROM. The EEPROM is a nonvolatile memory organized into 64, 16 bit words with over 10,000 write cycles guaranteed and unlimited read cycles.
Primary IO
GPIO
4x 16 bit with PWM, Watchdog
SDIO
24x digital I/O lines
Video Out
LCD interface
Serial Ports
3x RS232
Primary I/O Misc.

SERIAL PORTS: A total of 3 RS232 serial ports, 1 of which is standard and 2 of which are provided with purchase of the upgrade option. Conversion of any port from RS232 to RS422/485 is available optionally.

DIGITAL I/O: 18 TTL level, bit programmable I/O lines, with an additional 3 input and 3 output lines available with the purchase of the upgrade option. The 24 I/O lines, 8 of which can be optionally configured as high drive outputs, terminate to a standard 50 pin I/O rack header connector.
Secondary IO
Timers/ Counters/ PWM
3x 16 bit counter/timers
Keypad
Yes
Secondary I/O Misc.

COUNTER/TIMERS/PWM: Three, 16 bit counter/timers are included standard. One of these has four I/O lines which can be used as compare outputs, or capture inputs (for Pulse Width Modulation/Demodulation). A watchdog timer is also provided. An additional 16 bit counter/timer is included with purchase of the upgrade option.

INTERFACES: A Backlit LCD interface is provided, standard, with an optional 20 key, keypad interface available. Also included is a 50 pin bus expansion header.
Expansion
Bus Expansion
1x 50 pin
Bus Misc.

PERIPHERAL EXPANSION: The address bus, data bus, reset and interrupt lines are available on a 50 pin bus expansion header for connecting to external peripherals from EMAC, or to peripherals of your own design.
Analog
A/D Channels
8x 8/10 bit
A/D Channels
8
D/A Channels
4x 8 bit
D/A Channels
4
A/D Resolution
8/10 bit
D/A Resolution
8 bit
Analog Misc.
  • ANALOG INPUTS: Fast 8 channel, 8 bit analog to digital converter with an 18 microsecond conversion rate. The A/D has user programmable references allowing 10 bit resolution through software.
  • ANALOG OUTPUTS: The optional D/A has 4 channels with 8 bit resolution.
Misc
Misc.

ON BOARD OPTIONS

  • I/O: Upgrade Option provides 2 additional RS232 Serial Ports, a 16 bit timer/counter, and 6 additional I/O lines (3 in/ 3 out).
    • Conversion of 8 port lines to 8 high-drive (500 mA. Sink) outputs.
    • 4 Channel, 8 bit D/A Converter.
    • 20 Key, Keypad Interface.
  • MEMORY: 128 K RAM Upgrade.
    • 128 K FLASH Upgrade
    • 32 K or 128 K of Battery Backed RAM Memory.
  • REAL TIME CLOCK: Battery Backed Real Time Clock Calendar.
  • COMMUNICATION: RS-422/485 replacement of RS232 Ports.
  • CPU: High Speed CPU with True 10 bit A/D and additional RAM.
  • SOFTWARE: Monitor/Debugger ROM, BASIC 52 ROM, C Compilers.

OTHER OPTIONS

  • 12 or 16 key tactile membrane keypad.
  • 2 line by 20 char LCD module and backlighting.
  • Programmable 32 line Digital I/O Board.
  • Signal Conditioning boards.
  • EPROM Programmer.

Mechanical and Environmental

Dimensions
Size
5.375" ×3.675" (136mm × 93mm)
Power Requirements
Voltage
7 V
Typical Current
45 mA
Power Misc.

POWER REQUIREMENTS: Single Voltage supply operation from +7 Vdc to +15 Vdc with on board regulation. Typical current draw is 45 ma standard, or 85 ma with upgrade.
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
90%
Environmental Misc.

OPERATING TEMPERATURE: 0 to 70 degrees Centigrade. Humidity range, without condensation, 0% to 90% RH.
Related Products
uPAC-515

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
E331-01-10000 535 SBC, 1x RS232 $120.00
E331-01-10020 535 SBC, 3x RS232 $169.00
E331-01-10133 535 SBC, Keypad, D/A, HIDrive, 1x RS422/485, 3x RS232 $262.00
Non-Stock
E331-01-10010 535 SBC, 1x RS422/485 $139.00
E331-01-10021 535 SBC, 4 RS232, Keypad $179.00
E331-01-10030 535 SBC, 1x RS422/485, 2x RS232 $183.00
E331-01-10040 535 SBC, 1x RS232, 2x RS422/485 $202.00
Build-to-order

EMAC can build the µPac-535 with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.

Call for pricing

Peripheral Options

Product # Description Price
Keypads
E020-25 12 KEY MEM TELEPHONE STYLE KEYPAD $25.00
E020-21 16 KEY MEMBRANE HEX STYLE KEYPAD $30.00
Displays
E020-30 20 CHAR. X 2 Line LCD Display $49.00
E020-31 20 CHAR. X 2 Line LCD backlit display $65.00
E020-32 20 char. X 4 line LCD $74.00
E020-33 20 Char. X 4 line backlit LCD (EOL, LIMITED AVAILABILITY) Call
Power Supplies
E010-11 WALL TRANSFORMER 110V - 9 V 500 MA $10.00
E010-15 WALL TRANSFORMER 110V - 9 V 1 A $18.00
E010-10 WALL TRANSFORMER 110V - 12 V 800 MA $10.00
Cables & Adapters
CAB-35-004-1 6" 10 PIN HEADER TO DB9 SERIAL ADAPTER CABLE $5.00
CAB-35-002-1 6" DB9 TO DB9 EXTENSION CABLE $10.00
Date/Time Clocks
E010-03 REAL TIME CLOCK/CALENDAR 32K BATTERY BACKED PROVISION (REQUIRES 32K RAM, 06-0723 OPTION) $39.00
E010-04 REAL TIME CLOCK/CALENDAR 128K BATTERY BACKED PROVISION (REQUIRES 128K RAM, 06-0724 OPTION) $50.00
Memory
06-0723 32K BY 8 STATIC RAM $10.00
06-0724 128K BY 8 STATIC RAM $15.00
06-90072 128K BY 8 BLANK PLCC FLASH $15.00
E010-05 32K BY 8 BATTERY BACKED SOCKET (REQUIRES 32K RAM, 06-0723 OPTION) $24.00
E010-07 128K BY 8 BATTERY BACKED SOCKET (REQUIRES 128K RAM, 06-0724 OPTION) $29.00
