SoM-100ES


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Receive consultation or quotes about this product from our sales staff.

Request a quote

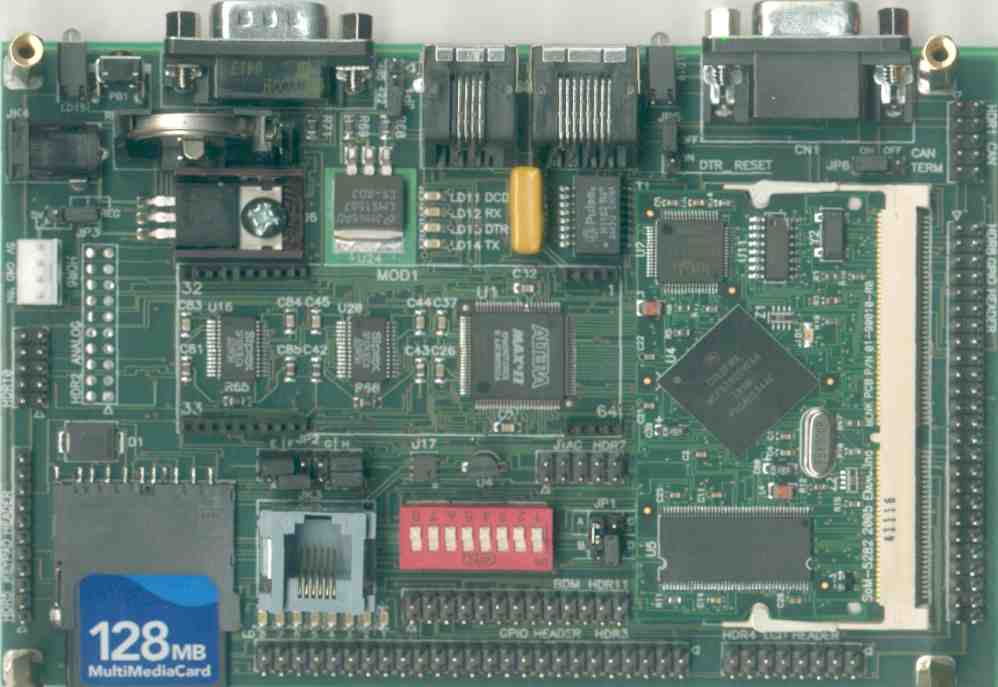

The SoM-100ES is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 144-pin SODIMM type SoMs. Note: While this Carrier will work with the SoM-9260, it is recommended to use the SoM-150 in order to get full utilization of the SoM-9260 module.

Features


  • Small, Half-EBX form factor (4.0" x 5.75")
  • 10/100 BaseT Ethernet with onboard Magnetics and RJ45
  • 2 serial RS232 ports and 1 RS232/485 port
  • 32, General Purpose digital (PLD) I/O lines in addition to SoMs I/O lines
    • 8 digital input lines with dipswitch provision
    • 8 digital output lines with status LEDs (20 ma. drive)
    • 8 High Drive digital output lines (500 ma. sink)
    • 8 digital general purpose inputs lines
  • 25 SoM Specific lines
  • 24 key, keypad interface
  • Character LCD interface
  • Battery for nonvolatile RAM and Real Time Clock
  • MMC/SD Flash Card Socket
  • CAN port (module must support CAN)
  • 1-Wire® RJ11 Jack with onboard Temperature Sensor (module must support 1-Wire)
  • V90 Modem or Wireless Modem Socket
  • System Reset button
  • Power and Flash Drive Status LEDs

 ON-BOARD OPTIONS FOR STANDARD CARRIER

  • 8 channel 12-bit A/D single ended / 4 channel differential
  • 4 channel 12-bit D/A
  • V90 Socket Modem or Wireless Socket Modem


BARE-BONES FEATURES

  • Small, Half-EBX form factor (4.0" x 5.75")
  • 10/100 BaseT Ethernet with onboard Magnetics and RJ45
  • Battery for nonvolatile RAM and Real Time Clock
  • MMC/SD Flash Card Socket
  • 3 serial RS232 ports
  • System Reset button

Overview


The SoM-100ES is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 144-pin SODIMM type SoMs. Note: While this Carrier will work with the SoM-9260, it is recommended to use the SoM-150 in order to get full utilization of the SoM-9260 module.

The SoM-100ES provides access to all the SoM's I/O through on-board connectors as well as a number of additional I/O expansion blocks such as A/D, D/A, Digital I/O, Modem, and MMC/SD flash disk. Full schematics of the SoM-100ES are provided giving the user a solid base with which to design their own SoM Carrier. Schematics of the SoM-100ES are included on the CD provided with the Carrier board.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-100ES when coupled with a SODIMM SoM makes for a powerful Remote Data Acquisition and Control system with Modem and Ethernet capabilities. This allows the user to gather data and respond with Control commands via the Internet. An Enclosure and Power Supply are available options for the SoM-100ES.

When a unique custom board is required for an application, the amount of design work required is greatly minimized by the SoM approach. The custom carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O, connectors and dimensional aspects required for the application.
custom carrier

In situations where a custom carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized (see custom carrier example on right). Using COS the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

Manuals
Data Sheets

Specifications


Memory
Primary Flash
MMC/SD Flash Slot
Primary IO
GPIO
32x Digital I/O Lines
Video Out
Character LCD interface
Ethernet
10/100 BaseT Ethernet with onboard Magnetics and RJ45
Serial Ports
2x Serial Ports (RS232 ports, 1x RS232/485 port)
Secondary IO
Keypad
Yes
Expansion
Bus Expansion
144-pin SODIMM
Analog
Analog Misc.
  • A/D: 8 channel 12-bit A/D single ended / 4 channel differential
  • D/A: 4 channel 12-bit D/A
Misc
SOM Type
SODIMM Carrier Boards

Mechanical and Environmental


Dimensions
Size
4" ×5.75" (101mm × 146mm)
Power Requirements
Typical Current
300 mA
Power Misc.

Power Requirements: Typical 5 - 15 Volts @ 300 ma. including SoM

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
90%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price

Peripheral Options


Product # Description Price
Peripherals
PER-PWR-00035 12 v @ 2.1A Wall PS (110 V @ 60 HZ US) $25.00
PER-COM-00005 56K dial-up socket modem module $75.00
PER-FLS-00061 SD flash card 128MB $20.00
MBPC-200-0 Half-EBX MicroBox Chassis Call
Keypads
E020-21 16 KEY MEMBRANE HEX STYLE KEYPAD $30.00
E020-25 12 KEY MEM TELEPHONE STYLE KEYPAD $25.00
Displays
E020-30 20 CHAR. X 2 Line LCD Display $49.00
E020-31 20 CHAR. X 2 Line LCD backlit display $65.00
E020-32 20 char. X 4 line LCD $74.00
E020-33 20 Char. X 4 line backlit LCD (EOL, LIMITED AVAILABILITY) Call
E020-34 20 CHAR. X 2 line VF display $125.00
