COM-51004 SMARC-sXBTi
- Intel ATOM 3800 Series SOC
- up to 8GB DDR3L onboard
- 1x USB 3.0 & 3x USB 2.0
- eMMC Flash, SDIO, 2x SATA
- Industrial temperature Operations

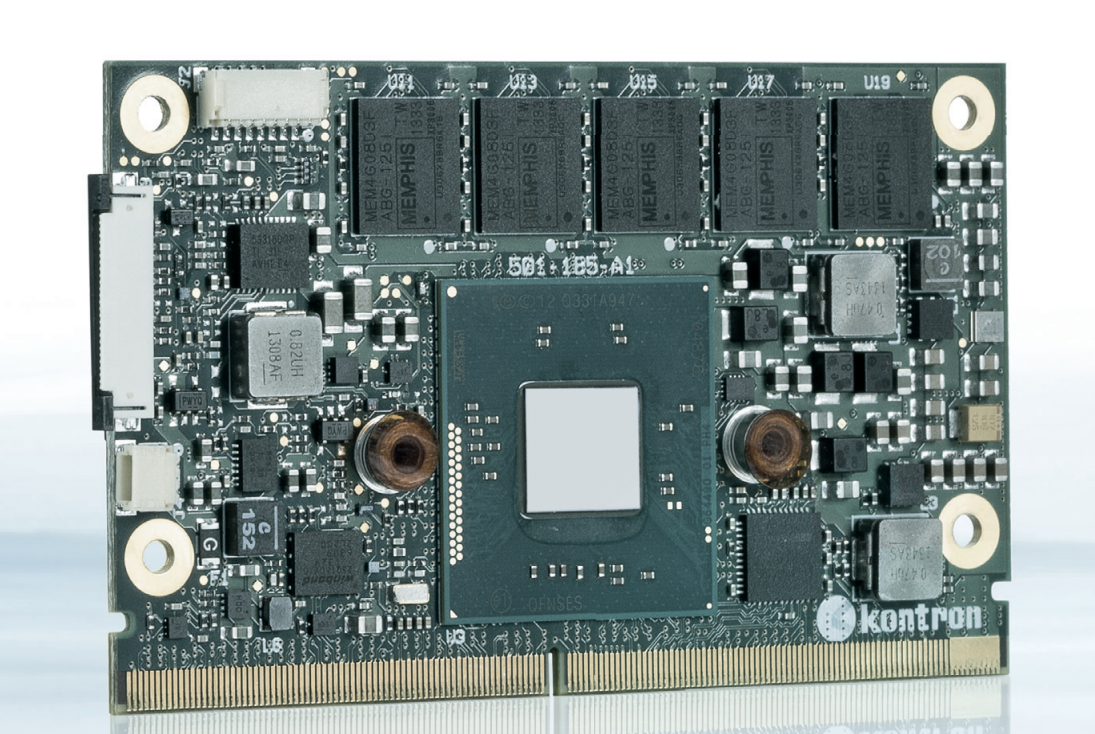

22Spi11117 The SMARC-sXBTi Computer-on-Modules has been developed to comply with the SGET specification and is equipped with Intel® Atom™ processor E3800 series and up to 8 GB RAM, optional with ECC. They support the extended temperature range of -40°C to +85°C, measure only 82mm x 50mm and have an especially low-profile design thanks to the use of edge card connectors. Nevertheless, there is still enough space for up a 64GB on-board SSD to store OS and application data.
Features
- Intel ATOM 3800 Series SOC
- up to 8GB DDR3L memory down (ECC optional)
- 1x USB 3.0, 3x USB 2.0 (optional 1 OTG)
- eMMC Flash, SDIO, 2x SATA
- Industrial Temperature Operations
- SMARC - Smart Mobile Architecture by SGET - small size
- Intel® Atom™ E3845, E3827, E3826, E3825 or E3815
- Intel® HD Graphics (Gen7)
- HD Audio and I2S
- 5x I2C
- 2x SPI
- Camera Interface (2x MIPI CSI)
- 3x COM port (2x serial, 1x 2-wire)
- 1x USB 3.0
- 2x USB 2.0
- LVDS Single Channel 18/24 bit or eDP
- HDMI or DP
- 3x PCIe x1
- 1x SATA 3Gb/s
- Intel i210IT Gigabit LAN, 10/100/1000 MBit Ethernet
Overview
The SMARC-sXBTi Computer-on-Modules has been developed to comply with the SGET specification and is equipped with Intel® Atom™ processor E3800 series and up to 8 GB RAM, optional with ECC. They support the extended temperature range of -40°C to +85°C, measure only 82mm x 50mm and have an especially low-profile design thanks to the use of edge card connectors. Nevertheless, there is still enough space for up a 64GB on-board SSD to store OS and application data. A highlight of the pin-out is MIPI-compliant serial camera interface (MIPI CSI = Mobile Industry Processor Interface Camera Serial Interface). The powerful Intel® Gen 7 Graphics are carried out via HDMI 1.4 with up to 2560x1600 and 60 Hz and LVDS (optional eDP) to the display. Further interfaces include 1x GbE LAN via Intel® Ethernet Controller I210, 1x USB 3.0 and 2x USB 2.0, amongst others. Customer-specific extensions can be implemented via 2 SDIO and 3 PCIe x1 lanes with 5GT/s.
The SMARC™ standard was developed especially for new modules with ARM- and SOC-processors and is characterized by the extremely flat build of its form factor. It is based on the MXM 3.0 connector with 314 pins and a construction height of just 4.3 millimeters and it thus allows robust and flatly constructed designs with a cost-effective card edge connector. The connector is also available in a shock- and vibration-resistant version for rough environmental conditions. Furthermore, the standard integrates dedicated interfaces for the latest ARM and SOC processors which not only means LVDS, 24-bit RGB and HDMI support but also support of embedded DisplayPort for future designs. In addition, and for the first time, dedicated camera interfaces are being incorporated into a COM standard. OEMs profit from minimized design effort and bill of material costs. SMARC™ defines two different module sizes in order to offer a high level of flexibility regarding different mechanical requirements: a short modules measuring 82 mm x 50 mm and a full-size module measuring 82 mm x 80 mm.
| Manuals | |
|---|---|
| COM-51004-SMARC-SXBTi-sxvvm110.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| COM-51004-datasheet_smarc-sxbti.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ E3800 Series SOC |
| Clock Speed | 1.91 GHz |
| Processor Misc. | Intel® Atom™ E3800 Series
|
| Memory | |
|---|---|
| RAM | up to 8GB DDR3L Memory Onboard |
| Primary Flash | Onboard eMMC (Optional) |
| BIOS/ Bootloader | Phoenix UEFI |
| Memory Misc. | Up to 8GB DDR3L memory onboard |
| Primary IO | |
|---|---|
| GPIO | 12x GPIO |
| Disk Interface | SATA II |
| Audio | HD Audio |
| Video Out | LVDS, eDP, HDMI or DP |
| Ethernet | Intel i210IT Gigabit Ethernet |
| USB | 1x USB 3.0 & 3x USB 2.0 |
| Serial Ports | 3x COM |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| SPI | 2x SPI |
| I2C | 5x I2C |
| Secondary I/O Misc. |
|
| Expansion | |
|---|---|
| Bus Expansion | SMARC Buss Specification |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 |
| SOM Type | Microcontroller SODIMM Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.23" ×1.96" (82mm × 49mm) |
| Dimensions Misc. | Dimensions 50mm x 82mm |
| Power Requirements | |
|---|---|
| Power Misc. | Supply Voltage 3.0V - 5.25V ACPI 5.0 |
| Environmental | |
|---|---|
| Low Operating Temperature | -40 C (-40 F) |
| High Operating Temperature | 85 C (185 F) |
| Upper Operating Humidity | 93% |
| Environmental Misc. | Heat-spreader and heat-sink are required for proper heat dissipation. The heat-spreader was developed as a thermal interface, so that users can easily develop a proper cooling solution to fit their specific application needs.
The heat-spreader and commonly available adhesive heat-sinks should work as an interim bench-top development solution. As the COM-51004 CPUs only have a 5-10W TPD (based on cpu used) adequate cooling solutions can easily be found off the shelf.
|
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| COM-51004-132-R | 51004-2000-13-2, SMARC-sXBTi, E3825 2x1.33GHz, 2GB DDR3, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DP (-40~85C) | Call |
| COM-51004-151-R | 51004-1000-15-1, SMARC-sXBTi, E3815 2x1.45Ghz, 1GB DDR3, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DP (-40~85C) | Call |
| COM-51004-152-R | 51004-2000-15-2, SMARC-sXBTi, E3826 2x1.46GHz, 2GB DDR3, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DP (-40~85C) | Call |
| COM-51004-172-R | 51004-1040-17-2, SMARC-sXBTi 1M/4S, E3827 2x1.75GHz, 1GB DDR3, 4GB eMMC, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DP (-40~85C) | Call |
| COM-51004-1722R | 51004-2000-17-2, SMARC-sXBTi, E3827 2x1.75GHz, 2GB DDR3, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DP (-40~85C) | Call |
| COM-51004-194-R | 51004-2000-19-4, SMARC-sXBTi, E3845 4x1.91GHz, 2GB DDR3, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DP (-40~85C) | Call |
| COM-51004-1944R | 51004-4016-19-4, SMARC-sXBTi 4M/16S, E3845 4x1.91GHz, 4GB DDR3, 16GB MLC eMMC, 1xSATA, 3xCOM, 1xUSB3, 3xUSB2, 1xGbE, HDMI or DPv (-40~85C) | Call |
Carrier Board Options
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FAN-00100-R | Heat spreader for SMARC-sXBT | $13.00 |
| PER-HDW-00001-R | Mounting Kit for SMARC Module (screws) | $5.00 |
| COM-51100-DEV-R | 51100-0000-00-0, SMARC (ULP-COM) Evaluation Carrier | Call |
| COM-S1100-SSK-R | 51100-0000-00-S, SMARC StarterKit Includes-Evalutation carrier, 10" display with touch, 12V power supply, cables, accessories. (Less SMARC Module and cooling solution) | $1869.00 |
