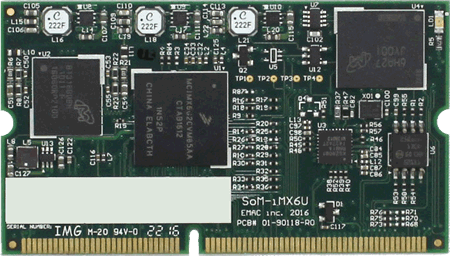

The SoM-iMX6 is an ARM System on Module (SoM) based on the NXP (Freescale) i.MX 6 ARM Cortex A9 Solo, Dual or Quad Core processor.
SOM-5991 Intel Xeon Processor COM Express
22Spi11143

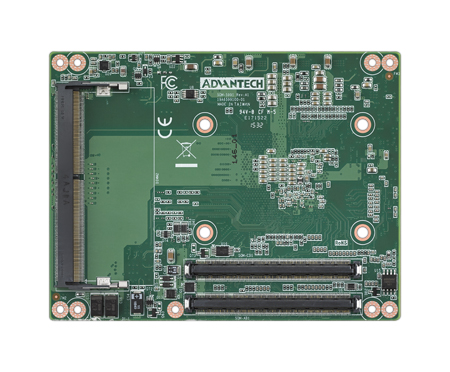

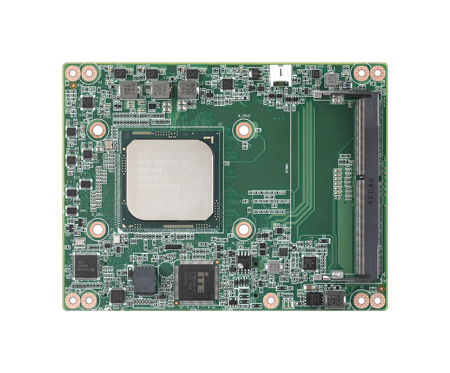

22Spi11143 SOM-5991 is based on Intel Broadwell-DE with two 10GbE support on COM Express Basic module.
Features
- Intel® Xeon® Processor D-1500 Product Family
- COM Express R2.1 Basic Module, Type 6 pin out compatible
- Up to 16 core with TDP 45W
- Dual DDR4 2400, 1.2V Low Power Memory, up to 32GB
- Integrated high speed 10GbE interface
- PCIe x16, 8 PCIe x1, 2 x 10GBASE-KR interface
Overview
SOM-5991 is based on Intel Broadwell-DE with two 10GbE support on COM Express Basic module.
| Manuals | |
|---|---|
| SOM-5991_USER_MANUAL_ED.1-FINAL.PDF | Download (PDF) |
| Data Sheets | |
|---|---|
| SOM-5991_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Xeon® Processor D-1500 |
| Clock Speed | 2.6 GHz |
| Processor Misc. | Xeon D-1548 8xCore 2GHz (2.6GHz Turbo) 45W |
| Memory | |
|---|---|
| RAM | Up to 32 GB DDR4 SODIMM |
| BIOS/ Bootloader | EFI Bios |
| Memory Misc. | No Memory included, up to 32GB of DDR4 Memory supported, Dual channel memory requires 2 Matched DDR4 Modules. |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | 4x SATA III |
| Audio | none |
| Video Out | none on-board. |
| Ethernet | 2 x 10GBASE-KR & 1x Intel® i210AT 10/100/1000 Mbps |
| USB | 4x USB 3.0 & 4x USB 2.0 |
| Serial Ports | 2x COM (2-Wire) |
| Primary I/O Misc. | TPM (option) TPM2.0 |
| Secondary IO | |
|---|---|
| SPI | Yes (BIOS only) |
| I2C | Support 100Kb/s & 400Kb/s devices. Default master mode |
| Expansion | |
|---|---|
| Bus Expansion | COM Express R2.1 Type 6 compatible |
| Bus Misc. | PCI Express x16: 1 port support up to Gen3 8.0 GT/s Bifurcatable to 2 x8, 1 x8 & 2 x4, or 4 x4 PCI Express x1: 8 ports support up to Gen2 5.0 GT/s |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 |
| SOM Type | COM Express Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.92" ×3.74" (124mm × 94mm) |
| Power Requirements | |
|---|---|
| Power Misc. | Type ATX: Vin, VSB, AT: Vin Supply Voltage Vin: 8.5(9-5%)~20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V Power Consumption (Max.) TBD Power Consumption (Idle) TBD |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | Wide temperature operation optional |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SOM-5991P2-S1A1E | SOM-5991P2-S1A1E, Pentium D1508 2xcore 2.2 GHz, 4xSATAIII, 4x USB3, 4x USB2, 1xGbE, 2x10GbE-KR | Call |
| SOM-5991X8-U0A1E | SOM-5991X8-U0A1E, Xeon D-1548 8xcore 2.0 GHz, 4xSATAIII, 4x USB3, 4x USB2, 1xGbE, 2x10GbE-KR | $1270.00 |
