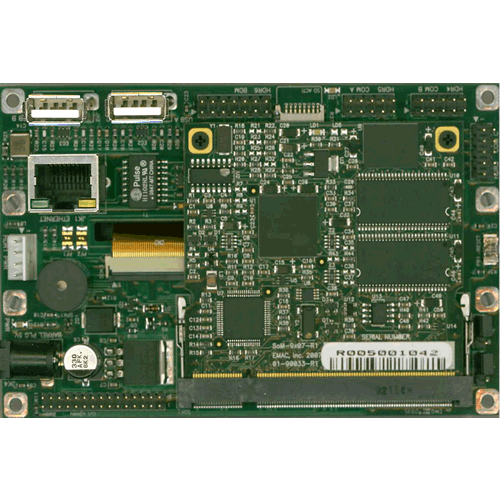

SoM-210ES


  • 2x serial RS232 ports and 1x RS232/485 port
  • 32x SoM Specific lines with JTAG
  • 10/100 BaseT Ethernet with onboard Magnetics and RJ45
  • Up to 3 USB 2.0 Hosts

Receive consultation or quotes about this product from our sales staff.

Request a quote

The SoM-210ES is an ultra compact SoM Carrier/Socket board with an optional 4.3 inch WQVGA (480 x 272) TFT color LCD and a resistive touch screen. The dimensions of the SoM-210 are 4.8” by 3.0”, about the same dimensions as that of popular touch cell phones. The SoM-210 is small enough to fit in a 2U rack enclosure. This versatile SoM Carrier/Socket board is ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 200-pin SODIMM type SoMs. Note: The SoM-210 is specifically designed for SoMs with Video & USB capability.

Features


  • Ultra Small form factor (4.8" x 3.0")
  • 10/100 BaseT Ethernet with onboard Magnetics and RJ45
  • 2x RS232 serial ports and 1 RS232/485 serial port
  • 32 SoM Specific lines with JTAG
  • Resistive Touchscreen interface
  • Graphic LCD interface with WQVGA TFT LCD with Touch
  • Battery for nonvolatile RAM and Real Time Clock
  • Micro SD Flash Card Socket
  • 2x USB 2.0 Host Jacks & 2x USB Hosts on Header (1x USB Host port wired to Jack and Header)
  • Audio Beeper
  • System Reset button
  • Power and Flash Status LEDs

BARE-BONE FEATURES

  • Ultra Small form factor (4.8" x 3.0")
  • 10/100 BaseT Ethernet with onboard Magnetics and RJ45 Jack
  • Battery for nonvolatile RAM and Real Time Clock
  • Dual USB Host Jack
  • SD Flash Card Socket
  • 2 serial RS232 ports and 1 RS232/485 port
  • Audio Beeper
  • System Reset button



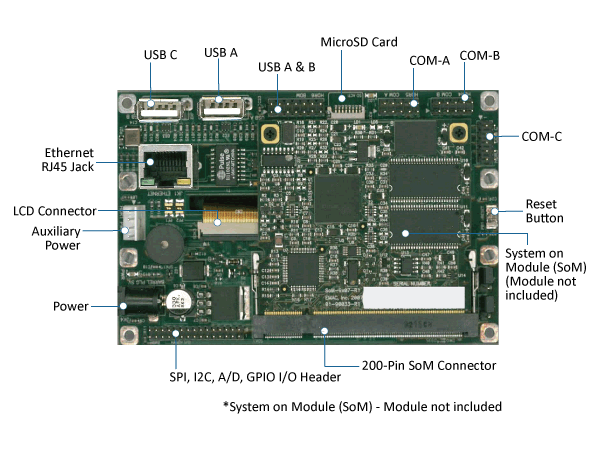

Overview


The SoM-210ES is an ultra compact SoM Carrier/Socket board with an optional 4.3 inch WQVGA (480 x 272) TFT color LCD and a resistive touch screen. The dimensions of the SoM-210 are 4.8” by 3.0”, about the same dimensions as that of popular touch cell phones. The SoM-210 is small enough to fit in a 2U rack enclosure. This versatile SoM Carrier/Socket board is ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 200-pin SODIMM type SoMs. Note: The SoM-210 is specifically designed for SoMs with Video & USB capability.

The SoM-210ES provides access to much of the SoM's I/O through on-board connectors as well as a number of additional I/O expansion blocks such as Video, Touchscreen, Ethernet and micro SD flash disk. Full schematics of the SoM-210ES are provided giving the user a solid base with which to design their own SoM Carrier. Schematics of the SoM-210ES are included on the CD provided with the Carrier board.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-210ES when coupled with a SoM-9307 SODIMM SoM makes for a powerful User Interface Contol System with USB and Ethernet capabilities. This allows the user to gather data and respond with Control commands via the Internet.

When a unique custom board is required, the amount of design work required is greatly minimized by the SoM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O, connectors and dimensional aspects required for the application.

In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized. Using COS the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

Manuals
SoM-210ES_User_Manual.pdf
Data Sheets
SoM-210_Datasheet.pdf

Specifications


Primary IO
GPIO
24x Digital I/O Lines (5x dedicated GPIO, 19x Configurable I/O)
Audio
Audio Beeper
Video Out
Graphic LCD interface with WQVGA TFT LCD with Touch
Ethernet
10/100 BaseT Ethernet with onboard Magnetics and RJ45
USB
Dual USB Host Jack
Serial Ports
2x RS232, 1x RS232/485
Secondary IO
CAN
1x CAN 2.0B Port
Touch
Resistive Touchscreen interface
Expansion
Bus Expansion
200-pin SODIMM
Misc
SOM Type
SODIMM Carrier Boards

Mechanical and Environmental


Dimensions
Size
4.8" ×3" (121mm × 76mm)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1 A
Power Misc.

Power Requirements: Typical <~1.0A. @ 5 Vdc. including SoM, USB & LCD
(Note: up to 1.0A additional is required if USB Host is providing power to USB devices)

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
Non-Stock
SoM-210ES-000 Standard Carrier Board with LCD $175.00
SoM-210ES-007 Bare Bones Carrier Board without LCD $95.00

Non-stock Minimum Order: 25, NCNR

Build-to-order

EMAC can build the SoM-210ES with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.

Call for pricing

Carrier Board Options


Product #VariationPrice
SoM-9G45M-110 w/ AT91SAM9G45 CPU, 512 MB FLASH 128 MB RAM $190.00
SoM-9M10M-130 w/ AT91SAM9M10 CPU, 1 GB FLASH 256 MB RAM $250.00
SoM-3517M-130 TI ARM Cortex-A8 CPU, 2GB eMMC FLASH, 256MB RAM (0 ~ +70C) $198.00
SoM-3517M-141 TI ARM Cortex-A8 CPU, 4GB eMMC FLASH, 512MB RAM Call
SoM-3517M-339 TI ARM A8 CPU, 512MB NAND FLASH, 256MB RAM, INDUSTRIAL TEMP (-40C ~ +85C) Call
SoM-3354M-140 SOM-3354, TI AM3354 ARM-A8, 512MB RAM, 4GB eMMC Flash, 16MB Serial Data flash, 4x COM, 3x USB2, 10/100 ETH, Video (-40 to +85) $160.00
SoM-212ES-007 Bare Bones Carrier Board $110.00

Peripheral Options


Product # Description Price
Peripherals
PER-PWR-00041 Brick 30W PS w/ HDD & FDD connector +5/+12 VDC $50.00
PER-PWR-00032 5V @ 2.5A PS (110V @ 60 Hz US) $20.00
PER-PWR-00033 5V @ 3.2A PS (100-220V @ 47-63 Hz Intl.) $28.00
