PFM-CVS


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

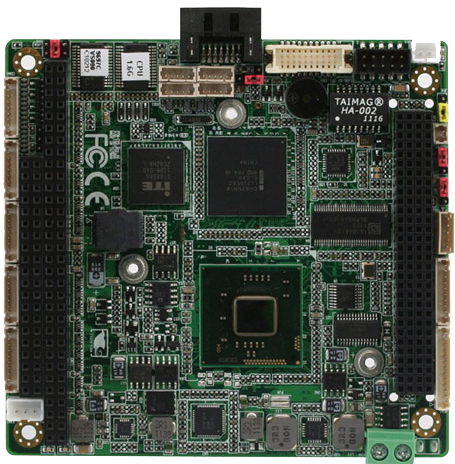

The PFM-CVS is a fanless Single Board Computer based on the Intel Atom N2600 Dual Core 1.6 GHz processor. This low power PC/104+ module features four USB 2.0 ports, four COM ports, Gigabit Ethernet, one SATA, and one mSATA / Mini Card (optional).The PFM-CVS supports Analog VGA, 18-bit Single Channel LVDS LCD, PC/104+ expansion, and up to 2GB of DDR3 1066MHz SODIMM RAM. Users can expand the functionality with add on modules or utilize the optional Mini PCIe (Half size) expansion in place of mSATA to easily achieve greater functionality from this small yet powerful board.

Features


  •  True PC/104 Dimensions & Interface, 3.55" x 3.77" (90mm x 96mm)
  •  Fanless 32°F ~ 140°F (0°C ~ 60°C) operation, Industrial Temperature Version (-20°C ~ 70°C)
  •  Supports CRT/LCD simultaneous/ dual view displays
  •  PC/104+ Expansion, mSATA / Mini Card (Half Size Support)
  •  +12V Only Operation

Overview


The PFM-CVS is a fanless Single Board Computer based on the Intel Atom N2600 Dual Core 1.6 GHz processor. This low power PC/104+ module features four USB 2.0 ports, four COM ports, Gigabit Ethernet, one SATA, and one mSATA / Mini Card (optional).The PFM-CVS supports Analog VGA, 18-bit Single Channel LVDS LCD, PC/104+ expansion, and up to 2GB of DDR3 1066MHz SODIMM RAM. Users can expand the functionality with add on modules or utilize the optional Mini PCIe (Half size) expansion in place of mSATA to easily achieve greater functionality from this small yet powerful board.

The PFM-CVS supports Linux, Real-Time Linux, WES 09, Windows 7, Windows XP Pro, Windows 7 Pro, and DOS 6.22. Unlike other PC/104 SBCs, the PFM-CVS maintains the true PC/104+ standard and does not require "wings". The PFM-CVS gives developers a low power high performance platform that can fit into tight spaces. PC/104+ expansion allows features to be quickly added using any of EMAC's many PC/104+ expansion modules. With industrial grade reliability, the PFM-CVS can operate continuously at temperatures from 32°F ~ 140°F (0°C ~60°C) without a fan. A wider temperature version -4°F ~ 158°F (-20°C ~ 70°C) is available. The features of the PFM-CVS provide an ideal price/performance solution for high-end, low cost commercial and industrial applications where stability and reliability (no moving parts) are essential.

Manuals
PFM-CVS_Rev.B_Manual.pdf
PFM-CVS_Rev.A.pdf
PFM-CVS_Manual.pdf
Data Sheets
PFM-CVS_ds_Rev.A.pdf
PFM-CVS_DS-Rev.B.pdf

Specifications


Processor
CPU
Intel Atom N2600
Clock Speed
1.6 GHz
Processor Misc.

Chipset: Intel® Atom™ N2600 + NM10

Memory
RAM
Up to 2GB DDR3 1066 MHz SODIMM
BIOS/ Bootloader
AMI BIOS – 32MB ROM
Primary IO
GPIO
8-bit digital I/O Programmable
Audio
Buzzer
Video Out
Intel® Atom™ N2600 Processor integrated graphic
Ethernet
Intel® WG82583 10/100/1000Base-TX 1x RJ-45
USB
4x 2.0
Serial Ports
3x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • SATA Interface: 1x SATA 3.0Gb/s, 1x mSATA
  • I/O Chipset: FinTech F81866D
Secondary IO
Expansion
Bus Expansion
1x PC/104+
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Misc.

Included cables:

PFM-CVS:  OEM board, no cables.

PFM-CVS-CA: Power Cable, CRT cable, Flat cable, Inverter cable, 4x USB cables, 4x Flat cable, D-Sub 9(M), SATA cable 7P, Power cable 15P SATA, Flat Cable 1x 10P, Flat cable Front Panel 10P, Buzzer Cable.

Mechanical and Environmental


Dimensions
Size
3.55" ×3.77" (90mm × 95mm)
Weight
0.35 lb
Power Requirements
Voltage
12 V
Typical Voltage
12 V
Typical Current
1.2 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PFM-CVS-AC PFM-CVS SBC with full cable kit $364.00
PFM-CVS ATOM™ N2600 1.6 GHZ PC/104+, 4 COM, 1 ETH, LVDS $288.00
PFM-CVS-WITS ATOM™ N2600 1.6 GHZ PC/104+, 4 COM, 1 ETH, LVDS, EXT. TEMP (NCNR) Call

Peripheral Options


Product # Description Price
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SL013-AMN-00060 Xenomai Real-Time Extensions (one-time charge) Call
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
