PCM-9578


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

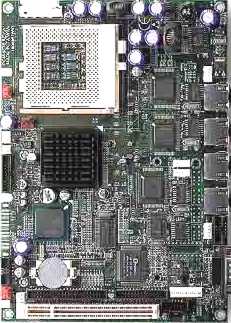

The PCM-9578 is a Socket 370 SBC designed with customer needs in mind. With the ability to accept Celeron or Pentium III processors up to 1.26GHz, supply 3 or 4, 10/ 100 Mbps Ethernet ports, the PCM-9578 is right at home in any network environment. The PCM-9578 can be used as a triple Ethernet firewall/DMZ device or a four Ethernet port device that allows centralized management of a Secure Virtual Network, including firewall security and VPNs or PCI add-on cards for encryption acceleration.

Features


  • Socket 370 supports up to Pentium® III/512K 1.26GHz
  • Supports 3 or 4 Ethernet Ports with on-board RJ-45 Jacks
  • Provision for 8 GPIO lines for general purpose use or LAN control LED indicators
  • 133MHz FSB and 4X AGP graphics for high performance applications

Overview


The PCM-9578 is a Socket 370 SBC designed with customer needs in mind. With the ability to accept Celeron or Pentium III processors up to 1.26GHz, supply 3 or 4, 10/ 100 Mbps Ethernet ports, the PCM-9578 is right at home in any network environment. The PCM-9578 can be used as a triple Ethernet firewall/DMZ device or a four Ethernet port device that allows centralized management of a Secure Virtual Network, including firewall security and VPNs or PCI add-on cards for encryption acceleration. Applied in any network environment or in a stand-alone chassis supplied by EMAC, the PCM-9578 has the processing power and reliability to handle your mission critical, high availability applications.

This product uses the Intel 815E 133 MHz Front-Side bus chipset with Northbridge and Integrated 2D/3D/Video Accelerator and supports 4x AGP VGA/LCD interface and up to 64 MB frame buffer using system memory. The board is effective for use as a mini-server or gateway device with the ability to add more ethernet ports through its fast PCI slot. The PCM-9578's powerful Pentium® III 1.26GHz, Multi-Port Ethernet, USB 1.1 and solid system chipset make it a perfect core technology for server equipment and other long life applications.

Specifications


Processor
CPU
Socket 370 for Intel Celeron/Pentium
Clock Speed
1.26 GHz
Processor Misc.

2nd cache memory: supports 128KB/256KB/512KB on the processor

Memory
RAM
1x SODIMM SDRAM up to 512MB
Primary Flash
1x 50-pin socket for CFC type I/II
BIOS/ Bootloader
Award 512 KB Flash memory
Primary IO
Disk Interface
2x FDD, 2x EIDE
Ethernet
IEEE 802.3u 100BASE-T Fast Ethernet compatible
USB
2x USB 1.1
Serial Ports
2x RS-232
Primary I/O Misc.
  • Parallel port: Parallel port supports SPP/EPP/ECP mode

VGA Video Interface

  • Chipset: Intel 815E chip with integrated 2D/3D/Video Accelerator
  • Frame buffer: Supports 8/32/64MB frame buffer with system memory
  • Interface: 4X AGP VGA interface
  • Display mode: CRT Modes: 1600 x 1200@8bpp (75Hz), 1280 x 1024@16bpp (85Hz), 1024 x 768@24bpp (85Hz)
Secondary IO
PS/2
Yes
Display
Chipset
Intel 815E chip with integrated 2D/3D/Video Accelerator
CRT-VGA Interface
4X AGP VGA interface
Expansion
Bus Expansion
1x PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Wind River VxWorks
  • QNX Neutrino RTOS

Mechanical and Environmental


Dimensions
Size
8" ×5.75" (203mm × 146mm)
Weight
0.85 kg
Power Requirements
Typical Voltage
5 V
Typical Current
5.6 A
Power Misc.
  • Power management: Supports power saving modes including Normal/Standby/Suspend modes. APM 1.2 compliant
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9578F-03 SBC W/ 3 LAN, USB 1.1, AND VGA Call
PCM-9578F-04 SBC W/ 4 LAN, USB 1.1, AND VGA Call

Peripheral Options


Product # Description Price
Wiring Kits
PCM-10586-5E00 Installation Wiring Kit (PCM-9578F) $39.00
Cables & Adapters
CAB-40-001-1 USB 2 port cable w/ mounting bracket $11.00
CAB-80-003-1 Power Cable ATX-EBX Adapter $8.00
