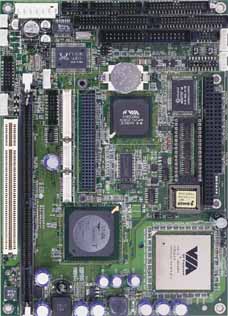

PCM-9575


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The new PCM-9575 is a new EBX form factor 5.25" single board computer (SBC) with an onboard new VIA Embedded low power Eden 667MHz, or Eden 400MHz processor. The VIA Eden processor uses advanced 0.13µ CMOS technology with 128KB L1 cache memory and 64KB L2 cache memory on-die. This board can operate without a fan at temperatures up to 60° C (140° F) and typically consumes under 14 Watts while supporting numerous peripherals. This SBC includes a 4X AGP controller, a PCI audio interface, a PCI Ethernet interface, and 2 channel LVDS interface.

Features


  • Embedded low power VIA 400 MHz to 1 GHz processor
  • Applied EBX form factor standard and supports PC/104+ bus
  • Fanless operation at 60º C (PCM-9575F-J & PCM-9575F-M only)
  • 133MHz FSB and 4X AGP graphics for high performance applications

Overview


The new PCM-9575 is a new EBX form factor 5.25" single board computer (SBC) with an onboard new VIA Embedded low power Eden 667MHz, or Eden 400MHz processor. The VIA Eden processor uses advanced 0.13µ CMOS technology with 128KB L1 cache memory and 64KB L2 cache memory on-die. This board can operate without a fan at temperatures up to 60° C (140° F) and typically consumes under 14 Watts while supporting numerous peripherals. This SBC includes a 4X AGP controller, a PCI audio interface, a PCI Ethernet interface, and 2 channel LVDS interface. Its design is based on the EBX form factor that supports the PC/104+ interface for ISA/PCI module upgrades. Other on-board features include a PCI slot, an LPT, 2 USBs, IrDA and 4 serial ports: three RS-232s, and one RS-232/422/485. The SSD solution supports both DiskOnChip® 2000 and CompactFlash™ cards.

This product uses a VIA Twister™ chip with Integrated Savage4™ 2D/ 3D/Video Accelerator and supports 4X AGP VGA/LCD interface and up to 32 MB frame buffer using system memory. The board is effective for use as a mini-server or gateway device, through its ability to add more ethernet ports through its fast PC/104+ socket. This board combines well with the dual-ethernet PCM-3663 PC/104+ module, giving integrators network flexibilty. The PCM-9575's powerful, fanless processor choices and solid system chipset make it a perfect core technology for medical equipment and other long life applications.

Specifications


Processor
CPU
Embedded VIA low power Ezra/Eden processor
Processor Misc.

2nd cache memory: 64KB on the Ezra/Eden processor

Memory
RAM
Up to 512MB 1x DIMM socket SDRAM
Primary Flash
one 1x 50-pin socket for CFC type I/II
BIOS/ Bootloader
Award 256 KB Flash memory
Primary IO
Disk Interface
2x FDD, 4x EIDE
Audio
VIA 82C686 AC97 2.0 (Line-in/Line-out/Mic-in)
Ethernet
IEEE 802.3u 100Base-T Fast Ethernet RTL8139
USB
option 4x USB
Serial Ports
4x RS-232
Primary I/O Misc.
  • Parallel port: Parallel port supports SPP/EPP/ECP mode
  • Infrared port: Shared with COM4. Transfer rates up to 115Kbps

VGA/Flat-Panel Interface

  • Chipset: VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
  • Frame buffer: Supports 8/16/32MB frame buffer with system memory
  • Interface: 4X AGP VGA/LCD interface, Support for 9, 12, 15, 18, 24, 36 bit TFT and optional 16- or 24-bit DSTN panel
  • Display mode:
    • CRT Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (85Hz)
    • LCD/Simultaneous Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (60Hz)
  • LVDS: Supports 2 Channel (2 x 18bit) LVDS interface
Secondary IO
PS/2
Yes
Display
Chipset
VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
LVDS Interface
Supports 2 Channel (2 x 18bit) LVDS interface
Expansion
Bus Expansion
1x PCI, 1x PC/104+
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTOS
  • RTAI Real-Time Linuxc

Mechanical and Environmental


Dimensions
Size
8" ×5.75" (203mm × 146mm)
Weight
0.85 kg
Power Requirements
Typical Voltage
5 V
Typical Current
3.1 A
Max Boot Current
4.5 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9575F-J Eden 400 MHz w/VGA, PC104+, SSD,& LAN Call
PCM-9575F-M Eden 667 MHz w/VGA, PC104+, SSD,& LAN Call
PCM-9575F-S C3 1 GHz w/VGA, PC104+, SSD,& LAN Call

Peripheral Options


Product # Description Price
Wiring Kits
PCM-10586-5A Installation Wiring Kit PCM-9577F $39.00
Cables & Adapters
CAB-15-002-1 TV-OUT CABLE Call
