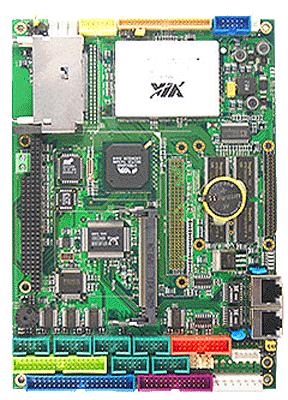

PCM-6240


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCM-6240 Single-Board-Computer is powered by a Fanless 533 MHz VIA Mark Processor which is a high performance, cost-effective processor with integrated ProSavage4 SA graphics controller. The processor integrates VIA’s high-performance ProSavage4 3D / 2D graphics controller with LCD and Flat Panel display interfaces.

Features


  • CPU: Fanless VIA Mark CoreFusion running at 533MHz
  • 256MB of on-board SDRAM RAM
  • Integrated 2D/3D graphics with MPEG2 Accelerator
  • Dual 10/100 Base-T Ethernet
  • 2 x USB Ports
  • 6 x Serial Ports
  • PC/104+ Expansion

Overview


The PCM-6240 Single-Board-Computer is powered by a Fanless 533 MHz VIA Mark Processor which is a high performance, cost-effective processor with integrated ProSavage4 SA graphics controller. The processor integrates VIA’s high-performance ProSavage4 3D / 2D graphics controller with LCD and Flat Panel display interfaces.

The PCM-6240’s South Bridge is PC98 / PC99 compliant with integrated UltraDMA-100/66/33 IDE, 2 USB 1.1 ports, Dual Ethernet and AC-97 link supporting digital audio functions. The PCM-6240 integrates S3 Graphics and 128-bit ProSavage4 graphics accelerators that bring mainstream graphics performance to the PCM-6240 with leading-edge 2D, 3D and DVD video acceleration as well as combining the industry’s first integrated AGP 4X solution with Microsoft Direct-X texture compression and massive 2Kx2K textures to deliver unprecedented 3D performance and image quality. In addition, two USB ports are available as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices) and four RS-232 and two RS-232/485 serial ports. The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.
Manuals
Vega86-6240_UM_v1r1A.pdf
Data Sheets

Specifications


Processor
CPU
Via Mark CoreFusion
Clock Speed
533 MHz
Processor Misc.
  • Chipset: VIA VT82C686B
  • L1 Cache: 64KB
  • L2 Cache: 64KB
Memory
RAM
256MB SDRAM On-board
Primary Flash
1x CompactFlash™ card Type I/II 1x EmbedDisk
BIOS/ Bootloader
AMI BIOS
Primary IO
GPIO
1x 16 bit GPIO
Disk Interface
1x EIDE (UDMA 33/66/100) support 2x IDE Drives
Ethernet
Dual 10/100 Ethernet Realtek 8100B
Serial Ports
1x Parallel SPP/EPP/ECP, 4x RS-232, 2x RS-232485
Primary I/O Misc.

VGA/Flat-Panel Interface

  • Video Memory: Shared System Memory 8M/16M/32M
  • Display Type: VGA, SVGA, XGA, SXGA and DSTN/TFT Flat Panel interface support
Secondary IO
Expansion
Bus Expansion
1x PC/104+
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental


Dimensions
Size
5.75" ×8" (146mm × 203mm)
Power Requirements
Typical Voltage
5 V
Typical Current
2.5 A
Environmental
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-6240-0 EBX SBC W/ VIA 533 SBC, 256 MB RAM With Cables Call
