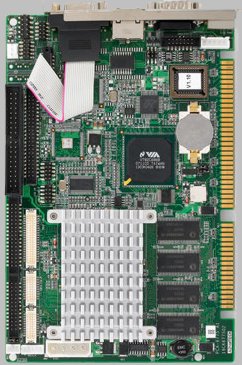

PCA-6775


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCA-6775 utilizes an onboard VIA 533 or 800 MHz Mark Fanless processor, which has an integrated VIA Twister chipset, making the PCA-6775 one of the smallest and powerful SBCs on the market. The PCA-6775 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. ISA Bus expansion allows features to be quickly added using any ISA Bus expansion module.

Features


  • VIA Mark 533MHz or 800MHz Fanless CPU
  • Supports CompactFlash
  • Optional SATA Interface
  • ISA Bus Expansion Interface
  • 10/100BaseT Ethernet & optional Triple LAN
  • 8 GPIO Lines
  • 18-bit LCD & CRT interface

Overview


The PCA-6775 utilizes an onboard VIA 533 or 800 MHz Mark Fanless processor, which has an integrated VIA Twister chipset, making the PCA-6775 one of the smallest and powerful SBCs on the market. The PCA-6775 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. ISA Bus expansion allows features to be quickly added using any ISA Bus expansion module. The PCA-6775 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The integrated Savage4™ AGP 4X 3D Graphics core maintains excellent graphics performance and provides VGA/LCD support up to 1280 x 1024. SDRAM memory capacity up to 512MB is large enough to drive the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, or DOS 6.22. A CompactFlash socket supports Type I/II CompactFlash Cards, which can be used to eliminate the use of fragile hard disks, increasing reliability in harsh environments. Four USB 1.1 ports are available as well as one parallel port (SPP/EPP/ECP modes), one high-speed RS-232 and one high-speed RS-232/485/422 serial port. With its industrial grade reliability, the PCA-6775 can operate continuously at temperatures up to 140º F (60º C) without a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

Specifications


Processor
CPU
VIA Mark Fanless CPU
Clock Speed
533 MHz
Processor Misc.
  • Optional Processor : VIA Mark 800MHz Fanless CPU with Integrated Video
  • Chipset: VIA VT8606
Memory
RAM
512MB 1x SODIMM SDRAM
Primary Flash
1x CompactFlash™ card Type I
Primary IO
GPIO
8x Digital Input/Output lines
Disk Interface
2x EIDE (Ultra DMA33/66/100)
Audio
AC97 (line-in/Line-out/Mic-in)
Ethernet
Realtek 8100 10/100 Base-T Fast Ethernet
Serial Ports
1x Parallel, 1x RS-232, 1x RS-232/422/485
Primary I/O Misc.

Infrared: 115 Kbps, IrDA 1.1 Compliant

Secondary IO
PS/2
Yes
Expansion
Bus Expansion
1x ISA bus
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility

Microsoft Windows Vista

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.64 A
Max Boot Current
2.2 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
