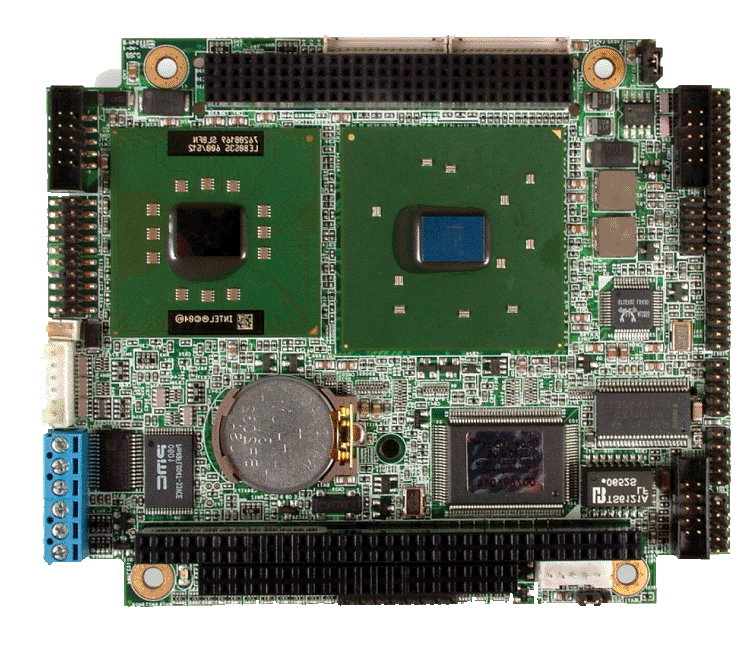

Em104P-i8523


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The Em104P-i8523 utilizes an onboard Intel Ultra-Low Voltage Fanless Celeron M 600MHz or Pentium M 1.4Ghz CPU, which makes the Em104P-i8523 one of the smallest and most powerful SBCs on the market. The Em104P-i8523 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104+ I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 or PC/104+ expansion modules.

Features


  • Intel Ultra Low Voltage Embedded Celeron M or Pentium M Processor
  • 200-pin DDR SO-DIMM up to 1GB DDR SDRAM
  • Support of both CRT and LCD
  • Intel 82562ET 10/100 Base-T Ethernet
  • 4 x USB Ports, 2 x Serial Ports
  • Supports PC/104 and PC/104+ Interface

Overview


The Em104P-i8523 utilizes an onboard Intel Ultra-Low Voltage Fanless Celeron M 600MHz or Pentium M 1.4Ghz CPU, which makes the Em104P-i8523 one of the smallest and most powerful SBCs on the market. The Em104P-i8523 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104+ I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 or PC/104+ expansion modules. The Em104P-i8523 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The Em104P-i8523 provides the quality features available on SBC boards several times its size. The Intel 852GM Extreme Graphics2 engine maintains excellent graphics performance and provides CRT/LCD support up to 2048 x 1536. SDRAM memory capacity up to 1GB is large enough to accommodate the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows Vista and DOS 6.22. Four USB 2.0 ports are available as well as one parallel port (SPP/EPP/ECP modes) which is shared with a Floppy Disk Drive port, and 2 serial ports (RS-232). With its industrial grade reliability, the Em104P-i8523 can operate continuously at temperatures up to 104º F (40º C) without a fan and up to 140º F (60º C) with a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

Specifications


Processor
CPU
Intel Ultra Low Voltage Embedded Celeron M
Clock Speed
600 MHz
Processor Misc.
  • Optional Processor : Pentium M 1.4 GHz processor
  • Chipset: Intel 852GM + ICH4
Memory
BIOS/ Bootloader
Phoenix-Award PnP Flash BIOS
Memory Misc.

L2 Cache: 2 MByte (Max.)

Primary IO
Disk Interface
FDD, Enhanced IDE (UDMA 33)
Audio
ALC655 AC97 Codec (Mic-In/Line-In/Line-Out)
Ethernet
Intel 82562ET 10/100 Ethernet
USB
4x USB 2.0
Serial Ports
1x Parallel SPP/EPP/ECP, 1x RS232, 1x RS232/485
Secondary IO
Display
Display Type
Flat Panel and CRT displays
Chipset
Intel 852GM Extreme Graphics2 Engine
Resolution
Up to 2048 x 1536
LVDS Interface
Flat Panel 18/36-bit @ up to 1280 x 1200 LVDS interface
Multi-Display
Dual Independent CRT+LVDS
Expansion
Bus Expansion
1x PC/104, 1x PCI-104+
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22

Mechanical and Environmental


Dimensions
Size
4.6" ×3.8" (116mm × 96mm)
Power Requirements
Typical Voltage
5 V
Typical Current
3.22 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
EM104P-I8523VL/C PC/104+ 600MHZ CELERON M AUDIO/VIDEO/LAN Call
EM104P-I8523VL/P PC/104+ 1.4GHZ PENTIUM M AUDIO/VIDEO/LAN Call

Peripheral Options


Product # Description Price
Wiring Kits
CBK-13-8523-00 WIRING KIT FOR EM104P-I8523VL Call
