Em104-i613


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

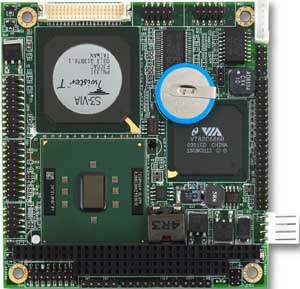

The Em104-i613 utilizes an onboard Intel Ultra-Low Voltage Fanless Celeron 400 or 650Mhz CPU, along with the VIA Twister chipset, making the Em104-i613 one of the smallest and most powerful SBCs on the market. Unlike other high-end PC/104 SBCs, the Em104-i613 maintains the true PC/104 standard form-factor and does not require “wings”. The Em-i613 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places.

Features


  • CPU: Intel Ultra Low Voltage Embedded Celeron 400 MHz or Celeron 650 MHz
  • Fanless 0 ~ 40°C (32 ~ 104º F) , or Fanned 0 ~ 60°C (32 ~ 140°F) operation
  • Network: Realtek RTL8100BL, 10/100 Mbps, Wake-On-LAN supported
  • Display Chipset: S3® Savage4™
  • Display: Flat Panel/CRT and TFT/DSTN LCD

Overview


The Em104-i613 utilizes an onboard Intel Ultra-Low Voltage Fanless Celeron 400 or 650Mhz CPU, along with the VIA Twister chipset, making the Em104-i613 one of the smallest and most powerful SBCs on the market. Unlike other high-end PC/104 SBCs, the Em104-i613 maintains the true PC/104 standard form-factor and does not require “wings”. The Em-i613 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104- I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 expansion modules. The Em104-i613 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The Em104-i613 provides the quality features available on SBC boards several times its size. The VIA VT8606 Twister™ North Bridge with integrated Savage4™ AGP 4X 3D Graphics core maintains excellent graphics performance and provides VGA/LCD support up to 1280 x 1024. SDRAM memory capacity up to 512MB is large enough to drive the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows NTE, and DOS 6.22. A CompactFlash socket supports Type I/II CompactFlash Cards, which can be used to eliminate the use of fragile hard disks, increasing reliability in harsh environments. Two USB 1.1 ports are available as well as one parallel port (SPP/EPP/ECP modes) and 2 high speed serial ports (RS-232 and RS-232/422/485). With its industrial grade reliability, the Em104-i613 can operate continuously at temperatures up to 104º F (40º C) without a fan and up to 140º F (60º C) with a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

Specifications


Processor
CPU
Intel® ULV Celeron™
Clock Speed
400 MHz
Processor Misc.
  • Optional Processor : Celeron 650 MHz processor with FSB 100/133 MHz µBGA package
  • Chipset: VIA VT8606 Twister™ North Bridge with integrated Savage4™ AGP 4X Graphics core and VT82C686B “Super” Southbridge
Memory
RAM
512MB 1x 144 pin SODIMM
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
2 MB AWARD® Flash BIOS
Memory Misc.

L2 Cache: Integrated on CPU (256 KB ~ 512 KB)

Primary IO
Disk Interface
FDD, Enhanced IDE (UDMA 33)
Ethernet
RTL8100BL 802.3u 10/100 Ethernet
USB
2x USB 1.1
Serial Ports
2x high-speed COM, 1x RS-232C, 1x RS-232C/422/485, 16C550 compatible UART, 16 byte FIFO
Primary I/O Misc.
  • IrDA: Support SIR IrDA 1.1 compliant



Secondary IO
PS/2
Yes
Display
Display Type
Flat Panel and CRT displays
Chipset
4x AGP S3® Savage4™ 3D and S3® Savage 2000™ 2D engines integrated in VT8606
Resolution
Up to 1280 x 1024 @ 32bpp
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, FreeRTOS

Mechanical and Environmental


Dimensions
Size
3.5" ×3.8" (88mm × 96mm)
Weight
0.4 g (0 lbs)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
2.1 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
EM104-I613/C400C EMCORE-I613 ULV CELERON 400 PC/104 SBC Call
EM104-I613/C650C EMCORE-I613 ULV CELERON 650 PC/104 SBC Call
