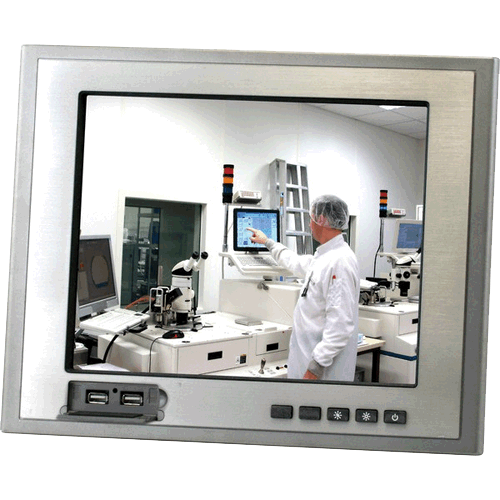

PPC-2153 Rugged 15" Panel PC


  • 15” XGA (1024 x 768) TFT LCD Display
  • Intel® Atom™ D2550 Processor, Fanless Cooling System
  • up to 4 GB RAM
  • 2x RS-232, 1x RS-232/422/485

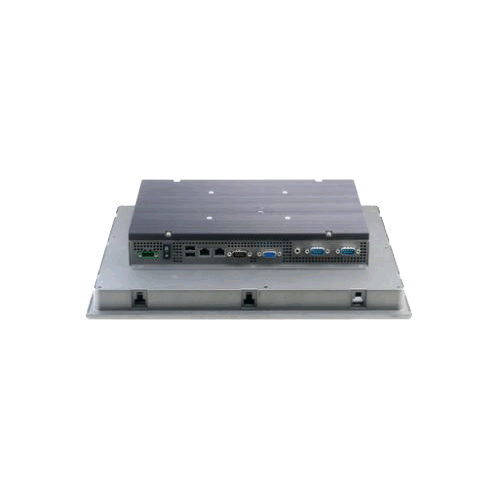

  • 4x USB 2.0 Ports (2 Front & 2 on Rear)
  • 2x Gigabit Ethernet

Receive consultation or quotes about this product from our sales staff.

Request a quote
PPC-2153 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 15" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CompactFlash socket, the AHP-2153 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be VESA 100 wall mounted.

Features


  • 15” Rugged Fanless Touch Panel Computer With Onboard Intel® Atom™ D2550 Processor, 2 GB RAM
  • Intel® Atom™ D2550 Processor, Fanless Cooling System
  • up to 4 GB RAM
  • 2x RS-232, 1x RS-232/422/485
  • 4x USB 2.0 Ports (2 Front & 2 on Rear)
  • 2x 10/100/1000Base-TX with RJ-45
  • 2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal)
  • 1x VGA
  • Display type: 15" TFT-LCD
  • Max. Resolution: 1024 x 768
  • Max. Colors: 16.7M colors
  • Luminance: HTT: 400 cd/m2, STT: 800 cd/m2
  • Viewing Angle: 160°(H)/ 140°(V)
  • Back Light: LED
  • Back Light: MTBF (Hours) HTT: 50,000, STT: 100,000
  • Type: 5-wire resistive Touch Screen
  • Light Transmission: 80%
  • Life Time: 10 Million Touches
  • 1x Mini-Card
  • AMI BIOS
  • Power Requirements: 9 ~ 30V DC Input
  • Operating Temperature: -4°F ~ 149°F (-20°C ~ 65°C) w/ Airflow, -4°F ~ 140°F (-20°C ~ 60°C) w/o Airflow
  • Storage Humidity: 10%~95% @ 40°C; non-condensing
  • Wide Operation Temperature: -20˚C ~ 60˚C
  • 18.96 lb (8.62 Kg)
  • Dimensions: 15.35” x 12.74” x 3.08” (389.98mm x 323.48mm x 78.3mm)

Overview


PPC-2153 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 15" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CompactFlash socket, the AHP-2153 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be VESA 100 wall mounted.

For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.

Manuals
AHP-2153 Manual 2nd Ed.pdf
Data Sheets
AHP-2153.pdf

Specifications


Processor
CPU
Intel® Dual Core™ Atom™ D2550 Onboard
Clock Speed
1.86 GHz
Memory
RAM
2 GB
RAM Type
up to 4 GB
Primary Flash
CFAST
Secondary Flash
1x 2.5 inch SATA HDD/SSD or DOM
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal)
Video Out
1x VGA
Ethernet
2x 10/100/1000Base-TX with RJ-45
USB
4x USB 2.0 Ports (2 Front & 2 on Rear)
Serial Ports
2x RS-232, 1x RS-232/422/485
Secondary IO
Touch
5-wire Resistive Touch Screen
Display
Display Type
15" TFT-LCD
Resolution
1024 × 768 px
Viewing Angle
160°(H)/ 140°(V)
Luminance
HTT: 400 cd/m2, STT: 800 cd/m2
LCD Misc.

LCD

Display type 15" TFT-LCD
Max. Resolution 1024 x 768
Max. Colors 16.7M colors
Luminance HTT: 400 cd/m2, STT: 800 cd/m2
Viewing Angle 160°(H)/ 140°(V)
Back Light LED
Back Light MTBF (Hours) HTT: 50,000, STT: 100,000

Touch Screen

Type 5-wire resistive Touch Screen
Light Transmission 80%
Life Time 10 Million times

Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
15.35" ×12.74" ×3.08" (389mm × 323mm × 78mm)
Weight
18.96 lb
Dimensions Misc.

Dimensions: 15.35” x 12.74” x 3.08” (389.98mm x 323.48mm x 78.3mm)

Power Requirements
Power Misc.

9 ~ 30V DC input

Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature65 C (149 F)
Upper Operating Humidity
95%
Environmental Misc.
  • Operating Temperature:
  • -4°F ~ 149°F (-20°C ~ 65°C) w/ Airflow
  • -4°F ~ 140°F (-20°C ~ 60°C) w/o Airflow

Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-2153HTT-A2-1012 15" Touch Screen PPC D2550.2G RAM,-20~60C, 3 pin.9~30V DC.R-TS.B3 $1362.00
PPC-2153STT-A2-1012 15" Touch Screen PPC, 800 nits.D2550.2G RAM,-20~60C.3 pin.9~30V DC.R-TS.B3 $1841.00
