PPC-106T


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

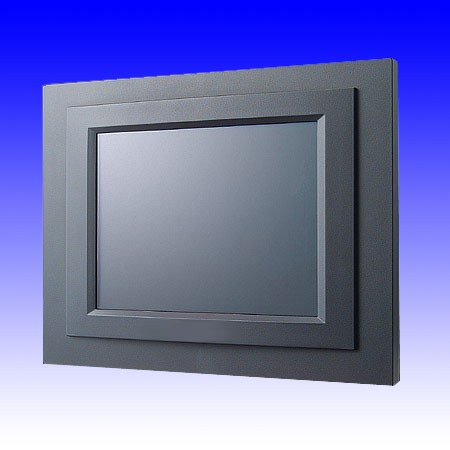

PPC-L106T fanless Panel PC supports the low power AMD Geode LX 800 (500 MHz) processor. It is a powerful and compact Panel PC ideally suited for operator interface (HMI) applications. Its 10.4" 800 x 600 display, 1 GB DDR capacity and 10/100Base-T Ethernet controller allow it run virtually any Operating System making it the ideal choice for many applications. For example, thin clients, health care and other networked environments, in addition to traditional process control industrial automation.

Features


  • 10.4" TFT LCD
  • AMD Geode™ LX 800 (500 MHz) CPU on board
  • System memory 256 MB expandable up to 1 GB of DDR
  • One Compact Flash ® Type I II socket (True IDE Mode)
  • 10/100Base-T Ethernet or Dual LAN (Optional)
  • Fanless and ultra-low power consumption
  • Brightness control from 0 ~ 100%
  • Mini PCI Socket and optional PCI/ISA expansion kit
  • Same housing as PPC-105T
  • Automatic data flow control over RS-485

Overview


PPC-L106T fanless Panel PC supports the low power AMD Geode LX 800 (500 MHz) processor. It is a powerful and compact Panel PC ideally suited for operator interface (HMI) applications. Its 10.4" 800 x 600 display, 1 GB DDR capacity and 10/100Base-T Ethernet controller allow it run virtually any Operating System making it the ideal choice for many applications. For example, thin clients, health care and other networked environments, in addition to traditional process control industrial automation.

The PPC-L106T is the most versatile 10.4" LCD PC available. The slim chassis fits anywhere and can be mounted in several different configurations. It can be panel mounted, wall mounted or placed upright on a desktop. Integrating the PPC-L106T into a custom system is made simple through its open-system design and comprehensive back panel I/O interface.

Manuals
ppc-l106t.pdf
Data Sheets

Specifications


Processor
CPU
onboard AMD Geode LX 800
Clock Speed
500 MHz
Memory
Primary Flash
supports one internal Type II CompactFlash™ socket
Memory Misc.
  • Memory: One 200 pin SODIMM socket up to 1GB DDR, 256 MB built-in.
  • HDD: One internal 2.5"drive and one external IDE connector
Primary IO
Audio
Built-in Mic-in / Line-out jacks
Video Out
10.4
Ethernet
10/100 Base-T Ethernet interface (Dual LAN Optional)
USB
4x USB 2.0 (2 internal, 2 external)
Serial Ports
3x RS-232, 1x RS-232/422/485
Primary I/O Misc.

Additional I/O: 1 parallel port, external VGA port

Touchscreen

(Optional)

  • Type: Analog resistive, continuous resolution
  • Light Transmission: 80%
  • Controller: RS-232 interface (COM 4)
  • Software Driver: Supports Windows XP, CE
  • Lifetime: 35 million touches
Secondary IO
PS/2
Yes
Display
Display Type
10.4" TFT LCD
Resolution
800 × 600 mm
Pixel Pitch
0.264 × 0.264 mm
LCD Colors
256K
Viewing Angle
60° (horizontal), 35°(vertical)
Luminance
230 nits
LCD Misc.
  • Simultaneous Mode: Yes
  • Backlight MBTF: 20,000 hrs.

Mechanical and Environmental


Dimensions
Size
13.5" ×10.4" ×3.64" (342mm × 264mm × 92mm)
Weight
3.2 kg
Power Requirements
Power Misc.
  • Output Rating : 65 Watts
  • Input Voltage: 100-240VAC @50/60 Hz autoranging
  • Output Voltage: +5V @ 3.5A, +12V @ 4A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature45 C (113 F)
Environmental Misc.
  • Relative Humidity: 10 ~ 95% @ 40° C (non-condensing)
  • Shock (Operating): 10 G peak acceleration (11 ms. duration)
  • EMC: CE, FCC Class B approved, BSMI
  • Front Panel Protection: Front panel meets NEMA 4 / IP 65
  • Vibration: 1G

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-L106T-070 AMD LX800 10.4" PANEL PC $936.00
PPC-L106T-R70 AMD LX800 10.4" PANEL PC W/RES TS $1092.00

Peripheral Options


Product # Description Price
Peripherals
PPC-100-Stand Stand Kit $115.00
PPC-100-SWINGARM Swing Arm Kit $102.00
PPC-100-Wall-MT Wall Mount Kit $64.00
PPC-105-RACK-MT 19" Rack Mounting kit Call
PPC-EXP-L106 PCI/ISA expansion kit for PPC-L106T Call
