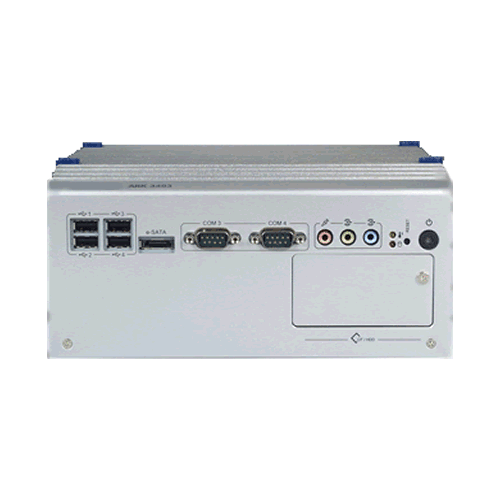

Rugged Server-In-a-Box (SIB)


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The EMAC Rugged Server-In-a-Box (SIB), is an Industrial, small footprint, yet powerful Server. The Rugged SIB utilizes the Intel Atom, 1.6GHz fanless processor allowing it to run Linux and XPE Operating Systems. Like all SIBs, the standard Rugged SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications where vibration might be an issue.

Features


  • Intel® Atom™ D510/D525 dual core up to 1.8 GHz fanless embedded IPC
  • 2 GB 200p DDR2
  • 4GB CompactFlash™ Flash Disk Expandable to over 32 GB
  • Supports VGA and LVDS dual display and support for widescreens with high resolution
  • Dual Gigabit Ethernet
  • 2 RS-232
  • 2 RS-232/422/485
  • 6 Universal Serial Bus (USB) 2.0 Host ports
  • 1 Slot PCI and 1 Slot PCIe x1
  • 2 Mini PCIe
  • 150W Power Adapter

Overview


The EMAC Rugged Server-In-a-Box (SIB), is an Industrial, small footprint, yet powerful Server. The Rugged SIB utilizes the Intel Atom, 1.6GHz fanless processor allowing it to run Linux and XPE Operating Systems. Like all SIBs, the standard Rugged SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications where vibration might be an issue. The Rugged SIB is just as comfortable in a basement wiring closet as it is on a desktop.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

Manuals
ARK-3403.pdf
Data Sheets
ARK-3403_DS.pdf

Specifications


Processor
CPU
Intel® Atom™ D510 / D525 up to 1.8GHz
Memory
RAM Type
200p DDR2
Memory Misc.

Flash: 4GB CompactFlash™ Flash Disk Expandable to over 32 GB

Primary IO
Video Out
VGA, LVDS
Ethernet
Dual Gigabit Ethernet
USB
6x USB 2.0
Serial Ports
2x RS-232, 2x RS-232/422/485
Secondary IO
Misc
Operating Systems
EMAC OE Linux, MicroPython, EMAC OE, Yocto, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental


Dimensions
Size
8.66" ×4.04" ×7.87" (219mm × 102mm × 199mm)
Weight
8.8 lb
Dimensions Misc.
  • Construction: Aluminum housing
  • Mounting: Desk/Wall mount
Power Requirements
Power Misc.
  • Power Adapter: 150W power adapter included
  • Power Requirements: 12 ~ 14 Vdc
Environmental
Environmental Misc.
  • Operating Temperature: With extend temperature CompactFlash disk: -10 ~ 55° C
  • Operating Humidity: 95% @ 40° C, non condensing
  • Vibration: With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
  • Shock:With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration
  • EMC: CE/FCC class A, CCC, BSMI
  • Safety: UL, CCC, BSMI

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-04300-1 ATOM D510 1.66 GHZ SIB, 2GB DDR2 RAM, 4 GB CF $767.00
SIB-04304-1 ATOM D525 1.8 GHZ SIB, 2GB DDR2 RAM, 4 GB CF $819.00

Peripheral Options


Product # Description Price
Operating Systems
SL05x-XON-p EMAC OE Linux 5.x for x86 Panel PC (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
