SIB-IS270


  • Intel® N3350 Processor SoC
  • Up to 8 GB DDR3L SODIMM
  • 6x 10/100/1000Base-TX Ethernet Port
  • 1x CFast™ Socket, 1x 2.5" drive
  • 1x Mini-Card Slot  with SIM Socket
  • +9 to 36V DC Power Input Terminal Block
  • 2x COM port, 2x USB3.0, 1x VGA
  • -40°C to 75°C Operating Temp. (fanless)

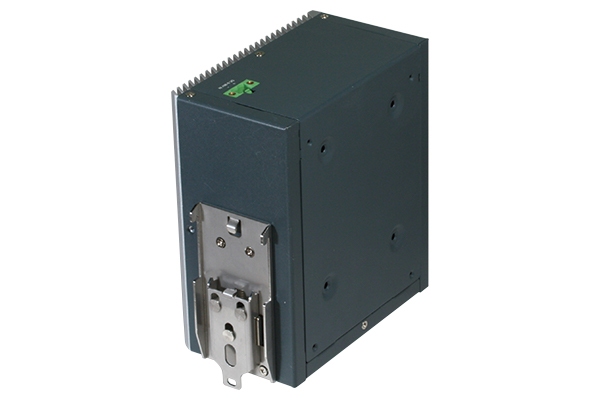

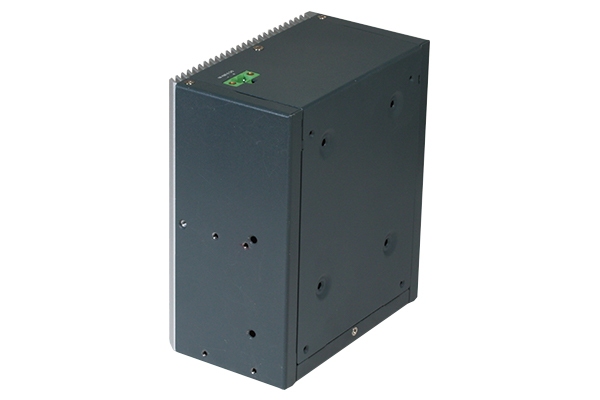

The ICS-6270, is a rugged hardware network platform that is powered by the Intel® Apollo Lake. Built to protect the integrity and usability of industrial control systems and SCADA, the ICS-6270 is designed for industrial resiliency, bringing superior reliability and supercomputing capabilities to harsh environments such as energy, manufacturing, and the oil & gas industries. The ICS-6270 is reinforced by a tough steel casing and an aluminum heatsink to provide maximum thermal control, affording maximum reliability and interoperability within critical infrastructure and spaces.

Features


  • Intel® N3350 Processor SoC
  • Up to 8 GB DDR3L SODIMM
  • 6x intel i211 ethernet ports supporting 10/100/1000Base-TX Ethernet Port
  • 1x CFast™ Socket
  • 1x 2.5" drive
  • 1x Mini-Card Slot with SIM Socket
  • +9 to 36V DC Power Input Terminal Block
  • 2x Serial COM ports, supporting isolated RS232/422/485
  • 2x USB3.0
  • 1x VGA (HDDB15 VGA connector, Displayport optional)
  • -40°C to 75°C Operating Temp. (Fanless)

Overview


The ICS-6270, is a rugged hardware network platform that is powered by the Intel® Apollo Lake. Built to protect the integrity and usability of industrial control systems and SCADA, the ICS-6270 is designed for industrial resiliency, bringing superior reliability and supercomputing capabilities to harsh environments such as energy, manufacturing, and the oil & gas industries. The ICS-6270 is reinforced by a tough steel casing and an aluminum heatsink to provide maximum thermal control, affording maximum reliability and interoperability within critical infrastructure and spaces. LAN bypass function is also supported, availing the user of a multitude of options such as cybersecurity, PLC protection and firewall management.

Applications

  • Industrial Cyber Security
  • Critical Infrastructure Protection
  • Industrial Control Systems Security
Manuals
ICS-6270_manual.pdf
Data Sheets
ICS-6270.pdf

Specifications


Processor
CPU
Intel Celeron N3350 Processor SoC
Clock Speed
1.1 GHz
Memory
RAM
up to 8GB DDR3L SODIMM Socket
RAM Type
1x 204-pin DDR3L 1867MHz SODIMM
Primary Flash
1x CFast socket (Optional mSATA)
Secondary Flash
1x 2.5 Inch SATA HDD / SSD
BIOS/ Bootloader
AMI BIOS
Primary IO
GPIO
1x GPIO Programmable push button
Disk Interface
SATA II
Video Out
VGA (optional DP)
Ethernet
6x Intel i211 Gigabit ethernet
USB
2x USB 3.0
Serial Ports
2x RS232/422/485 with Isolation
Secondary IO
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental


Dimensions
Size
5" ×3" ×5.75" (127mm × 76mm × 146mm)
Power Requirements
Power Misc.

Wide voltage input: 2 Pin Terminal Block +9~36V DC Power Input

Environmental
Low Operating Temperature-40 C (-40 F)
High Operating Temperature75 C (167 F)
Upper Operating Humidity
80%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-IS270-000R ICS-6270A-A10-00, N3350 2x1.1GHz, SODIMM, CFAST, SATA, 2x USB3, 6x LAN, VGA (-40°C to 75°C) $545.00

Peripheral Options


Product # Description Price
Peripherals
PER-FLS-00202-R CFAST INDUSTRIAL 16G MLC StdTemp Call
PER-RAM-00161 4GB DDR3L 1.35V SODIMM Call
PER-RAM-00165 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SW010-LBS000X0E Win10 IoT Ent LTSB 2016 Entry Intel Atom, AMD E1, E2, A4, A6, G-Series Celeron (Small Core: N3160, N3060, N3010, N2930, N2807, J1900) (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $48.00
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00
