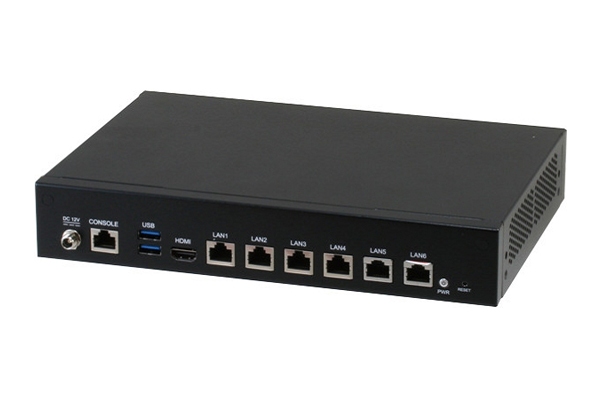

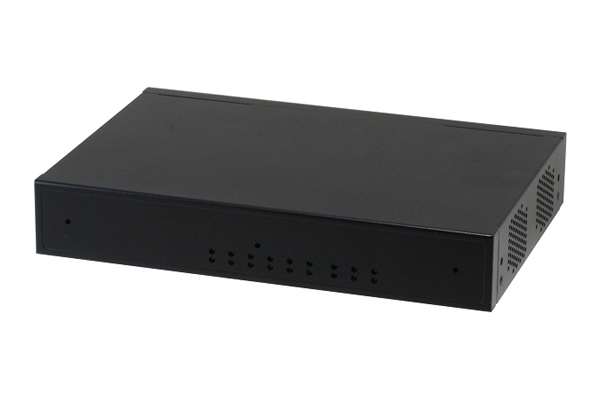

FWS-2260, a table-top device meant to bring security to small-scale networks.
Available with a dual-core Intel® Celeron® N3000 Series SoC (Codename Braswell), the device is a multi-purpose network appliance that empowers Intrusion detection/prevention, WAN optimization, network access control, load balancing, web content filtering, unified threat management, and wireless network security.
Features
- Onboard Intel Pentium Celeron N3000 Series Processor SoC
- 2x DDR3L SODIMM, Up to 8 GB total
- 6x Intel i211 Gigabit Ethernet, RJ-45 LAN connections
- 1x 2.5” SATA HDD bay
- CompactFlash™ socket (optional CFast socket or mSATA slot)
- 2x Mini-card slot (with SIM Socket) via USB Signal
- RJ-45 console,
- 2x USB3.0
Overview
FWS-2260, a table-top device meant to bring security to small-scale networks.
Available with a dual-core Intel® Celeron® N3000 Series SoC (Codename Braswell), the device is a multi-purpose network appliance that empowers Intrusion detection/prevention, WAN optimization, network access control, load balancing, web content filtering, unified threat management, and wireless network security.
The device’s capacity as a multi-purpose network security appliance makes it conducive in locations where there is insufficient space or too impractical for large, bulky, server-level devices, such as in branch/home offices, SMBs or retail outlets. It is also compactly designed with a dimension of 230 x 178 x 44 mm and uses a fanless thermal solution.
A powerful CPU aside, the device is made to be compatible with both wired and wireless signals as a redundancy of one another and carries six GbE LAN ports with LAN bypass (selected SKUs only). A MiniCard slot, SATA 6.0Gb/s, and USB 3.0 ports are available for expansion needs and optional TPM modules can be added for enhanced security.
Small, secured, superior: these are the words that defines the FWS-2260. It is an all-in-one appliance desirable for all administrators of small networks. And with the power of the new chips, this goal is realized with the FWS-2260.
Manuals | |
---|---|
FWS-2260_manual.pdf | Download (PDF) |
Data Sheets | |
---|---|
FWS-2260_DS.pdf | Download (PDF) |
Specifications
Processor | |
---|---|
CPU | Intel Celeron N3160/N3060 |
Clock Speed | 1.6 GHz |
Processor Misc. | Intel Celeron N3060 2x 1.6GHz burst to 2.48GHz 6W Intel Celeron N3160 2x 1.6GHz burst to 2.24GHz 6W |
Memory | |
---|---|
RAM | 2x DDR3L SODIMM up to 8GB |
RAM Type | DDR3L 1600MHz SODIMM |
Primary Flash | Compact flash socket (optional CFast or mSATA) |
Secondary Flash | 1x 2.5 inch SATA drive bay and SATAII port |
BIOS/ Bootloader | AMI BIOS |
Primary IO | |
---|---|
GPIO | 1x GPIO Programmable push button |
Disk Interface | SATA II |
Video Out | HDMI |
Ethernet | 6x Intel i211 Gigabit Ethernet (4x Intel i211 Gigabit Ethernet optional) |
USB | 2x USB 3.0 |
Serial Ports | 1x RJ45 Console (speed set in CMOS) |
Secondary IO | |
---|---|
Misc | |
---|---|
Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) |
Mechanical and Environmental
Dimensions | |
---|---|
Size | 10.23" ×7.01" ×1.73" (259mm × 178mm × 43mm) |
Power Requirements | |
---|---|
Power Misc. | 12v 60W Power adapter included. |
Environmental | |
---|---|
Low Operating Temperature | 0 C (32 F) |
High Operating Temperature | 40 C (104 F) |
Upper Operating Humidity | 80% |
Related Products |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
Product # | Description | Price |
---|---|---|
SIB-FW260-006R | FWS-2260E6-A10-A11-01, N3060 2x 1.6GHz, 2x SODIMM, CF Socket, SATA, 2x USB3, 6x GbE LAN, HDMI | Call |
SIB-FW260-026R | FWS-2260E6-A10-A11-00, N3160 2x 1.6GHz, 2x SODIMM, CF Socket, SATA, 2x USB3, 6x GbE LAN (2x lan bypass), HDMI | Call |
Peripheral Options
Product # | Description | Price |
---|---|---|
Peripherals | ||
PER-FLS-00053-R | 8GB CompactFlash Card Standard (-25°C to 85°C) | Call |
PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
Cables & Adapters | ||
CAB-80-020 | C5 US cord "Mickey Mouse" three round. | $8.00 |
Operating Systems | ||
SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
SW010-LBS000X0E | Win10 IoT Ent LTSB 2016 Entry Intel Atom, AMD E1, E2, A4, A6, G-Series Celeron (Small Core: N3160, N3060, N3010, N2930, N2807, J1900) (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $48.00 |
S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
