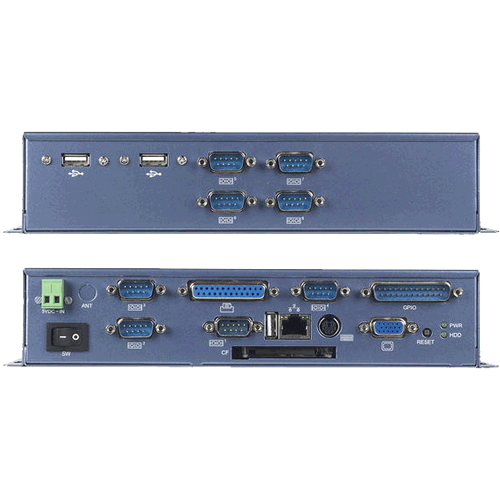

SIB-EB7DX


  • Vortex86DX 800MHz
  • VDX-6327RD Board
  • 256MB DDR2 (512MB Optional)
  • 8x RS232 (1x RS232/422/485)
  • 3x USB 2.0 Ports
  • 1x 10/100 Ethernet

Receive consultation or quotes about this product from our sales staff.

Request a quote
The EMAC Vortex Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Vortex SIB utilizes the Vortex86DX 6327RD, 800MHz fanless processor allowing it to run Linux and WinCE Operating Systems. Like all SIBs, the Vortex SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Vortex SIB is just as comfortable in a basement wiring closet as it is on a desktop.

Features


  • Vortex86DX 800MHz
  • VDX-6327RD
  • 256MB DDR2 (512MB Optional)
  • 8x RS232 (1x RS232/422/485)
  • 1x LPT Parallel port
  • 3x USB 2.0 Ports
  • 1x 10/100 Ethernet
  • 16 GPIO (via DB25F connector)
  • 4MB SPI Flash Onboard
  • Compact Flash Type I/II
  • 44-pin IDE to MicroSD (Optional)
  • VGA/LCD/LVDS
  • PWM 16-24 Channels
  • Watchdog Timer
  • 102 x 146mm (4.01" x 5.75")
  • Single Voltage +5V @ 840mA
  • Wide Temperature
  • -20°C - +70°C
  • -40°C ~ +85° (Optional)

Overview


The EMAC Vortex Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Vortex SIB utilizes the Vortex86DX 6327RD, 800MHz fanless processor allowing it to run several Operating Systems. Like all SIBs, the Vortex SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Vortex SIB is just as comfortable in a basement wiring closet as it is on a desktop.

The Vortex SIB is suitable for broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human machine interface, etc.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Manuals
VDX-6327RD_UM_v1r1A.pdf
Data Sheets
eb_20X_datasheet.pdf
VDX-6327RD_datasheet.pdf

Specifications


Processor
CPU
Vortex86DX
Clock Speed
800 MHz
Memory
RAM
256 MB
RAM Type
DDR2
Primary Flash
Compact Flash Type I/II
Secondary Flash
4 MB SPI Onboard
BIOS/ Bootloader
AMI BIOS
Primary IO
GPIO
16x GPIO
Disk Interface
1x EIDE, Compact flash
Video Out
VGA/LCD/LVDS
Ethernet
1x 10/100 Ethernet
USB
3x USB 2.0 Ports
Serial Ports
8x RS-232 Ports (1x RS-232/422/485 Port)
Secondary IO
Timers/ Counters/ PWM
PWM 16-24 Channel
LPT Port
Yes
PS/2
Yes
Power Supply
Single Voltage +5V @840mA
Wireless
Optional
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22

Mechanical and Environmental


Dimensions
Size
4.01" ×10" ×5.75" (101mm × 254mm × 146mm)
Weight
150 g (0 lbs)
Power Requirements
Voltage
5 V
Typical Current
840 mA
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature70 C (158 F)
Environmental Misc.

-40°C ~ +85° (Optional)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-EB7DX-000-R EB-207 + VDX-6327RD-256MB, 3.5" SBC Chassis+SBC $271.00
SIB-EB7DX-000-X EB-207 + VDX-6327RD-256MB-X, 3.5" SBC Chassis+SBC (-40°C to 80°C Option) $298.00

Peripheral Options


Product # Description Price
Peripherals
PER-FLS-00048-R 4GB CompactFlash Card Standard (-25ºC to 85ºC) $25.00
PER-FLS-00050-R 4GB CompactFlash Card Industrial Temp. (-40~85°C) $60.00
Power Supplies
PER-PWR-00070-R PDX/eBox 5v, 4A, 20W Power Supply $27.00
PER-PWR-00071-R PDX/5v, 4A, 20W Power Supply UK $27.00
PER-PWR-00072-R PDX/5v, 4A, 20W European Power $27.00
Operating Systems
SL040-XON-00010 EMAC OE Linux 4.0 for x86 Free
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SC600-000-0010D Windows CE 6.0 Pro License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $25.00
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
