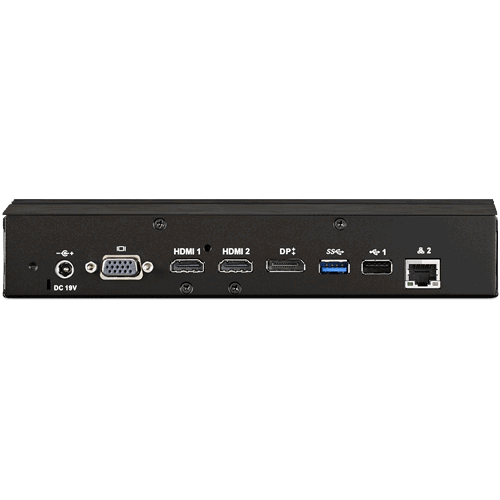

SIB-DS570


  • Intel® Celeron™ N2930/J1900 QC SoC
  • Up to 8GB total memory
  • 2x DDR3L SODIMM
  • 1x 2.5" SATA II HDD/SSD
  • 1x USB 3.0, 3x USB 2.0
  • 2x Gig LAN
  • 2x HDMI, 1x DP++, 1 x VGA

Receive consultation or quotes about this product from our sales staff.

Request a quote
Intel® Celeron® N2930/ J1900 Quad-Core™ SoC with Advanced (NVIDIA GeForce GT 730M) Graphics Digital Signage Platform

Features


  • Intel® Celeron™ N2930/J1900 QC SoC
  • Up to 8GB 2x DDR3L 204-pin SODIMM (up to 4GB per each SODIMM)
  • 1x 2.5" SATA II HDD/SSD (only support 7 mm height)
  • 2x 10/100/1000 Ethernet
  • 2x HDMI, 1x DP++, 1 x VGA
  • Consumer Electronic Control (CEC*) implemented on one of HDMI port
  • 3x USB 2.0, 1x USB 3.0
  • 2x Full Size Mini-PCIe interface
  • Supports simultaneous multi-display output (any 2,3 or 4 outputs)
  • 1x audio phone jack for Mic-in, 1x SPDIF/ Line-Out (support jack-sense via OS setting)
  • Content management software built-in for content editing, scheduling and remote monitoring functions
  • CPU N2930: Typical: 10.5W (w/o expansion) - Max.: 15.7W (w/o expansion) 19V DC-in (ATX/AT mode, default ATX)
  • CPU J1900: Typical: 9.7W (w/o expansion) Max: 22.6W (w/o expansion)
  • Low Power
  • Wide Temperature
  • Operating Temperature: 0 ~ 40° C (32 ~ 104° F) (w / HDD); 0° C~ 70° C (32 ~ 158° F) (w/extend temp. Memory & SSD)
  • Relative Humidity: 95% @ 40° C (non-condensing)
  • 220 x 44.2 x 150 mm

Overview


Intel® Celeron® N2930/ J1900 Quad-Core™ SoC with Advanced (NVIDIA GeForce GT 730M) Graphics Digital Signage Platform

Manuals
DS-570_User_Manual_Ed.2.PDF
Data Sheets
DS-570_DS.pdf

Specifications


Processor
CPU
Intel® Celeron™ N2930 Quad Core 1.86GHz or J1900 Quad Core
Clock Speed
2 GHz
Memory
RAM
8 GB
RAM Type
DDR3L 204-pin DIMM
Primary Flash
2x RS-232
Secondary Flash
2.5 inch SATA HDD/SSD
BIOS/ Bootloader
AMI uEFI 64 Mbit
Primary IO
Disk Interface
2.5 inch SATA HDD/SSD
Audio
1x audio phone jack for Mic-in
Video Out
2x HDMI, 1x DP++, 1x VGA
Ethernet
1 Gig Ethernet with 2x RJ-45
USB
3x USB 2.0, 1x USB 3.0
Serial Ports
2x RS-232
Secondary IO
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22, EMAC OE, Yocto, Qt, WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
8.66" ×1.75" ×5.9" (219mm × 44mm × 149mm)
Weight
1.7 kg
Power Requirements
Voltage
19 V
Power Misc.

CPU N2930: Typical: 10.5W (w/o expansion) - Max.: 15.7W (w/o expansion) 19V DC-in (ATX/AT mode, default ATX)

CPU J1900: Typical: 9.7W (w/o expansion) Max: 22.6W (w/o expansion)

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
95%
Environmental Misc.

Operating Temperature: 0 ~ 40° C (32 ~ 104° F) (w / HDD); 0° C~ 70° C (32 ~ 158° F) (w/extend temp. Memory & SSD)

Relative Humidity: 95% @ 40° C (non-condensing)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-DS570-B40-R DS-570GB-U4 J1900 2.0GHz DC, 2x COM, 1x USB3, 3x USB2, 2x Gig LAN, Audio, VGA, 2x HDMI, 1x DP++ $550.00
SIB-DS570-B80-R DS-570GB-S8, N2930 1.6 GHz QC, 2 GB RAM, 500GB HDD, 2x COM, 1x USB3, 3x USB2, 2x Gig LAN, Audio, VGA, 2xHDMI, 1xDP++ $660.00
SIB-DS570-F40-R DS-570GF-U4, J1900 2.0 GHz DC, 2GB RAM, 500GB HDD, 2x COM, 1x USB3, 3x USB2, 2x Gig LAN, Audio, VGA, 2xHDMI, 1xDP++ $650.00
SIB-DS570-F80-R DS-570GF-S8, N2930 1.6 GHz QC, 2 GB RAM, 500GB HDD, 2x COM, 1x USB3, 3x USB2, 2x Gig LAN, Audio, VGA, 2xHDMI, 1xDP++ $790.00

Peripheral Options


Product # Description Price
Cables & Adapters
CAB-80-030-R Power Cord $3.00
