SIB-A1122

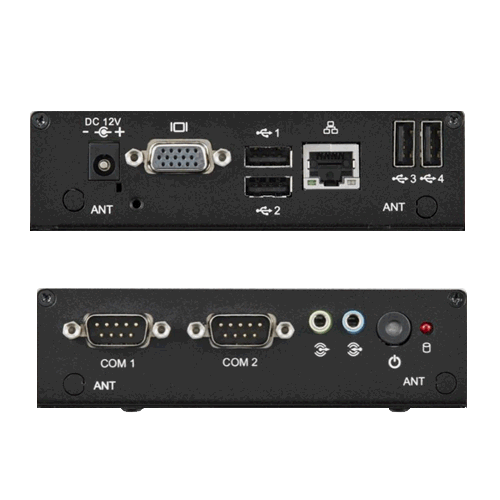

22Spi311SS55 The SIB-A1122 fanless Embedded Box Computer is an ideal, application-ready system platform solution. All electronics are protected in a compact, sealed, aluminum case for easy embedding in the customer’s own housing, or as a stand-alone application where space is limited and the environment harsh.
Features
- Please consider the SIB-A1123 for new product design.
- This product is being Phased out and is NRND
- Last time buy date is 3/31/2018
- Intel® Atom™ Dual Core N2800 1.86 GHz or Dual Core N2600 1.6 GHz Fanless Processor
- 4GB DD3 1066GHz SDRAM SODIMM
- Up to 2x RS-232, 2x RS-232/422/485
- Up to 4x USB 2.0 Ports
- Up to 2x 10/100/1000 Mbps Ethernet
- 2.5" SATA HDD/SSD/mSATA
- HDMI & VGA Video Output
- HD Audio Codec - Realtek ALC892, with Line-in, Line-out
- AMI 16 Mbit Flash BIOS
- Up to 1x half size Mini-PCIe & 1x full size Mini- PCIe (ARK-1122F only)
- Low Power
- AC to DC 12 V/3 A, 36 W
- Wide Temperature
- -20 ~ 60° C (With extended temperature SSD/mSATA devices)
- 0 ~ 40° C (With standard temperature HDD/SSD/mSATA devices)
- 95% @ 40°C (non-condensing) Relative Humidity
- 5.27" x 1.7" x 3.71" (94.2 x 133.8 x 43.1 mm)
Overview
The SIB-A1122 fanless Embedded Box Computer is an ideal, application-ready system platform solution. All electronics are protected in a compact, sealed, aluminum case for easy embedding in the customer’s own housing, or as a stand-alone application where space is limited and the environment harsh.
The solid, sealed aluminum case offers vibration and dust resistance while also providing a passive cooling solution. The SIB-A1122 provides system integrators with a turn-key solution and versatile application development path without breaking the bank or missing time-to-market deadlines.
SIB-A1122 is designed as a palm-size fanless embedded system and occupies only 133.8 x 43.1 x 94.2 mm (5.27" x 1.70" x 3.71"). The rugged, cast aluminum case not only provides great protection from EMI, shock/vibration, cold and heat, but also passive cooling for quiet, fanless operation. SIB-A1122 meets demands by offering up to 1 x VGA, 1 x HDMI, 2 x Giga LAN, 4 x USB 2.0 ports, and 4 x COM ports (by SKU); all packed into a compact rugged unit and powered by an Intel® Atom™ N2600/N2800 processor. SIB-A1122 also supports both 2.5” SATA HDD, mSATA and SSD for storage options (by SKU) even though it is a palm-size system. Besides, SIB-A1122 is a low-power-consumption system and it is powered by DC 12 V input. The SIB-A1122 provides for diversified application fields.
| Manuals | |
|---|---|
| ARK-1122 User Manual_ed.1-FINAL2.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| ARK-1122H_DS.pdf | Download (PDF) |
| ARK-1122F_DS.pdf | Download (PDF) |
| ARK-1122C_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ Dual Core Processor |
| Clock Speed | 1.86 GHz |
| Memory | |
|---|---|
| RAM Type | DDR3 1066GHz SDRAM SODIMM |
| Primary Flash | 2x RS-232 and 2x RS-232/422/485 |
| Secondary Flash | 2.5 Inch SATA HDD/SSD/mSATA |
| BIOS/ Bootloader | AMI BIOS |
| Memory Misc. | Up to 4GB DDR3 SODIMM |
| Primary IO | |
|---|---|
| Disk Interface | SATA & mSATA |
| Audio | HD Audio Codec - Realtek ALC892 |
| Video Out | HDMI & VGA |
| Ethernet | 10/100/1000 Mbps with Up to 2x RJ45 |
| USB | Up to 4x USB |
| Serial Ports | Up to 2x RS-232, 2x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Yocto, Qt, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.27" ×1.7" ×3.71" (133mm × 43mm × 94mm) |
| Weight | 455 g (1 lbs) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Typical Current | 3 A |
| Power Misc. | AC to DC 12 V/3 A, 36 W |
| Environmental | |
|---|---|
| Low Operating Temperature | -20 C (-4 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | 95% @ 40°C (non-condensing) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SIB-A1122-C00-R | ARK-1122C, Intel® Atom™ Dual Core N2600 1.6 GHz, 4x COM, 4x USB2, Gig-LAN, VGA | $391.00 |
| SIB-A1122-F00-R | ARK-1122F, Intel® Atom™ Dual Core N2800 1.86 GHz, 1xRS232, 3x USB2, 2x Gig-LAN, Audio, VGA & HDMI | $468.00 |
| SIB-A1122-H00-R | ARK-1122H, Intel® Atom™ Dual Core N2600 1.6 GHz, 1xRS232, 4x USB2, Gig-LAN, VGA & HDMI | $497.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-RAM-00130-A | 2GB, DDR3, SODIMM 204P PC3-8500 | Call |
| PER-RAM-00131-A | SODIMM 204P PC3-8500 DDR3 2GB industrial temperature (-40 to 80 C) | Call |
| PER-FLS-00091-R | mSATA Flash module 32GB MLC Std | Call |
| Cables & Adapters | ||
| CAB-80-020 | C5 US cord "Mickey Mouse" three round. | $8.00 |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
