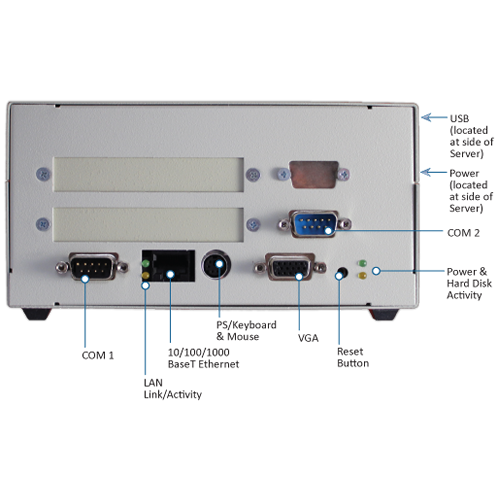

Server In a Box SIB-104G


  • AMD G-Series Single Core T16R processor + A55E
  • 1GB Onboard DDR3
  • 2x Intel GbE, 4x COM, 2x SATA & mSATA
  • Expansion: PC/104, mini PCIe, LPC connector for additional COM ports

Receive consultation or quotes about this product from our sales staff.

Request a quote

The EMAC Server-In-a-Box/104 (SIB/104G) is a  powerful embedded server with a small footprint and low cost. These SIBs utilizes the AMD G-series T16R CPU, a 615MHz fanless processor allowing it to run Linux, Windows Embedded Standard 7(WES7) and WES09 Operating Systems. Like the Best Embedded SIBs, the SIB/104G have no moving parts and feature a rugged enclosure design making it an ideal choice for most industrial applications.

Features


  • AMD G-Series Single Core T16R processor + A55E
  • 1GB SDRAM onboard
  • DirectX11 supported. 48-bit LVDS, VGA, 18-bit TTL (optional)
  • 2x Intel GbE, 4x COM, 2x SATA & mSATA
  • Expansion: PC/104, mini PCIe, LPC connector for additional COM ports

  • DDR3 SODIMM memory (optional)

  • Extended Temp -20 ~ 80° C (optional - call for details)
  • Industrial Temp -40 ~ 85° C (optional - call for details)

Overview

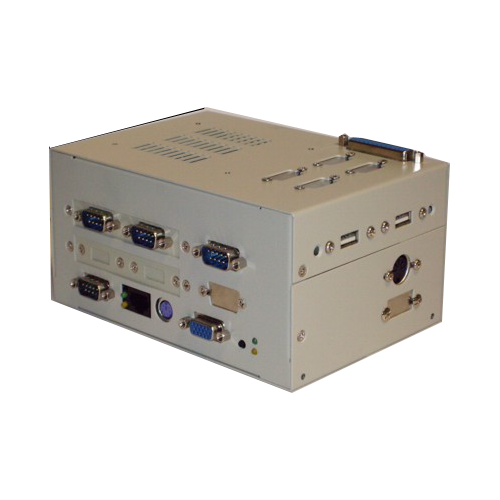

The EMAC Server-In-a-Box/104 (SIB/104G) is a  powerful embedded server with a small footprint and low cost. These SIBs utilizes the AMD G-series T16R CPU, a 615MHz fanless processor allowing it to run Linux, Windows Embedded Standard 7(WES7) and WES09 Operating Systems. Like the Best Embedded SIBs, the SIB/104G have no moving parts and feature a rugged enclosure design making it an ideal choice for most industrial applications. The SIB/104 and Deluxe SIB/104 are just as comfortable in a basement wiring closet as on a desktop.

Purchase an EMAC SIB/104G and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

Specifications


Processor
CPU
AMD G-Series Single Core T16R processor
Clock Speed
615 MHz
Memory
RAM Type
DDR3 Onboard
Primary Flash
mSATA
BIOS/ Bootloader
AMI 32-Mbit
Primary IO
GPIO
1x 8-bit GPIO
Disk Interface
2x SATA II, 1x Half-size mSATA
Audio
ALC892 Codex (Line-in/Line-out/Mic-in)
Video Out
VGA, LVDS
Ethernet
2x 10/100/1000 Mbps Realtek RTL8111E-VL-CG RJ-45 LAN2 on box wafer
USB
4x USB 2.0
Serial Ports
2x RS-232/422/485 with Auto RS-485, 2x RS-232
Secondary IO
PS/2
Yes
Expansion
Bus Misc.

Space to accommodate up to two PC/104 modules

Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
2.75" ×6.53" ×4.45" (69mm × 165mm × 113mm)
Weight
2 lb
Dimensions Misc.

Mounting: Desk/Wall mount

Power Requirements
Voltage
5 V
Power Misc.

Battery: Lithium 3 V / 210 mAH

Power Consumption (Typical) 1.48A @ 5V (7.4 W)

Power Supply Voltage: 5V ±5% (12V only for LCD and PC/104)

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
85%
Environmental Misc.

Standard Operation 0 ~ 60° C (32 ~ 140° F)

Optional Industrial temp= Operation -40 ~ 85° C (-40 ~ 185° F)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price

Peripheral Options


Product # Description Price
Peripherals
PER-FLS-00091-R mSATA Flash module 32GB MLC Std Call
Operating Systems
SL050-XON-x EMAC OE Linux 5.0 for x86 Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
