ROM-DB5901
- SMARC v2.0 CPU module board
- 4 kinds of display outputs, 18/24-bit LVDS or MIPI DSI, HDMI, DP
- 1x SATA/SATA-DOM, 2x RJ-45, 4x UART, 12x GPIO
- 3x PCIe by 1
- 2x MIPI-SCI2 interfaces for camera module
- Supports HD audio codec
- Supports +12V DC and lithium-ion battery power input

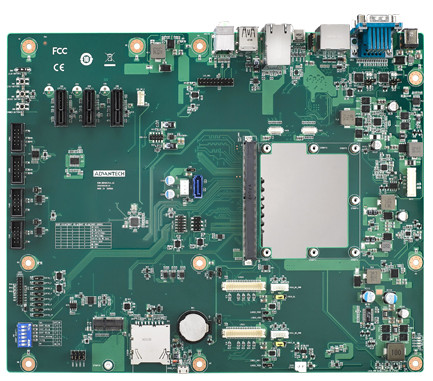

32rpi71143 The ROM-DB5901 is an evaluation carrier board designed for the SMARC v2.0 module. It is compatible with the ROM-5720, ROM-5620 and ROM-5721 SMARC modules and has a
multiple I/O interface for evaluation and development. It supports wide range operating temperatures, two power input interfaces, and two MIPI connectors for the camera module.
ROM-DB5901 is an ideal development board for mobile applications, such as portable devices, industrial tablets or HMI systems.
Features
- Supports SGeT SMARC v2.0 CPU module board
- 4 kinds of display outputs, 18/24-bit LVDS or MIPI DSI, HDMI, DP
- 1 x SATA/SATA-DOM, 2 x RJ-45, 1 x USB 3.0 Type C, 1 x USB 2.0 OTG, 1 x USB 3.0, 1 x USB 2.0, 2 x USB 2.0 Pin Headers, 2 x CAN bus, 4 x UART, 12 x GPIO
- 3 x PCIe by 1
- 2 x MIPI-SCI2 interfaces for camera module
- Supports HD audio codec
- Supports +12V DC and lithium-ion battery power input
Overview
The ROM-DB5901 is an evaluation carrier board designed for the SMARC v2.0 module. It is compatible with the ROM-5720, ROM-5620 and ROM-5721 SMARC modules and has a
multiple I/O interface for evaluation and development. It supports wide range operating temperatures, two power input interfaces, and two MIPI connectors for the camera module.
ROM-DB5901 is an ideal development board for mobile applications, such as portable devices, industrial tablets or HMI systems.
ROM-DB5901 is offered along with RISC SMARC carrier board design documents: carrier board design guide, layout, and schematic checklist, all ready for you to start your own
carrier board design. With ROM-DB5901, you will benefit from the power of RISC SMARC modules.
| Manuals |
|---|
| Data Sheets | |
|---|---|
| ROM-DB5901_DS.pdf | Download (PDF) |
| ROM-DB5900_DS.pdf | Download (PDF) |
Specifications
| Primary IO | |
|---|---|
| GPIO | 12x GPIO |
| SDIO | 1x |
| Disk Interface | 1x SATAIII, 1x SDIO |
| Audio | 1/8 Audio Jack (I2S HD Audio) |
| Video Out | HDMI, 2x LVDS, 2x MIPI DSI |
| Ethernet | 2x GbE LAN (2x RJ45) |
| USB | 1x USB 3.0 Type C, 2x USB 2.0, 1x USB 2.0 OTG |
| Serial Ports | 2x 4-wire RS232/422/485, 2x RS232 Pin Headers |
| Secondary IO | |
|---|---|
| CAN | 2x CAN 2.0B Ports |
| SPI | 1x SPI pin Header |
| I2C | 1x I2C pin header |
| Expansion | |
|---|---|
| Bus Expansion | 3x PCIe x1 |
| Bus Misc. | M.2 Key E connector (USB, SDIO, PCIe, I2S and UART) |
| Misc | |
|---|---|
| SOM Type | SODIMM Carrier Boards |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 12" ×9.6" (304mm × 243mm) |
| Power Requirements | |
|---|---|
| Power Misc. | 2 Power Inputs (+12V DC-Jack, Lithium-ion battery) |
| Environmental | |
|---|---|
| Low Operating Temperature | -40 C (-40 F) |
| High Operating Temperature | 85 C (185 F) |
| Upper Operating Humidity | 90% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| ROM-DB5901-SW | ROM-DB5901-SW 314-Pin SMARC 2.0 RISC Evaluation Development board | $289.00 |
