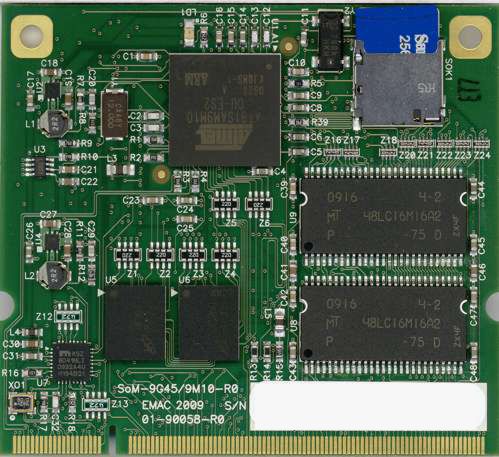

The SoM-9M10 is a System-on-Module (SoM) based on either the Atmel ARM9 AT91SAM9G45 or AT91SAM9M10 processor. This Fanless ARM9, 400 MHz SoM has an Ethernet PHY included along with 4 serial ports. It utilizes up to 256MB of external DDR2 / SDRAM, 1GB of NAND Flash and includes an MMU which allows it to run Linux Operating System. A SoM is a small embedded module that contains the core of a microprocessor system.
The SoM-DB4700 is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all ETX type SOMs.
The SoM-350ES is a compact, low-power SoM Carrier/Socket board with an optional 7” WVGA (800 x 480) or the 10" WSVGA (1024 X 600) color LCD and resistive touch screen.
COM-38021 COM-bPI6
- Intel® 3rd Generation Core™ i7 with QM77
- Gigabit LAN, 4x USB 3.0
- ECC DDR3, rapid shutdown, industrial temperature grade
- Triple independent display support

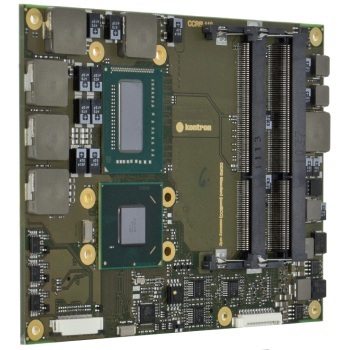

22kpi41133 This Computer-on-Module for COM Express® basic with 3rd Generation of Intel® Core(TM) Series. With support for Pin-out Type 2 and Type 6, This module covers both the need for latest interface technology and the need to extend life-time for existing baseboard designs. The 3rd Intel® Core Generation increases efficiency and performance per watt ratio which is a result of the innovative 22nm 3-D Tri-Gate. With USB 3.0, SATA 6Gb/s and PCI Express Gen 3, COMe-bIP6 offers incredible data transfer.
Features
- Intel® 3rd Generation Core™ i7 with QM77
- Gigabit LAN, 4x USB 3.0
- ECC DDR3, rapid shutdown, industrial temperature grade
- Triple independent display support
RXT products
- The RXT product line includes modules with following featureset:
- » industrial (-40 to +85°C) or extended (-25 to +75°C) grade temperature range by screening
- » ECC Memory support
- » Rapid Shutdown support
Processor:
- The 22nm Intel® 3rd Gen Core™ i7/i5/i3/Celeron® embedded (Ivy Bridge) CPU family with 31x24mm package size (FCBGA1023 socket) supports:
- » Intel® Turbo Boost Technology 2.01
- » Intel® 64
- » Intel® Virtualization Technology (VT-x)
- » Intel® Virtualization Technology for Directed I/O (VT-d)
- » AES New Instructions (AES-NI)
- » Intel® Hyper-Threading Technology
- » Enhanced Intel SpeedStep® Technology
- » Idle States (C-States)
- » Intel® Smart Cache
- » Thermal Monitoring Technologies
- » Intel® Fast Memory Access
- » Intel® Flex Memory Access
- » Integrated Intel® HD Graphics with Dynamic Frequency
- » Configurable Thermal Design Power (cTDP)
- Optional available (with customized BIOS):
- » Intel® vPRO™ Technology including:
- » Intel® Active Management Technology (AMT)
- » Intel® Trusted Execution Technology (TXT)
Chipset
- The 65nm Intel® 7-Series Platform Controller Hub Panther Point supports:
- » PCI Express Revision 2.0
- » PCI Express Configurations x1, x2, x4
Overview
This Computer-on-Module for COM Express® basic with 3rd Generation of Intel® Core(TM) Series. With support for Pin-out Type 2 and Type 6, This module covers both the need for latest interface technology and the need to extend life-time for existing baseboard designs. The 3rd Intel® Core Generation increases efficiency and performance per watt ratio which is a result of the innovative 22nm 3-D Tri-Gate. With USB 3.0, SATA 6Gb/s and PCI Express Gen 3, COMe-bIP6 offers incredible data transfer. Additionally, note the outstanding visual computing performance with up to 3 independent displays and support for DirectX® 11 and OCL 1.1.
| Manuals | |
|---|---|
| COMe-bIP6-Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| COM-38021-COMe-bIP6_datasheet.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel 3rd Generation Core i7/i5/i3/Celeron series |
| Clock Speed | 2.7 GHz |
| Processor Misc. | Embedded 3rd Generation Intel® Core™ i7/i5/i3/Celeron® processor + QM77
Intel® Mobile QM77 (Core™ i3, i5, i7), Intel® Mobile HM76 (Celeron®) |
| Memory | |
|---|---|
| RAM | Up to 8GB DDR3 memory onboard |
| Primary Flash | Up to 64GB eMMC onboard |
| BIOS/ Bootloader | AMI Aptio UEFI |
| Memory Misc. | RXT version has ECC memory |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | 2x SATA II & 2x SATAIII |
| Audio | Intel® High Defi nition Audio |
| Video Out | VGA, LVDS, 3xDDI |
| Ethernet | Intel® 82579LM Gigabit Ethernet |
| USB | 4x USB 3.0 & 8x USB 2.0 |
| Serial Ports | 2x COM (2-Wire) |
| Secondary IO | |
|---|---|
| Expansion | |
|---|---|
| Bus Expansion | COM Express Basic Type 6 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 |
| SOM Type | COM Express Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.92" ×3.74" (124mm × 94mm) |
| Dimensions Misc. | Dimensions (H x W) 125 x 95 mm |
| Power Requirements | |
|---|---|
| Power Misc. | 8.5V – 20V Wide Range, Single Supply Power Power Management ACPI 4.0, S5 Eco |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Environmental Misc. | Commercial temperature: 0°C to +60°C operating, -30°C to +85°C non-operating
Extended temperature: -25°C to +75°C operating, -30°C to +85°C non-operating
Industrial temperature(RXT versions): -40°C to +85°C operating, -40°C to +85°C non-operating |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| COM-38014-021-8 | 38014-0000-21-8, COMe-bIP6, COMe-T6, i7-3612QE 4x2.10GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-014-1 | 38021-0000-14-1, COMe-bIP6, COMe-T6, 1047UE 2x1.40GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-015-0 | 38021-0000-15-0, COMe-bIP6, COMe-T6, 927UE 1x1.50GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-016-2 | 38021-0000-16-2, COMe-bIP6, COMe-T6, i3-3217UE 2x1.6GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-017-2 | 38021-0000-17-2, COMe-bIP6, COMe-T6, i7-3517UE 2x1.7GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-021-4 | 38021-0000-21-4, COMe-bIP6, COMe-T6, i7-3612QE 4x2.1GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-022-1 | 38021-0000-22-1, COMe-bIP6, COMe-T6, 1020E 2x2.20GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-023-4 | 38021-0000-23-4, COMe-bIP6, COMe-T6, i7-3615QE 4x2.3GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-024-2 | 38021-0000-24-2, COMe-bIP6, COMe-T6, i3-3120ME 2x2.4GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-025-2 | 38021-0000-25-2, COMe-bIP6, COMe-T6, i7-3555LE 2x2.5GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-027-2 | 38021-0000-27-2, COMe-bIP6, COMe-T6, i5-3610ME 2x2.7GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS | Call |
| COM-38021-X17-2 | 38021-0000-17-2EXT, COMe-bIP6, COMe-T6, i7-3517UE 2x1.7GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS (-25 ~ 75C) | Call |
| COM-38021-X21-4 | 38021-0000-21-4EXT, COMe-bIP6, COMe-T6, i7-3612QE 4x2.1GHz, 2x COM, 2xUSB3, 6xUSB2, GbE, 3x DDI, VGA, LVDS (-25 ~ 75C) | Call |
Carrier Board Options
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FAN-00122-R | Heatspreader for COMe-bSC# and COMe-bIP#, threaded mounting holes (for CPU's <20W) | $33.00 |
| PER-FAN-00123-R | Heatspreader for COMe-bSC# and COMe-bIP#, through holes (for CPU's <20W) | $33.00 |
| PER-FAN-00124-R | Heatspreader with heatpipe for COMe-bSC# and COMe-bIP#, threaded mounting holes (for CPU's >20W) | $45.00 |
| PER-FAN-00125-R | Heatspreader with heatpipe for COMe-bSC# and COMe-bIP#, through holes (for CPU's >20W) | $45.00 |
| PER-FAN-00126-R | Active cooling solution with aluminium setscrew for COMe-bSC# and COMe-bIP#, threaded mounting holes | $95.00 |
| PER-FAN-00127-R | Passive cooling solution with aluminium setscrew for COMe-bSC# and COMe-bIP#, threaded mounting holes | $68.00 |
| PER-FAN-00128-R | COM Express® Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's <20W) | $29.00 |
| PER-HDW-00002-R | COMe Mount Kit 8mm 1set (screws) | $7.00 |
| PER-HDW-00003-R | COMe Mount Kit 5mm 1set (screws) | $7.00 |
