PCM-9340

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

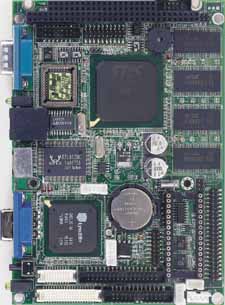

The new PCM-9340 is a 3.5” Half-EBX SBC with an on-board, embedded low power 133 MHz STPC Elite processor. Other on-board features include a VGA/LCD controller with 36-bit LCD TFT display and 10/100 Mbps PCI Ethernet interface. A PC/104 expansion connector is provided, as is optional SSD support for DOC 2000. 62 level watchdog timer and jumperless on-line setup is also supported.

Features

  • On-board 133 MHz STPC Elite processor (fanless)
  • On-board 32MB SDRAM
  • On-board VGA/LCD display controller and 36-bit LCD TFT display
  • 62-level watchdog timer, jumperless on-line setup sup-ported
  • Supports wake on LAN, wake on ring (modem)
  • Optional audio, SODIMM socket
  • Supports CMOS data backup functions

Overview

The new PCM-9340 is a 3.5” Half-EBX SBC with an on-board, embedded low power 133 MHz STPC Elite processor. Other on-board features include a VGA/LCD controller with 36-bit LCD TFT display and 10/100 Mbps PCI Ethernet interface. A PC/104 expansion connector is provided, as is optional SSD support for DOC 2000. 62 level watchdog timer and jumperless on-line setup is also supported.

With this board, system engineers can upgrade from 386-based to 486-based systems or from a 486 system using EDO RAM to a 486-based systems using SDRAM. A 486 level STPC Elite processor is mounted directly on board, thus simplifying configuration and installation as no jumpers for speed or Voltage must be set. In addition to ease of configuration, the STPC Elite 133 MHz low-power CPU has been specially designed to work well in environments with temperatures of up to 60°C without need of a fan. Eliminating the CPU fan from a system significantly increases both MTBF and application possibilities.

Specifications

Processor
CPU
Embedded low power STPC Elite
Clock Speed
133 MHz
Processor Misc.

Chipset: STPC Elite 133 (on-chip)
Memory
RAM
Up to 64MB optional SDRAM SODIMM
Primary Flash
DiskOnChip 2000
BIOS/ Bootloader
2Mbit Flash BIOS supports Plug & Play APM
Primary IO
Disk Interface
1x FDD, 1x EIDE
Ethernet
IEEE 802.3u 100Base-T RJ-45 RTL8139C
Serial Ports
3x RS-232, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • IR port: One 115 kbps IrDA compliant serial infrared

Display

  • Video Chipset: SMI LynxEM+ 712
  • Display memory: 2 MB on the chip
  • Display type: Simultaneous support for VGA and 36-bit TFT LCD display (supports 3.3 V LCD) Supports 3, 9,12,18, 24, 36-bit TFT and 16 or 24-bit DSTN Panel
  • Resolution:
    • CRT Modes:
      • 1280 x 1024@16bpp (60Hz)
      • 1024 x 768@16bpp (85Hz)
      • 800 x 600 @24bpp(85Hz)
    • LCD/Simultaneous Modes:
      • 1280 x 1024@16bpp (60Hz)
      • 1024 x 768@16bpp (60Hz)
      • 800 x 600 @24bpp(60Hz)
Secondary IO
PS/2
Yes
Display
Display Type
Simultaneous support for VGA and 36-bit TFT LCD display (supports 3.3 V LCD) Supports 3/9/2/18/24/36-bit TFT and 16 or 24-bit DSTN Panel
Chipset
SMI LynxEM+ 712
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, FreeRTOS

Mechanical and Environmental

Dimensions
Size
4" ×5.75" (101mm × 146mm)
Weight
0.23 kg
Power Requirements
Typical Voltage
5 V
Typical Current
1.62 A
Max Boot Current
2 A
Power Misc.

Power management: Supports APM
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Environmental Misc.

Wide-temp Version: -20° to 80° C
Related Products
VSX-6127, VDX-6327

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9340F 486 Elite W/ 32 MB RAM, LCD/CRT, LAN, & 4 COMS Call
PCM-9340FZ Wide temp version of PCM-9340F (min. order quantity: 30) Call
