MIO-2263 P-ITX
- Embedded Intel® Atom™ E3825 Dual Core or Celeron J1900 Quad Core
- Up to 8GB DDR3 SODIMM
- 1x RS-232 & 1x RS-232/422/485/
- 4x USB 2.0 Ports & 1x USB 3.0 Port
- Gigabit Ethernet
- VGA, HDMI & LVDS
22Mpi711MM55
22Mpi111MM55 MIO-2263 is a MI/O-Ultra SBC (Single Board Computer) with Embedded Intel® Atom™ SoC J1900 2.0 GHz and E3825 1.33 GHz Processor. The MIO-2263 can support DDR3L memory up to 8 GB, has one USB 3.0 and 3 USB2.0 compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA or HDMI support, HD (High Definition) audio, and one half size mini-PCIe and MIOe expansion slot. In addition, MIO-2263 also supports one SATA drive, two COM ports, SMBus, one GPIO and one half size mSATA slot. The innovative MI/O (multiple I/O) Extension SBC is equipped with flexible multiple I/O to assist integrators in developing optimized solutions.
Features
- Embedded Intel® Atom™ SoC E3825 Dual Core 1.33GHz & Celeron J1900 Quad Core 2GHz
- Up to 8GB DDR3L 1333MHz for J1900, 1066 MHz for E3825
- 1x RS-232 / 1x RS-232/422/485

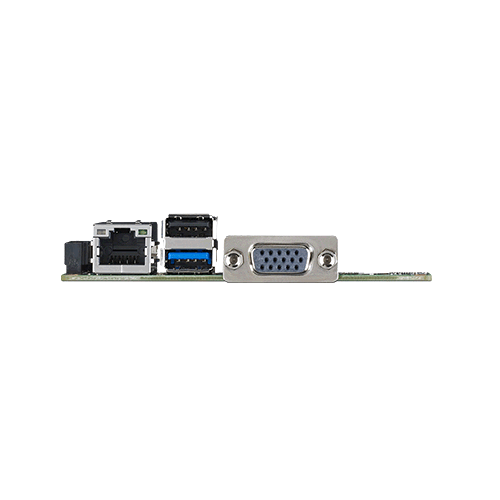

- 2x Internal USB 2.0 Ports, 2x Rear I/O Ports at Coastline (1x USB 2.0 + 1x USB 3.0)
- 10/100/1000 Mbps LAN
- Intel Gen 7 DirectX®11.1 support, dual independent display by 24-bit LVDS + VGA or 24-bit LVDS + HDMI
- 1x mSATA by mini-PCIe socket
- 1x SATAII (Max. Data transfer Rate 300 MB/s)
- 1x MIOe connector: supports 2 x USB 2.0, 2 x PCIe x1, LPC, HD Audio lineout, SMBus, DP (or HDMI, supported by request), 5 Vsb/12 Vsb power
- VGA: 1920 x 1200 / LVDS: 18/24-bit LVDS1, up to 1440 x 900 / HDMI: 1920 x 1080
- AMI EFI 64 Mbit Flash BIOS via SPI
- Watchdog Timer: Single chip Watchdog 255-level interval timer, setup by software
- Power Consumption: Typical in Windows 8 Idle Mode: J1900: 0.85 A @ 12 V (10.2 W) E3825: 0.59 A @ 12 V (7.08 W)
- Operating Temperature: 0 ~ 60 °C (32~140 °F)
- Operating Humidity: 40 °C @ 95% RH Non-Condensing
- Dimensions: 100 x 72 x 33.63 mm (3.9" x 2.8")
Overview
MIO-2263 is a MI/O-Ultra SBC (Single Board Computer) with Embedded Intel® Atom™ SoC J1900 2.0 GHz and E3825 1.33 GHz Processor. The MIO-2263 can support DDR3L memory up to 8 GB, has one USB 3.0 and 3 USB2.0 compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA or HDMI support, HD (High Definition) audio, and one half size mini-PCIe and MIOe expansion slot. In addition, MIO-2263 also supports one SATA drive, two COM ports, SMBus, one GPIO and one half size mSATA slot. The innovative MI/O (multiple I/O) Extension SBC is equipped with flexible multiple I/O to assist integrators in developing optimized solutions.
| Manuals | |
|---|---|
| MIO-2263_User_Manual_ed.3-FINAL.pdf | Download (PDF) |
| MIO-2263_Startup_Manual_Ed.2-FINAL.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| MIO-2263_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ E3825 or Celeron J1900 |
| Clock Speed | 2 GHz |
| Memory | |
|---|---|
| RAM | Up to 8 GB DDR3L |
| Primary Flash | 2x SATA SSD/HDD |
| Secondary Flash | 1x mSATA |
| BIOS/ Bootloader | AMI EFI BIOS |
| Memory Misc. | Up to 8 GB DDR3L 1333 MHz for J1900
|
| Primary IO | |
|---|---|
| GPIO | 8-bit GPIO |
| Disk Interface | 1x SATA II / 1x mSATA |
| Audio | Audio (HD) Line-in Line-out |
| Video Out | VGA/HDMI/LVDS |
| Ethernet | 10/100/1000 Mbps |
| USB | 4x USB 2.0 Ports (1x 3.0 Port) |
| Serial Ports | 1x RS-232 / 1x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | Intel® Atom™ SoC J1900/ E3825 |
| CRT-VGA Interface | Up to 2560 x 1600 at 60Hz |
| LVDS Interface | Supports single channel 24-bit LVDS Resolution: 1440 x 900 at 60Hz |
| HDMI/DVI Interface | Up to 1920 x 1080 at 60 Hz |
| Multi-Display | Yes (VGA+LVDS or HDMI+LVDS) |
| Expansion | |
|---|---|
| Bus Expansion | 1x half size mini-PCIe slot / MIOe |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.9" ×2.8" (99mm × 71mm) |
| Weight | 0.46 kg |
| Dimensions Misc. | Dimensions (L x W) 100 x 72 mm (3.9" x 2.8")
Weight 0.46 kg (1.01 lb), weight of total package
Total Height 33.63 mm |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| MIO-2263E-S3A1E | Pico-ITX, MIO-2263E, E3825 DC, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, VGA ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | Call |
| MIO-2263EZ-2GS3A1E | Pico-ITX, MIO-2263E-WT, E3825 DC, 2GB RAM, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, VGA (-20-80)z ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | Call |
| MIO-2263EZ22GS3A1E | Pico-ITX, MIO-2263E-IT, E3825 DC, 2GB RAM, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, VGA (-40-85) ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | Call |
| MIO-2263J-U0A1E | Pico-ITX, MIO-2263J, J1900 QC, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, VGA ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | Call |
| MIO-2263JH-U0A1E | Pico-ITX, MIO-2263JH, J1900 QC, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, HDMI ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Memory | ||
| PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
| PER-RAM-00165 | 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
