PCM-3341

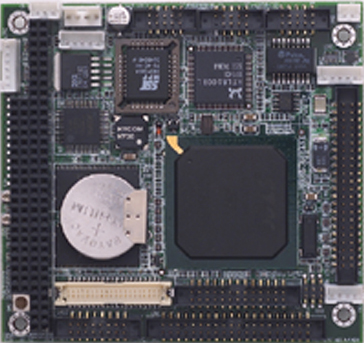

15ppi111PP33 EMAC's PCM-3341 PC/104 module has all the functions and of a standard full-size PC, but in the form factor of an industry standard PC/104 (3.5 x 3.8 in., 90 x 96 mm.) module. This makes it one of the smallest, most complete x86 SBCs on the market.
Features
- On-board 133MHz STPC Fanless Atlas processor
- On-board VGA/LCD display controller
- On-board memory 64 MB
- 2 USB 1.1 ports
- 62-level watchdog timer
- Supports 10/100Base-T Ethernet
Overview
EMAC's PCM-3341 PC/104 module has all the functions and of a standard full-size PC, but in the form factor of an industry standard PC/104 (3.5 x 3.8 in., 90 x 96 mm.) module. This makes it one of the smallest, most complete x86 SBCs on the market.
Even though this Fanless module is so small, it still contains everything that a full-fledged computer does. This 486 based PC/104 CPU module has an on-board Video/LCD controller as well as 10/100Base-T Ethernet capability. The on-board LCD controller supports 36-bit video and has 4 MB display memory on chip. These features give our customers a complete, cost-effective board solution for applications that require network and Video or LCD panel support in a limited space environment.
This module supports Watchdog timer protection. In addition it come equipped with 64 MB memory on board, four serial ports, two USB ports and one parallel port This board also supports one CompactFlash™ card to be used in place of or in conjunction with a hard drive. EMAC provides several size options for CompactFlash™ cards up to over a Gigabyte of storage. Its on-board CPU is an STPC Atlas 133Mhz from ST Microelectronics.
Specifications
| Processor | |
|---|---|
| CPU | ST Fannless ATLAS |
| Clock Speed | 133 MHz |
| Memory | |
|---|---|
| RAM | Up to 64MB SDRAM On-board |
| Primary Flash | 1x CompactFlash™ card Type I |
| BIOS/ Bootloader | AWARD 256KB Flash BIOS |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | 1x EIDE (DMA 33) |
| Ethernet | Realtek RTL8100BL IEEE 802.3U 100Base-T |
| USB | 2x USB 1.1 compliant |
| Serial Ports | 1x Parallel, 3x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Display | |
|---|---|
| Chipset | STPC Atlas on-chip video supports CRT and 18-bit TFT LCD Panel |
| Resolution | CRT up to 1280 x 1024/LCD up to 1024 x 1024 |
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, FreeRTOS |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.8" ×3.5" (96mm × 88mm) |
| Weight | 0.85 kg |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Voltage | 5 V |
| Typical Current | 1.6 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Environmental Misc. | Wide-temp Version: -20° to 80° C |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-3341F | Atlas 133 MHZ, 64MB, LCD, USB & LAN | Call |
| PCM-3341Z | Wide temp version OF PCM-3341F | Call |
